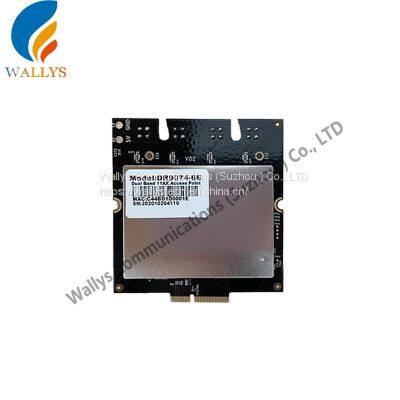

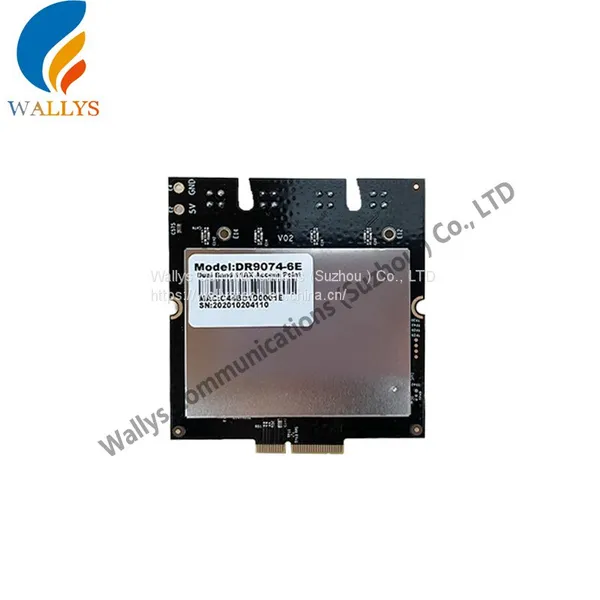

DR9074-6E(PN02.7)

QCN9074 802.11ax 4x4 MU-MIMO 6GHz wifi6E

QCN9074 11ax 4x4 6G M.2

Features

■ Qualcomm Atheros QCN9074

■ 6GHz, max 23dBm per chain, up to 4949Mbps

■ Single Band 6GHz 4x4 WiFi 6E (802.11ax)

■ 4 spatial streams (4SS)

■ M.2 E Key Interface

■ PCI Express 3.0 Interface

Absolute Maximum Rating




Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	ºC
Storage Temperature Range	-40 to 90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I²C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key

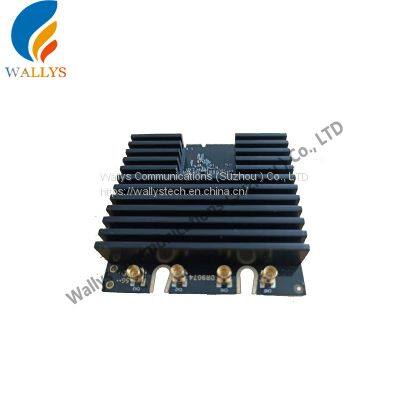

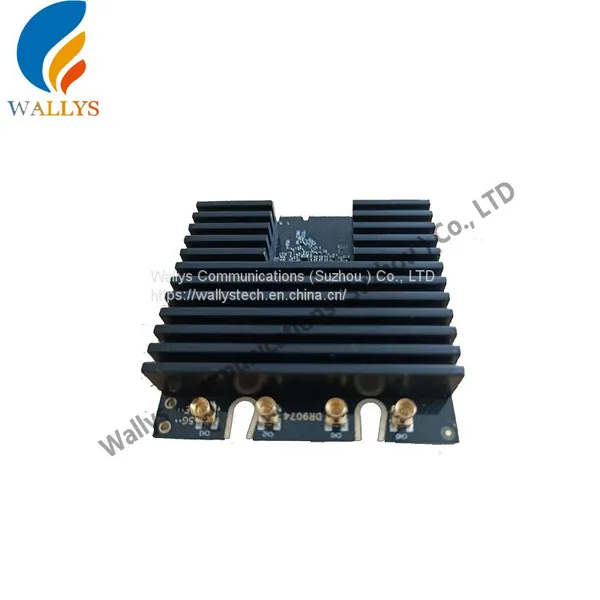

Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	5.925GHz-7.125GHz
Data Rates for WALN	6GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN	Support 20/40/80/160MHz at 6GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN02.7
Dimensions (WxHxD)	57mm x 63mm x 6mm







M.2 Pin Definitions










Pin No.	Name	Pin No.	Name
1	GND	2	VDD3P3_PCIE
3		4	VDD3P3_PCIE
5		6	PCIE_LED0
7	GND	8	GPIO46_WCI2_UART_TXD_PCIE
9	TP19	10	GPIO47_WCI2_UART_RXD_PCIE
11		12
13		14
15	VDD_XPA_PCIE	16	PCIE_LED1
17	VDD_XPA_PCIE	18	GND
19	VDD_XPA_PCIE	20
21	VDD_XPA_PCIE	22
23	VDD_XPA_PCIE
33	GND	32
35	PCIE0_RX0_P	34
37	PCIE0_RX0_N	36
39	GND	38	MOD_BT_STS_2
41	PCIE0_TX0_P	40	MOD_WL_ACT_2
43	PCIE0_TX0_N	42	PINE_BT_ACT_2
45	GND	44	MOD_BT_STS
47	PCIE0_REFCLK_P	46	MOD_WL_ACT
49	PCIE0_REFCLK_N	48	PINE_BT_ACT
51	GND	50
53	PCIE0_CLKREQ_3P3_N	52	PCIE0_PERST_3P3
55	PCIE0_WAKE_3P3_N	54
57	GND	56
59	PCIE0_RX1_P	58
61	PCIE0_RX1_N	60
63	GND	62
65	PCIE0_TX1_P	64
67	PCIE0_TX1_N	66
69	GND	68
71		70
73		72	VDD3P3_PCIE
75	GND	74	VDD3P3_PCIE
