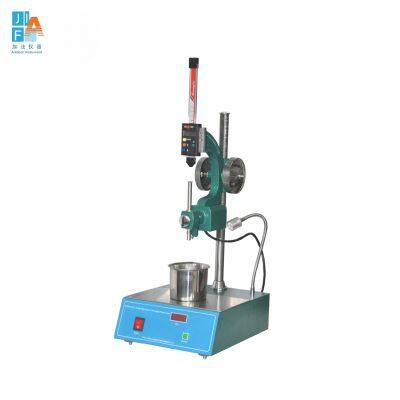

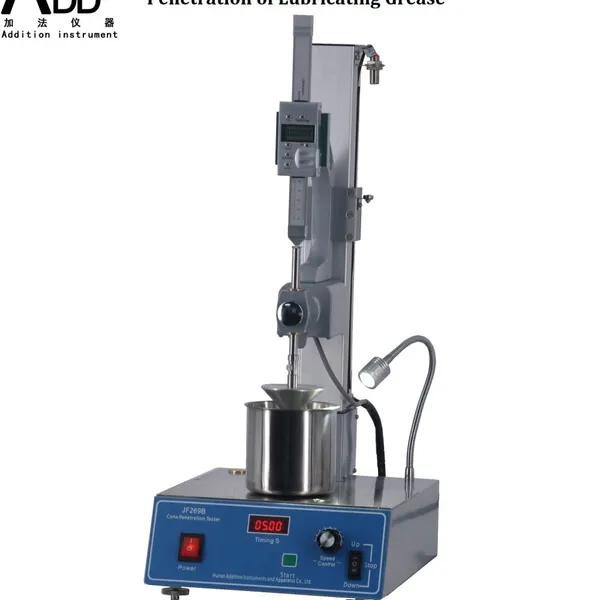

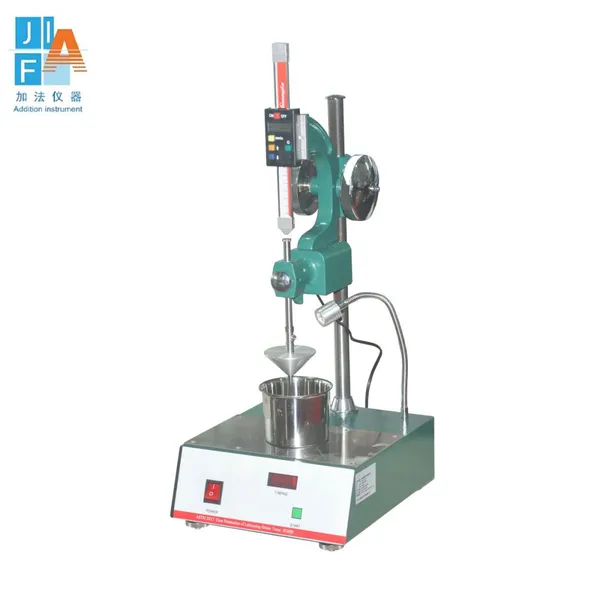

ASTM D217 ADDITION Needle and Cone Penetration Greases And Waxes Tester

Needle and Cone Penetration Tester

Product model: JF4985B

Product Introduction

This instrument is the empirical estimation of the consistency of waxes derived from petroleum by measurement of the extent of penetration of a standard needle. This instrument is applicable to waxes having a penetration of not greater than 250.

This instrument is measuring the consistency of lubricating greases and petroleum grease (Vaseline) by the penetration of a cone of specified dimensions, mass, and finish.

Technical Parameter

1. Applicable standards: ASTM D217,  ASTM D1321

2. Measuring range: 0～620 cone penetration

3. Standard cone: 102.5±0.05g

4. Release time: 0～60s

5. Time control: Automatic

6. Standard Needle mass: 2.5 g±0.05 g

7. Slider mass: 47.5±0.05g

8. Working power supply: AC220/240V, 50/60Hz

9. Power of the whole machine: 500W

10. HS Code: 9027899090

Main Feature

1. Integrated structure, operating easily.

2. The cone and needle meets the standard requirements.

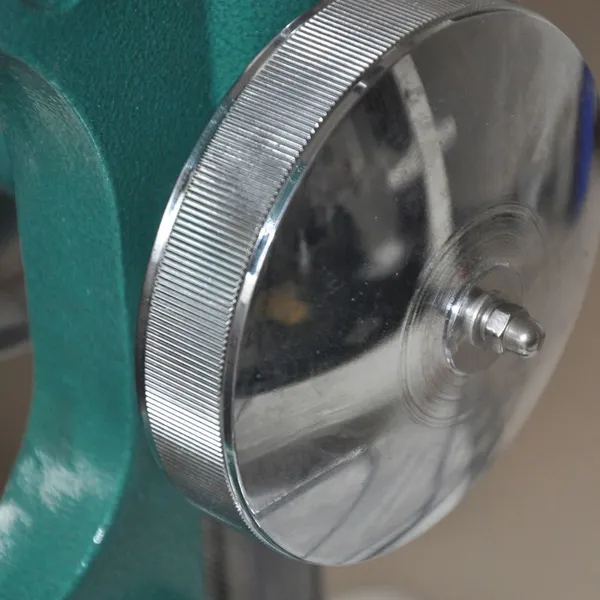

3. The instrument includes an electric head and a manual gear, which can adjust the position of the cone and plate on the sample:

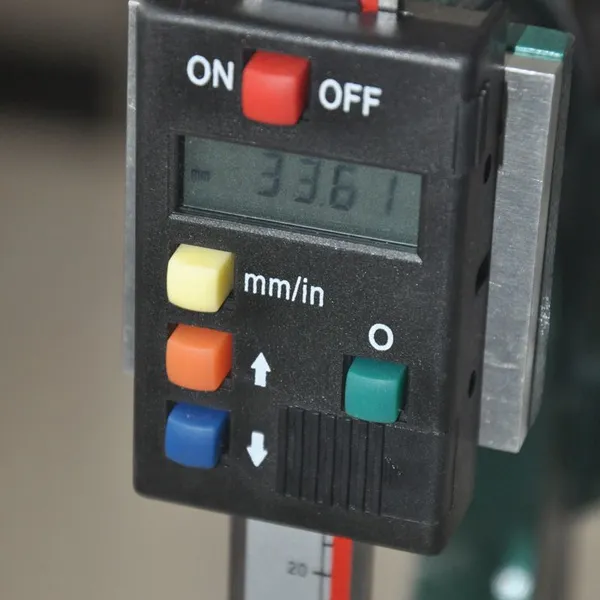

4. Digital display results, independent electronic timer;

5. In addition, a temperature-controlled water bath can be selected, and the penetration test can be performed in water at 25°C or other temperatures through the connection tank and the conversion plate;

6. Solid flat aluminum plate and central equipment, spirit level and positioning screws;

7. The range of motion of the decoder and the penetration of 50mm;

8. Electronic programming timer can set the penetration time;

9. The probe conforms to ASTM/IP, with a total weight of 2.5 g;

10. 1 brass sample former, inner diameter 25.4mm, height 31.8mm, wall thickness 3.2mm.
