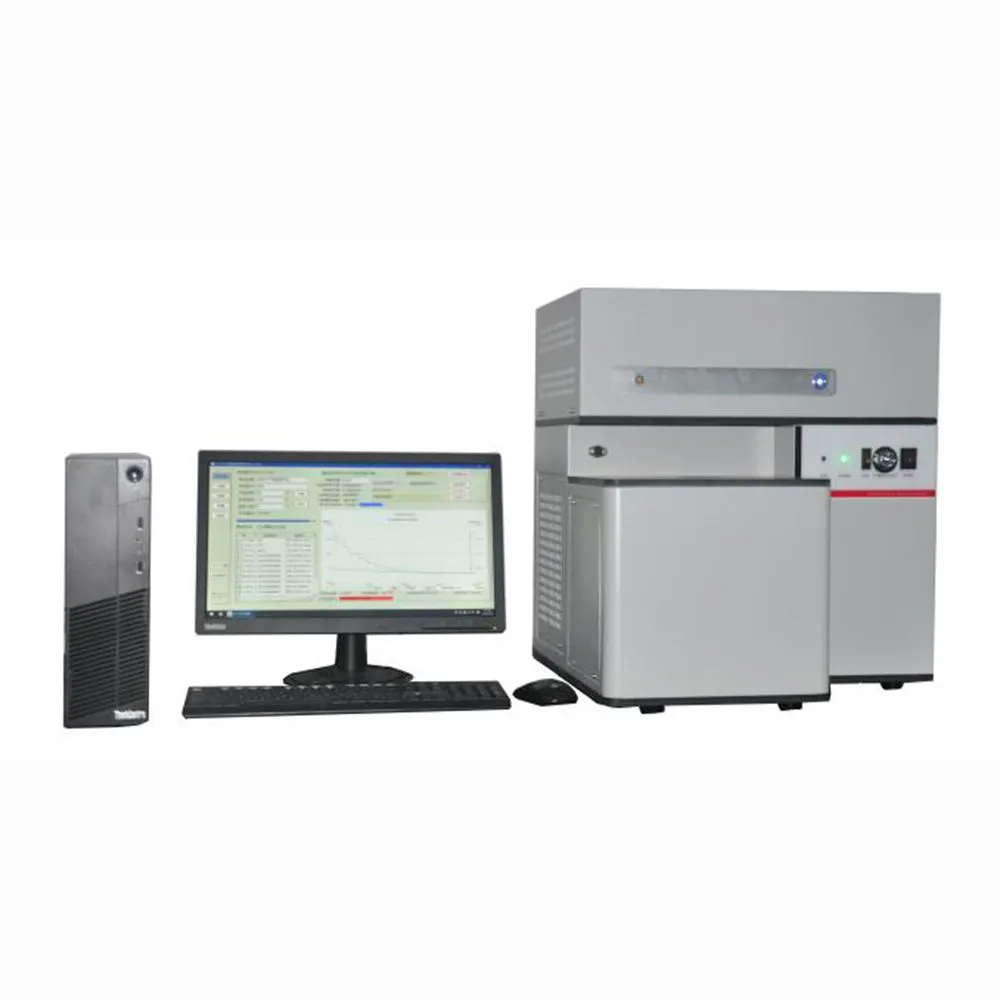

Automatic Electrolyte Conductivity Tester
Product model: JF11007Z
Product Introduction
This instrument is suitable for measuring the conductivity of electrolyte.
Technical Parameter
1. Applicable Standards: GB/T 11007
2. Temperature Measurement Range: -45℃～100℃
3. Resolution (Measurement): 0.001℃
4. Control Accuracy: ±0.05℃
5. Maximum Temperature Difference (Between Measurement Bits):
6. Sensor Type: Platinum
7. Conductivity Measurement Range: 0.1～1000μs/cm
8. Resolution: 0.01μs/cm
9. Environmental Requirements: 5℃～45℃
10. Humidity:
11. Instrument Size: 60 *60*70CM
12. Weight: 42kg
13. HS Code: 9027899090
Main Feature
1. Special control software, using EIS scanning method, high accuracy of determination, easy and fast operation;
2. Determine the conductivity of the electrolyte at a specific temperature, and can generate the trend graph of the change of this electrolyte at each temperature.
3. The computer software can control the whole testing process, record the relevant parameters and draw the temperature-conductivity curve of the sample.
4. While testing, the computer software will automatically measure the current conductivity of the electrolyte and synchronously record the current bath measurement temperature value and sample measurement temperature value. It also controls the bath setting temperature and sample setting temperature according to the set parameters of start temperature, end temperature and temperature step, and records the current conductivity value of the electrolyte when the sample measuring temperature meets the requirements. Generate CSV format file after the test is completed.
5. Automatic measurement, automatic temperature control, automatic temperature calibration, automatic conductivity calibration and other operations of the instrument.
6. Measure the AC impedance of the electrolyte and calculate the conductivity of the electrolyte at that temperature.
