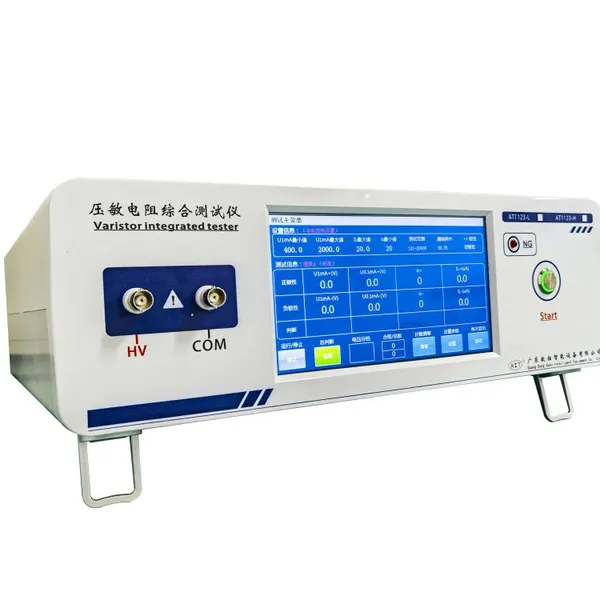

Voltage-Dependent Resistor tester of multi function
Type：AT1186-(Voltage class)-MOV
Parameters：
Starting operation voltage |
60V〜2000V |
400V-6000V |
Leakage current @0.75U1mA,0.83U1mA |
0〜199μA |
0〜199μA |
Pressure ratio /α |
α=1/（Log Un∕Un0.1） |
α=1/（Log Un∕Un0.1） |
|
Current criterion |
1mA |
1mA |
Polarity |
Positive / Negative |
Positive / Negative |
Control method |
4" Touching screen or upper-computer software control |
4" Touching screen or upper-computer software control |
Test results display |
Touching screen |
Touching screen |
Test accuracy |
±2% |
±2% |
Test results criterion |
Upper and lower limit setting qualified range |
Upper and lower limit setting qualified range |
Test results display |
Good or Not good shown on touching screen |
Good or Not good shown on touching screen |
Data record |
upper computer software control |
upper computer software control |
Test wires |
Test pen & clip |
Test pen & clip |
Data port |
RS232 |
RS232 |
Signal port |
6-coil circular connectors used in aircraft |
6-coil circular connectors used in aircraft |
Communication protocol |
Modbus-RTU |
Modbus-RTU |
Equipment size |
L×W×H=500mm×510mm×180mm |
L×W×H=500mm×510mm×180mm |
Environment requirement:
◎ Working supply: AC220V 50/60Hz
◎ Environment Temperature & humidity: 0 ~ 40℃
& 45 ~ 85%
