Integrated Tansformer Tester

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WUHAN HUADIAN HIGH-TECH		Place of Origin	China
Model Number	BRS-H

Product Description

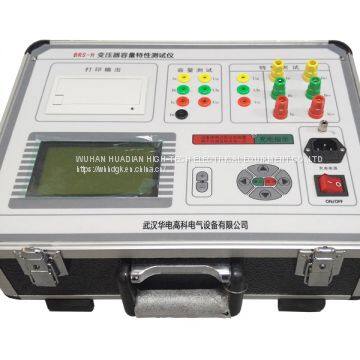

Integrated Tansformer Tester

Brief introduction

BRS-H integrated transformer tester is a high precision instrument used for transformer capacity, no load, on load ect characteristic test. It is muti-function and equal to two testers.

Product features

◆Can test transformer no load current, no load loss, short circuit voltage, short circuit(load) loss.

◆This instrument can automatically determine the wiring connection is right when test no load and on load three phase transformer, also can display vector diagram of three phase voltage,current.

◆Single machine can complete on-load test under the full current of distribution transformer <1000KVA. Under 1/3 rated current it can complete on load test of distribution transformer <3150KVA(under 1/3 rated current, this instrument can count the on load loss parameters under rated current ).

Product parameters

Environment Condition	Temperature: -5℃~40℃	Measurement Range	Capacity: 30kVA~65000kVA
	Relative humidity: <90%		Voltage: 0~700V, automatically switch measurement range internally
	Altitude: <2500m		Current: 0~100A, automatically switch measurement range internally
	External disturbance: no special strong vibration, no special strong electromagnetic field		Frequency: 45Hz~65Hz
	External power supply: 220V±10%, 45Hz~55Hz
Measurement accuracy	Voltage: 0~100V, ±0.2%FS; 100~700V, ±0.2%
	Current: 0~10A, ±0.2%FS; 10~100A, ±0.2% Power: ±0.5%(CosØ>0.1), ±1.0%(0.02
