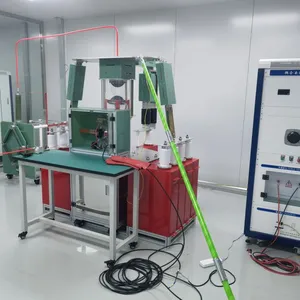

8/20μs Lightning strike simulator test platform
Type： AT3181-（Ipeak）-D-S
The below parameter can be customized according to customer's requirement.
|
Output current wave |
8/20μs |
|
Wavefront T1 |
8μs±10% |
|
Wavetail half-peak Time/T2 |
20μs±10% |
|
Reverse polarity oscillation |
≤20% |
|
Curret peak / Ipeak |
40kA〜250kA |
|
Polarity |
Positive / Negative |
|
Trigger angle |
0°〜360° |
|
Charging voltage |
＜75kV |
Configuration:
◎ 10”touching screen & intelligent interface
◎ Decoupling network or operating duty test cabinet of customized capacitor
◎ Skysight Oscilloscoppe, Rogowski coil acquistion current, voltage divider acquistion voltage
◎ Automatic measurement software
◎ Safety door system, automatic connecting ground protection, automatic discharge protection, manual safety discharge protection
◎ Graphite ball-gap discharge, double-layer soundproof shade
Environment requirement:
◎ Working supply: 3 phase, AC220V 50KW
◎ Pressure proof: AC 1.5kv, 50HZ 1 min
◎ Environment Temperature & humidity: 0 ~ + 40℃ ≤85% RH
◎ Connecting ground device
