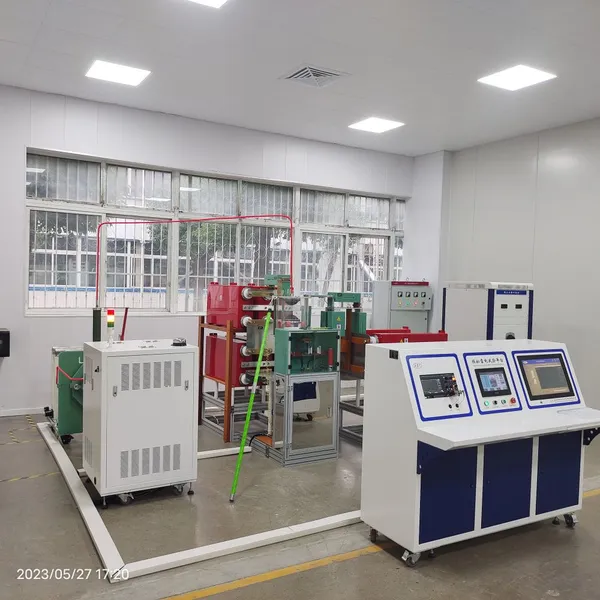

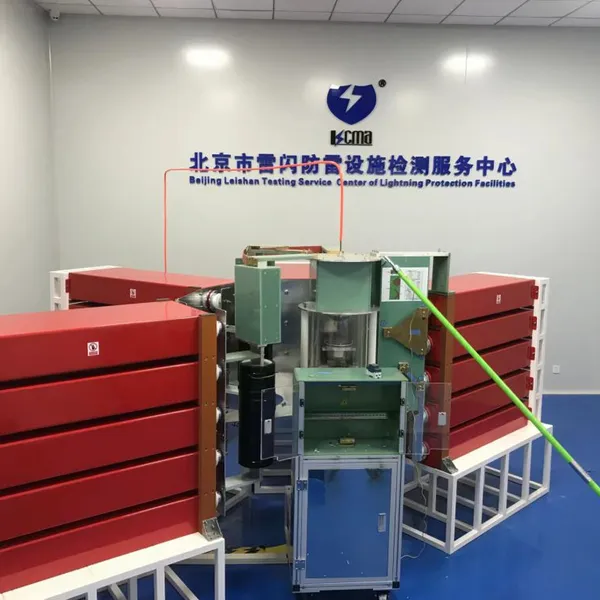

Help CenterLightning Strike Simulator Test Platform
Related Products
1.2/50μs Combination wave generator
Type：AT2181-(Voltage class)-G
Configuration：
◎ Realizing 10/350μs standard triangular wave through our patent technology of multi-thoroughfare current wave superposition
◎ 10”industrial touching screen & intelligent interface
◎ Decoupling network or operating duty test cabinet of customized capacitor
◎ Skysight oscilloscope, Rogowski coil acquistion current, voltage divider acquistion voltage
◎ Automatic measurement software
◎ Safety door system, automatic connecting ground protection, automatic discharging protection, manual safety discharging protection
◎ Graphite ball-gap discharge, double-layer soundproof shade
|
Output wave |
10/350μs |
|
Wavefront T1 |
10μs (﹣10%〜﹢100%） |
|
Electric quantity /Q： |
±20% |
|
Energy density W/R： |
±35% |
|
Current peak Ipeak |
5kA〜200kA |
|
Polarity |
Positive / Negative |
|
Trigger angle |
0°〜360° |
|
Energy density W/R discharge time |
5ms |
|
Electric quantity -Q transfer time |
5ms |
|
Charging voltage |
＜50kV |
