Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > Circuit Tester Integrates

Circuit Tester Integrates

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Autofocus Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Specifications

Circuit Tester Integrates

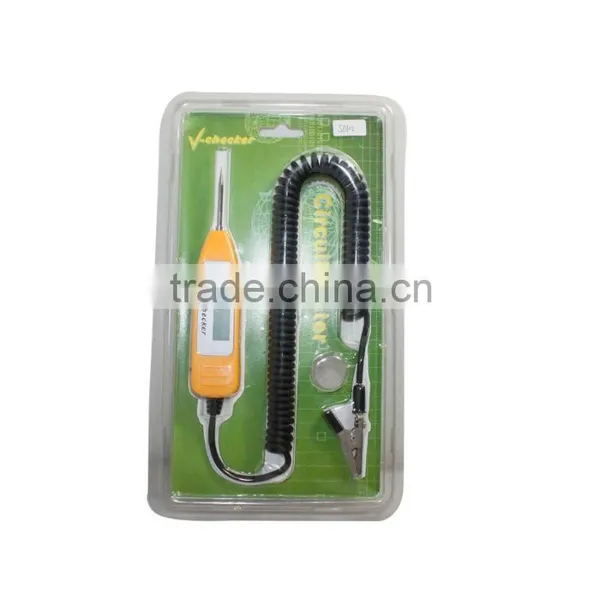

V-checker T700 circuit tester integrates functions of electricity test pencil, automotive multimeter and oscilloscope. The pencil structure, LCD screen and especially the high accuracy greatly help the garage technicians to diagnose vehicles problem quickly and highly increase their work efficiency.

Specifications

Package: Blister Packing Dimension: 257mm *149mm *15mm

Warranty: One year

Feature

V-checker T700 circuit tester can check the cable assembly signal from 0~36V with accuracy 0.1V. When the signal voltage is over 36V, the LCD screen will show icon ">> The testers waveform range is from 0-12V. When the tester leaves the cable, the waveform will be enlarged and the LCD displays 0.4s actual waveform. Meanwhile, the voltage range is marked and user can define waveform of 10-50Hz. When the cable assembly voltage is over 0.1V, the LCD indicates voltage value and waveform. The blue LED would be shining When voltage is over 0.5V.

T700 also can be used to check continuity of cable assembly. It shows test results and graphs through red LED light and LCD screen. When the cable assembly is continuous, the red LED light is On. Verse vase, the red LED light is off.

Specification

Working voltage:3.0-3.3V

Working current:5mA /Standby current:5μA

Working power:0.9W / Standby power:0.1mW
