Help CenterCombination Wave Generator
US$ 4000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
AUTO
Place of Origin:
China
Model Number:
AT2181-006-T
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian, Shenzhen
Delivery Detail:
8 days
Related Products
-
SPD Thermal Stability TesterUS$ 4000 - 150000MOQ: 1 Set -
TOV Test CabinetUS$ 4000 - 150000MOQ: 1 Set
-
Gas Discharge Tube Multi-function TesterUS$ 500 - 3000MOQ: 1 Set
-
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 100 - 1000MOQ: 1 Set
-
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 500 - 5000MOQ: 1 Set
Brand Name
AUTO
Place of Origin
China
Model Number
AT2181-006-T
Power
Electronic
Usage
Auto Testing Machine

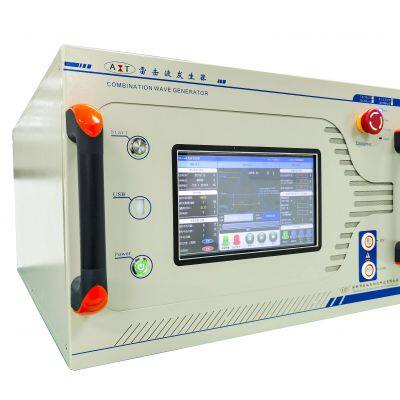

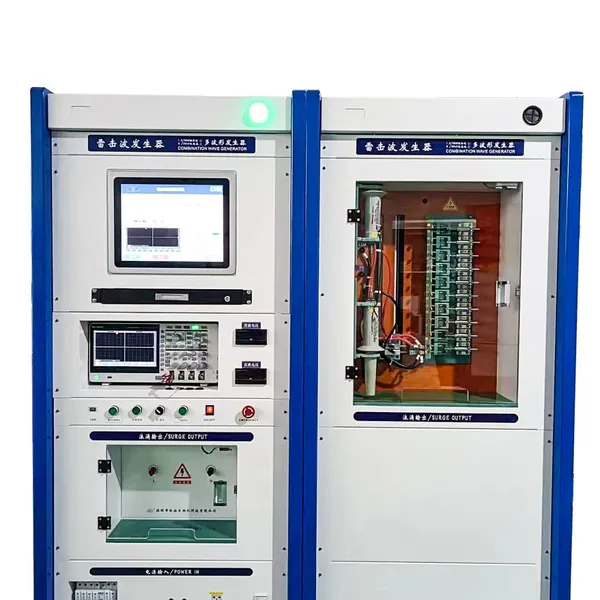

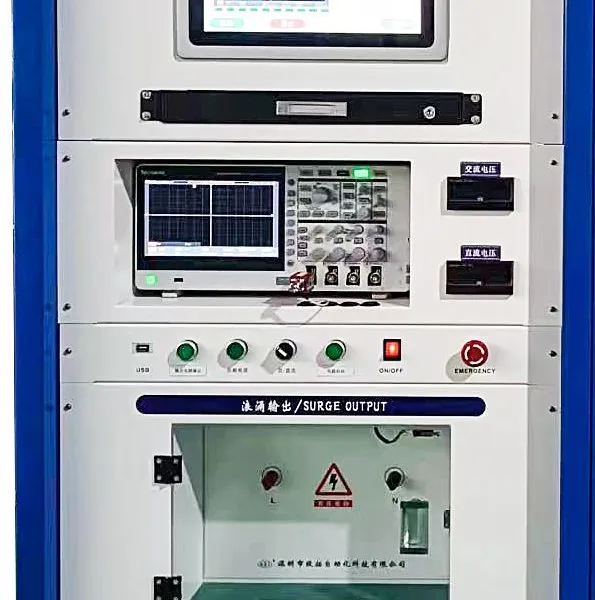

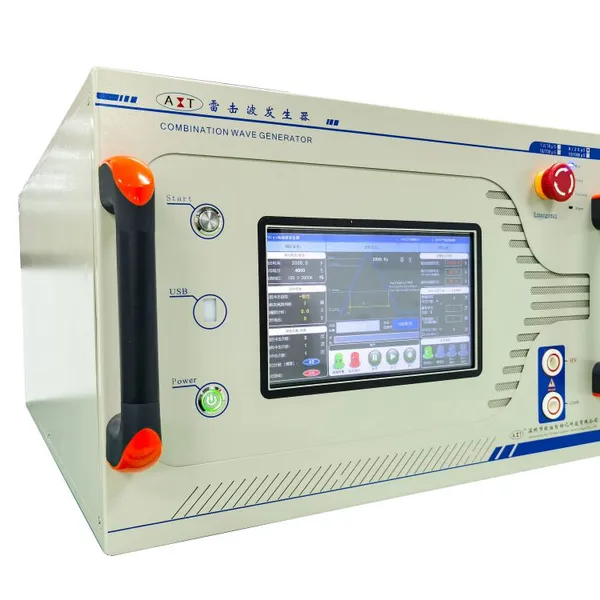

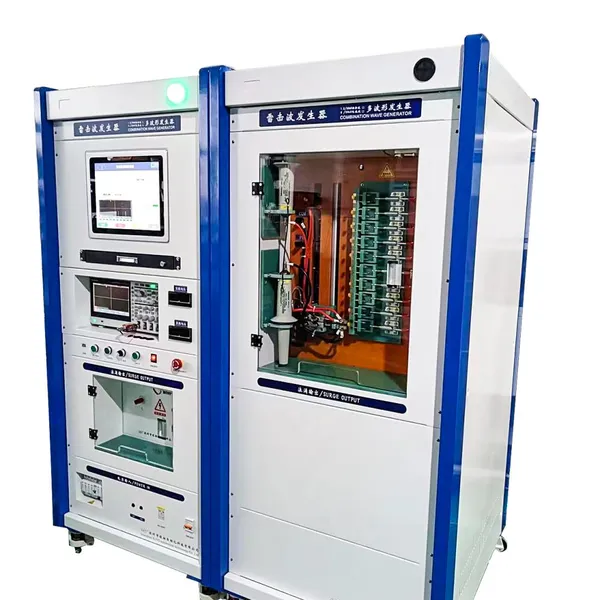

1.2/50μs Combination wave generator
Type：AT2181-006-T
|
Voltage wave |
1.2/50μs（1.2μs±30%、50μs±20%） |
|
Current wave |
8/20μs（8μs±20%、20μs±20%） |
|
Open circuit voltage range |
（200V〜6kV）±3% |
|
Short circuit current range |
（100A〜3kA）±10% |
|
Output impedance |
2Ω |
|
Polarity |
Positive / Negative |
|
Interval time |
1〜9999s |
|
Trigger angle |
0°〜360° |
|
Strike times |
1-9999 |
|
Equipment size |
L×W×H=550mm×600mm×302mm |
Specifications:
◎ 7”industrial touching screen & intelligent interface
◎ Coupling Decoupling network or customized capacitor of operating duty test
◎ Skysight Oscillascoppe, Rogowski coil or high pressure probe
◎ Automatic measure software
◎ Industrial computer or automation measure software
