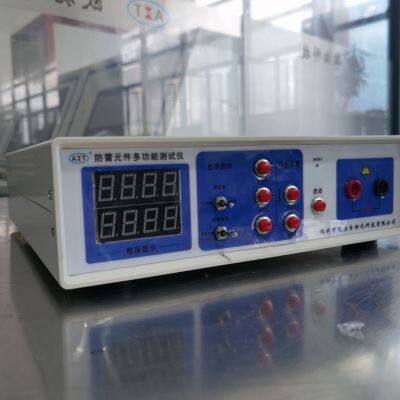

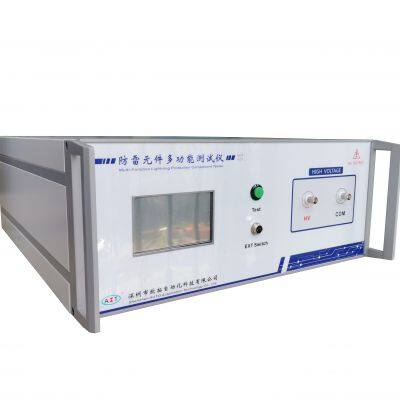

Help CenterGas Discharge Tube Multi-function Tester
Related Products
-
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 100 - 1000MOQ: 1 Set -
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 500 - 5000MOQ: 1 Set
-
Lightning Strike Simulator Test PlatformUS$ 8000 - 200000MOQ: 1 Set
-
Lightning Strike Simulator Test PlatformUS$ 100000 - 200000MOQ: 1 Set
-
Combination Wave GeneratorUS$ 4000 - 100000MOQ: 1 Set
Parameters:
Voltage of DC breakdown |
60V〜2000V |
400V-6000V |
Test slope |
100V/s、200V/s、400V/s、5000V/s、1000V/s (5-class is optional) |
100V/s、200V/s、500V/s、1000V/s、2000V/s (5-class is optional) |
Current criterion |
10〜15mA |
10〜15mA |
Polarity |
Positive / Negative |
Positive / Negative |
Control method |
4" Touching screen or upper-computer software control |
4" Touching screen or upper computer software control |
Displaying |
Touching screen |
Touching screen |
Test accuracy |
±2% |
±2% |
Test results criterion |
Upper and lower limit setting qualified range |
Upper and lower limit setting qualified range |
Test results display |
Good or Not good shown on touching screen |
Good or Not good shown on touching screen |
Data record |
upper computer software control |
upper computer software control |
Test wires |
Test pen & clip |
Test pen & clip |
Data port |
RS232 |
RS232 |
Signal port |
6-coil circular connectors used in aircraft |
6-coil circular connectors used in aircraft |
Communication protocol |
Modbus-RTU |
Modbus-RTU |
Tester size |
L×W×H=500mm×510mm×180mm |
L×W×H=500mm×510mm×180mm |
Environment requirement:
◎ Working supply: AC220V 50/60Hz
◎ Environment Temperature & humidity: 0 ~ 40℃
& 45 ~ 85%
