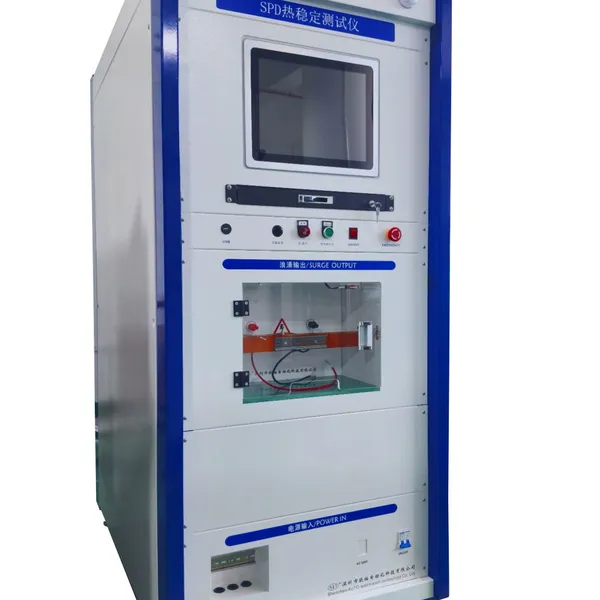

Help CenterSPD Thermal Stability Tester
Related Products
-
TOV Test CabinetUS$ 4000 - 150000MOQ: 1 Set -

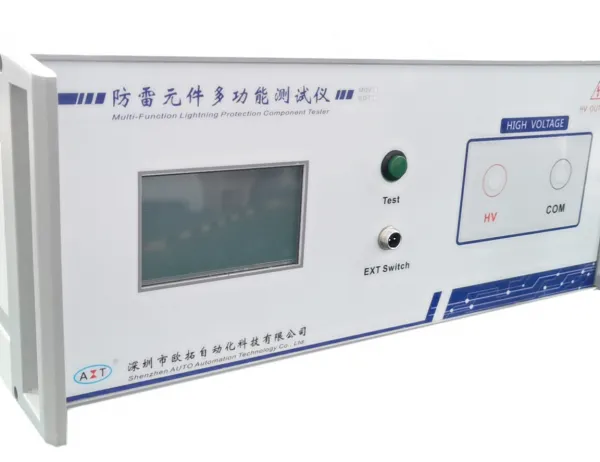

Gas Discharge Tube Multi-function TesterUS$ 500 - 3000MOQ: 1 Set
-
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 100 - 1000MOQ: 1 Set
-
Varistor Integrated Tester via Lightning Strike SimulatorUS$ 500 - 5000MOQ: 1 Set
-
Lightning Strike Simulator Test PlatformUS$ 8000 - 200000MOQ: 1 Set
Customized product
Type：AT2188-005-AC-G
GB/T 18802.11 Standard | |
Test voltage |
AC: 0-1500V |
Current range |
2mA-2A |
YD/T 1235.2 Standard |
|
Test voltage |
AC: 0〜1500V |
Current range |
2mA〜5A（20mA、80mA、320mA、1000mA、2500mA、5000A, 6-class） |
General parameters |
|
Votage testing accurate |
±3% |
Current testing accurate |
±3% |
Temperature measure thoroughfare |
5-thoroughfare（1 for enviroment temperature & 4 for SPD temperature） |
Temperature measure method |
PT100 tember probe，Surface test |
Voltage requlation |
Programmable power supply control |
Constant current mode |
Programmable power supply control |
Testing box |
Built-in, with SPD mounting rail & discharg flue |
Measure software |
Computer controls voltage, current to draw temperature chart |
Equipment size |
L×W×H=600mm×800mm×1800mm |
Specification:
Compatible with AC & DC
Computer controls voltage, current, to draw temperature chart and save the file
Programmable power supply control mold
Enviroment requirement:
Working supply: AC220V 50/60Hz
Enviroment Temperature & humidility: 0 - 40℃
& 45 ~ 85%
