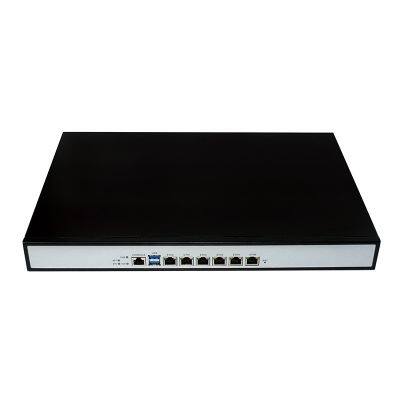

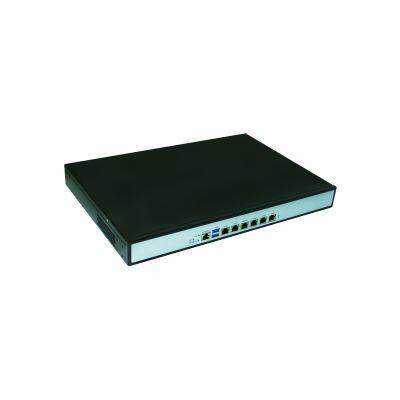

Rackmount 1U network Appliance,onboard J1900 CPU, 6 or 10 RJ-45 GbE network ports, one SATA and one mSATA interface, single or redundant power supply

• Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache

• One 204-pin DDR3-L DIMM slots, up to 8 GB

• Six Intel PCIe GbE controllers, support two channels bypass

• One SATA  interface and one mSATA interface

• Two USB3.0, One CF TypeII

• One RJ45 for RS232 communication

• Optional one nic module adding 4 GbE network ports

CPUOnboard Intel Bay Trial J1900 Quad-core CPU
System memoryOne 204-pin DDR3-L DIMM slots, up to 8GB

InterfaceOne SATA and one mSATA connectors
Hard DriveOne  3.5/2.5" HDD trays
CF slotOne CFII slot

LAN PortSix 10/100/1000Mbps RJ-45 ports

Ethernet ControllerSix Intel PCIe GbE controllers

BYPASS2 channels BYPASS

IndicatorIndicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

USBTwo USB3.0
COMOne RJ-45 COM
Reset ButtonOne built-in reset button
IndicatorOne Power LED, one HDD LED
VideoBuilt-in one VGA interface, support hot plug(Internal)

Power consumptionBuilt-in 60W power supply
Power input100 ~ 240V AC input
OptionalDC power or Redundant power

MountingSupports rack-mounting or desktop-mounting
Operate Temperature-10°C ~ 50°C
Storage Temperature-20°C ~ 75°C
Operate Humidity5% ~ 85% non-condensing @ 40°C
Storage Humidity5% ~ 95% non-condensing

Chassis ColorBlack or OEM
Front panelSilver PVC/Aluminum font panel(OEM/Neutral)
Construction1u chassis, Heavy duty metal
Dimensions (D x W x H)430x295x44.5mm
Weight9.6 kg

F19611-B21u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 60W PSU

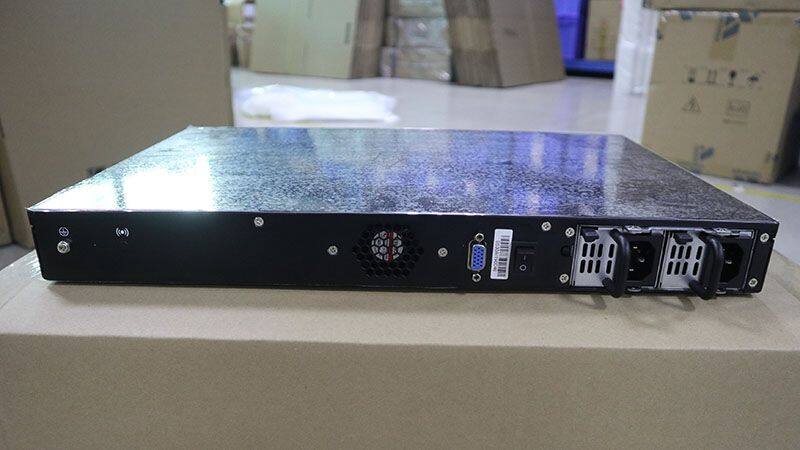

F19611-B2P21u rackmount chassis, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 70W redundant PSU

58N44 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers

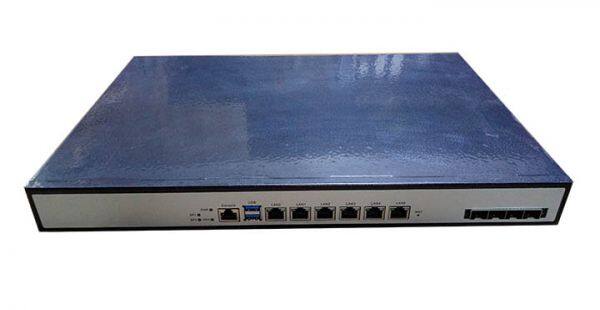

58F44 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
