Thermal Putty 1.5W Silicone Thermal Gel Low Thermal Resistance For Mother Board
TIF015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and
compressibility.Due to TIF015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

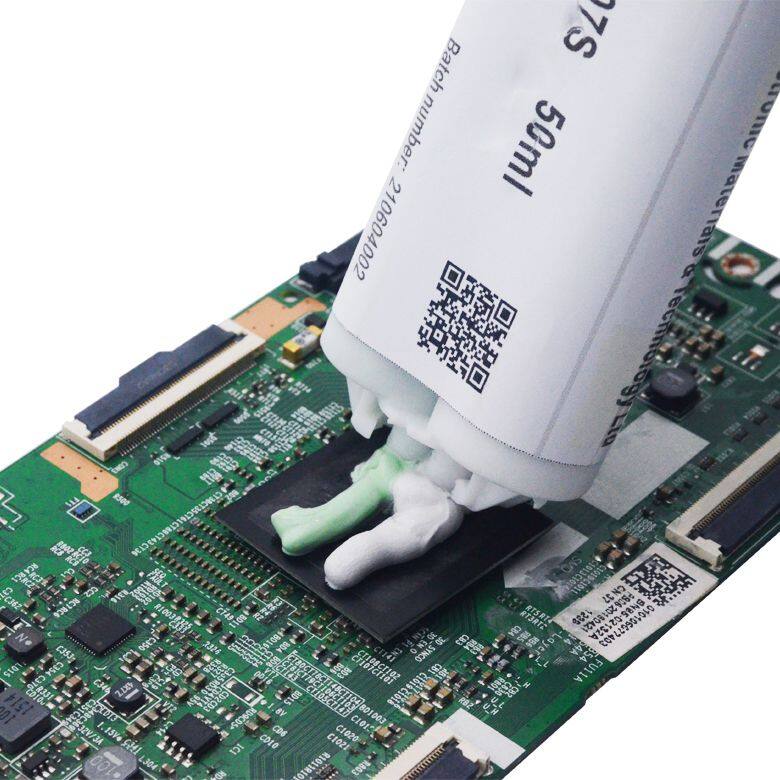

TIF015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility.
TIF015-07 can be applied on chip micro processor,PPGAs,MicroBGA package,BGA package,DSP chip,LED lighting and other high power electric component .
Applications
| Typical Properties of TIF015-7 | ||
| Typical Uncured Material | ||
| Construction & Composition | Ceramic filled silicon material | ***** |
| Color | Green | Visual |
| Specific Gravity | 2.3g/cc | ASTM D297 |
| Viscosity | 900,000 cps | GB/T 10247 |
| Thermal Conductivity | 1.5W/Mk | ISO 22007-2 |
| Specific Heat Capacity | 2.2MJ/m3K | ISO 22007-2 |
| Themal diffusivity | 0.847mm²/s | ISO 22007-2 |
| Continuous Use Temp | ﹣45~200℃ | ****** |
| Dielectric breakdown | 200V/mil | ASTM D149 |
| Flame Rating | 94V0 | E331100 |
Product packing details:
30cc/pc , 98cc/pc,300cc/pc, 6pcs/box
We offer the custom packaged in Syringes for automated despensing applications.
Please contact us for confirming.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
