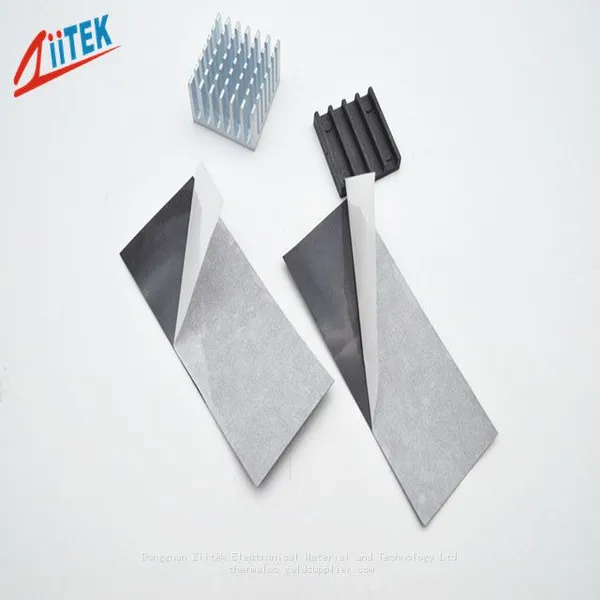

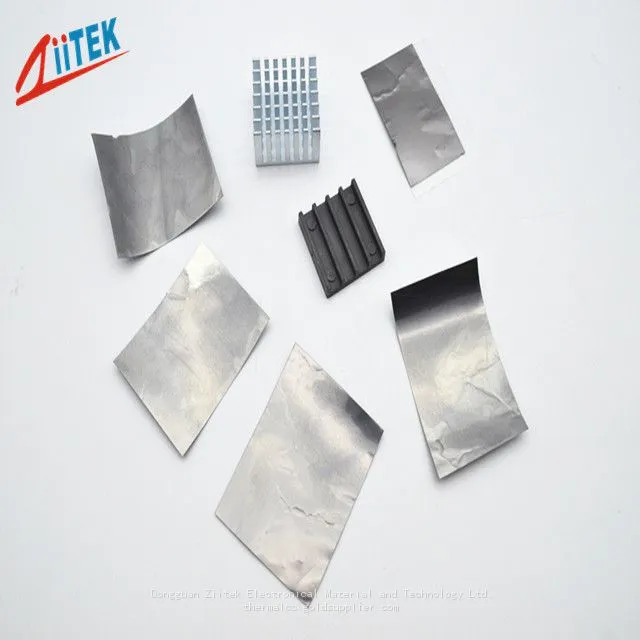

Thermal Conductive Graphite Sheet For Mobile Phone
TIR™300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.
Feature
> Easy to assemble
> Ultra-thin type
> RoHS Compliant
> Thermal Conductivity: 1700W/mK
> Reduce hot spots and protect sensitive areas
> Light weight
> Flexible
> Easy to assemble.
Application
> PDP,LCD TV
> Laptop,Notebook,Projector

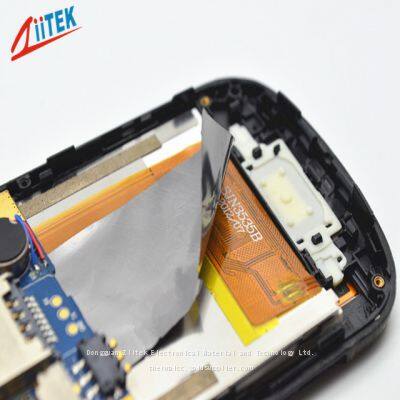

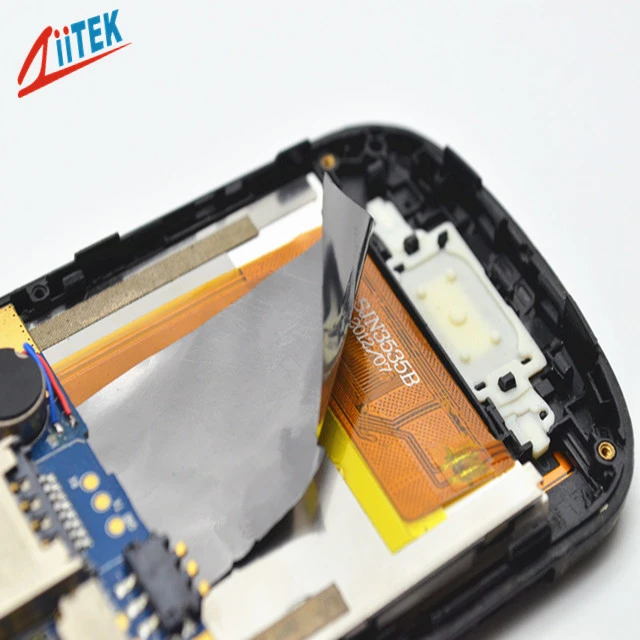

> Mobile phone
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
Typical Properties of TIR300 series | ||||||
Product Name |
TIR312 |
TIR317 |
TIR325 |
TIR332 |
TIR340 |
Test Method |
Colour |
Black |
|||||
Material |
Synthetic graphite |
|||||
Thickness |
0.012 mm |
0.012 mm |
0.012 mm |
0.012 mm |
0.012 mm |
ASTM D751 |
Total Thickness |
+/- 10% |
+/- 10% |
+/- 10% |
+/- 10% |
+/- 10% |
ASTM D751 |
Density |
1.9 g/cc |
2.0 g/cc |
1.8 g/cc |
1.9 g/cc |
1.8 g/cc |
ASTM D297 |
Hardness |
85 Shore A |
ASTM D2240 |
||||
Operation Temperature |
-40℃~ 400℃ |
****** |
||||
Volume Resistivity |
3.2X10³ Ohm-meter |
ASTM D257 |
||||
Typical Thermal Conductivit (In Z axis) |
4.2W/m-K |
5.0W/m-K |
6.0W/m-K |
8.0W/m-K |
12 W/m-K |
ASTM D5470 |
Typical Thermal Conductivity (In X-Y axis) |
1600 W/m-K |
1700W/m-K |
1500W/m-K |
1400W/m-K |
1200W/m-K |
****** |
Thermal Resistance @100psi |
0.028 (in²℃/W) |
0.030 (in²℃/W) |
0.035 (in²℃/W) |
0.045 (in²℃/W) |
0.060 (in²℃/W) |
ASTM D5 |
Standard Sheets Sizes :
1. 185mm x 220mm 2. 195mm x 240mm 3. 220mm x 320mm
TIR™ 300 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness.
Company profile

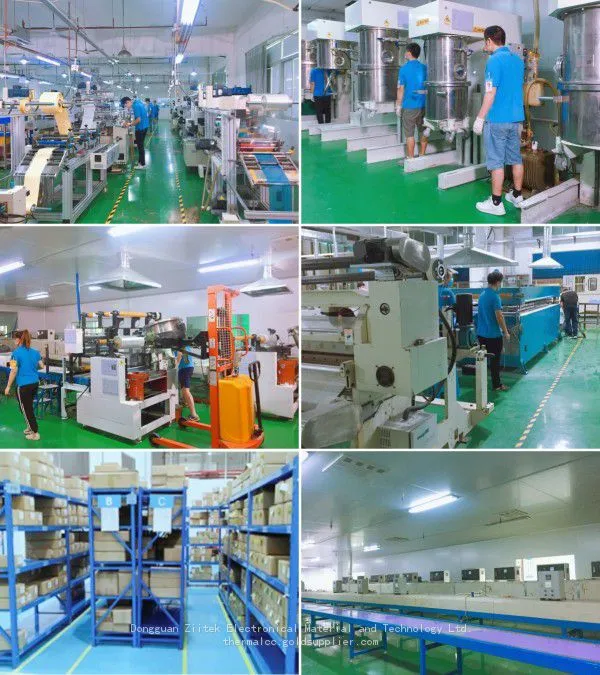

Dongguan Zhaoke Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
