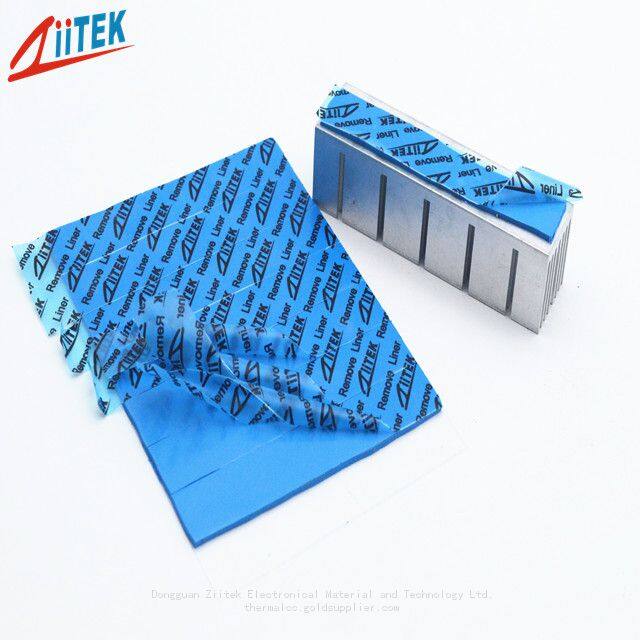

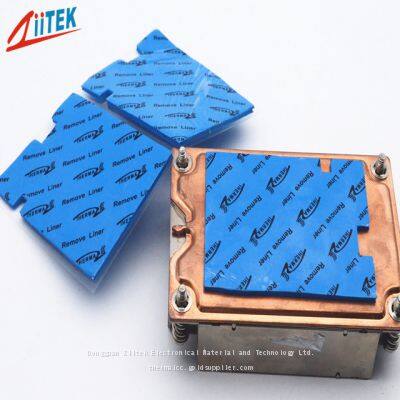

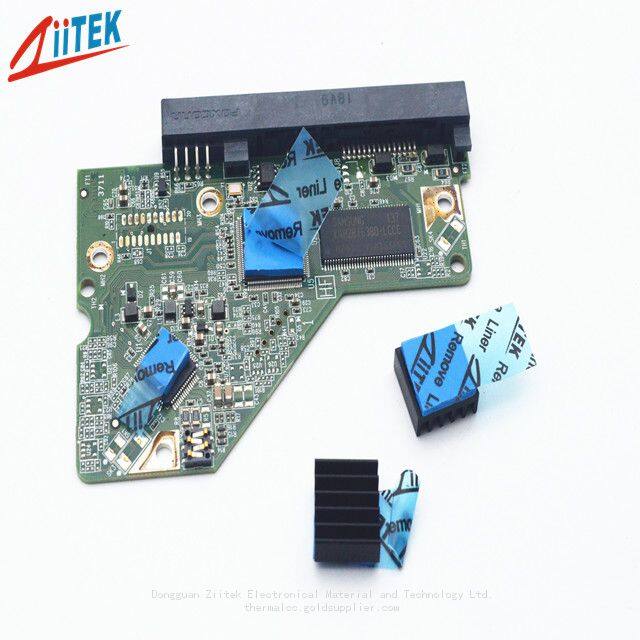

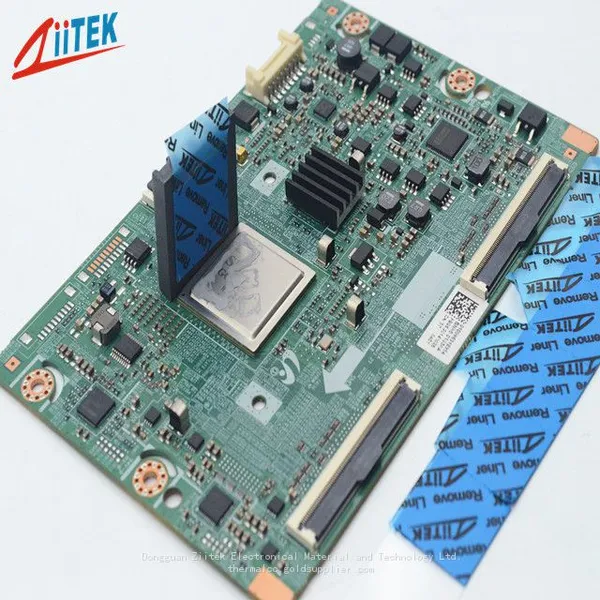

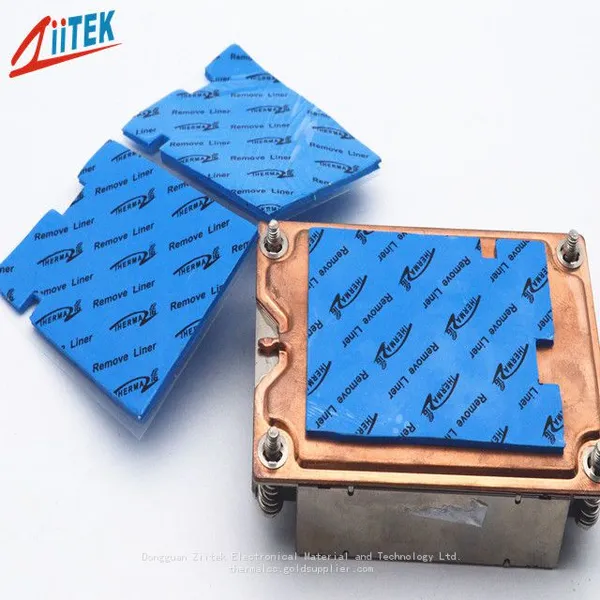

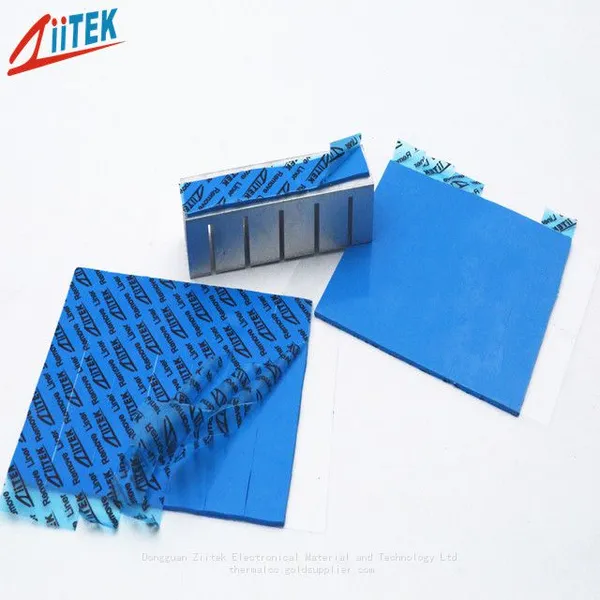

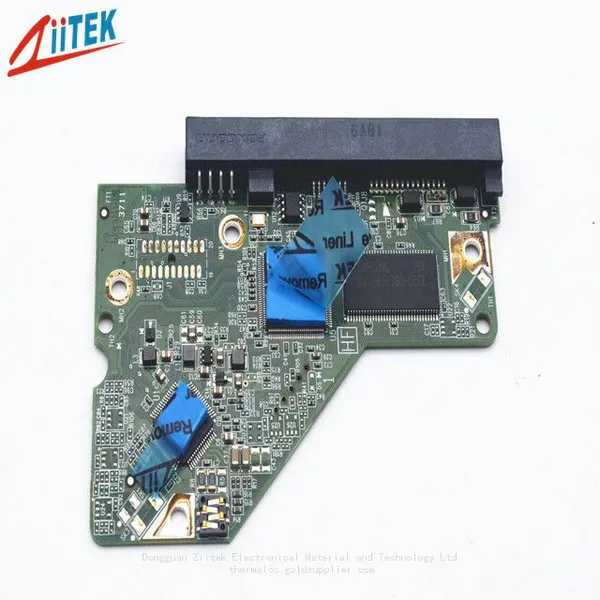

Thermal Management Materials 3.0W Silicone Head Sink Thermal pad for Electric Parts Heat Transfer
The TIF™100-30-05E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Features
● Available in varies thicknesses 3.2 W/mK
● Broad range of hardnesses available
● Moldability for complex parts
● Outstanding thermal performance
Applications
● CPU
● display card
● mainboard/mother board
● notebook
● power supply
● Heat pipe thermal solutions
● Memory Modules
● Mass storage devices
● Automotive electronics
Typical Properties of TIF100-30-05E | |||||
| Color | Blue | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5500 VAC | ASTM D149 |
| Construction | Ceramic filled silicone elastomer | ********** | Dielectric Constant | 5.0 MHz | ASTM D150 |
| Thermal Conductivity | 3.0W/mK | ASTM D5470 | Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Hardness | 35 Shore 00 | ASTM 2240 | Continuous Use Temp | –40 ~160 ℃ | ********** |
| Specific Gravity | 3.0 g/cc | ASTM D297 | Outgassing (TML) | 0.40% |
ASTM E595 |
| Thickness range | 0.020"-0.200"(0.5mm-5.0mm) | ASTM D374 | Flame Rating | 94 V0 | UL E331100 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
