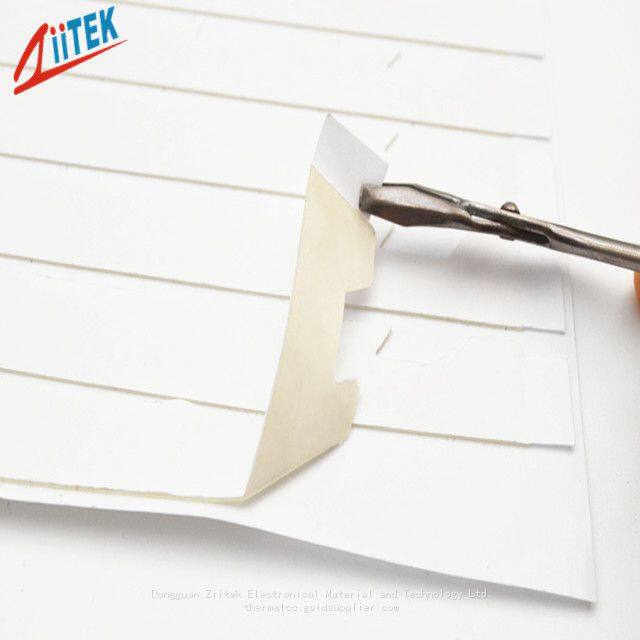

Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management
The TIA™810 Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors.This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect
can be able to replace the method of lubricating grease and mechanical fixing.
Features
> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive
Applications
> Mount heat sink onto BGA graphic processor or drive processor.
> Mount heat spreader onto power converter PCB or onto motor control.
> Can be used instead of heat cureadhesive screwmounting or clip mounting.
| Typical Properties of TIA™800 Series | ||||||||
| Product Name | TIATM802 | TIATM804 | TIATM806 | TIATM808 | TIATM810 | TIATM812 | TIATM815 | Test Method |
| Color | White | Visual | ||||||
| Adhesive Type | Acrylic Adhesive | ****** | ||||||
| Backing Type | N/A | ****** | ||||||
| Continuous Use Temp | -45℃ to 120℃ | ****** | ||||||
| Thickness | 0.019" 0.05mm | 0.004" 0.101mm | 0.006" 0.152mm | 0.008" 0.203mm | 0.010" 0.254mm | 0.012" 0.304mm | 0.015" 0.381mm | ASTM D374 |
| Voltage Breakdown | > 600Vac | > 1200Vac | > 1800Vac | > 2500 Vac | > 2700 Vac | > 3000 Vac | > 4000 Vac | ASTM D149 |
| Thermal Conductivity | 0.9 W/mK | ASTM D5470 | ||||||
| 180° Peel Adhesion | >1200 g/inch (Steel Immediate) | PSTC-1 | ||||||
| 180° Peel Adhesion | > 1200 kg/inch(Steel after 24 hrs) | PSTC-1 | ||||||
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 | ||||||
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 | ||||||
0.004"(0.101mm)
o.006"(0.152mm)
0.008"(O.203mm)
0.010"(0.254mm)
0.012"(0.304mm)
0.015"(0.381mm)
Standard Sizes:
16" x 100'(406mm x 30.48M)

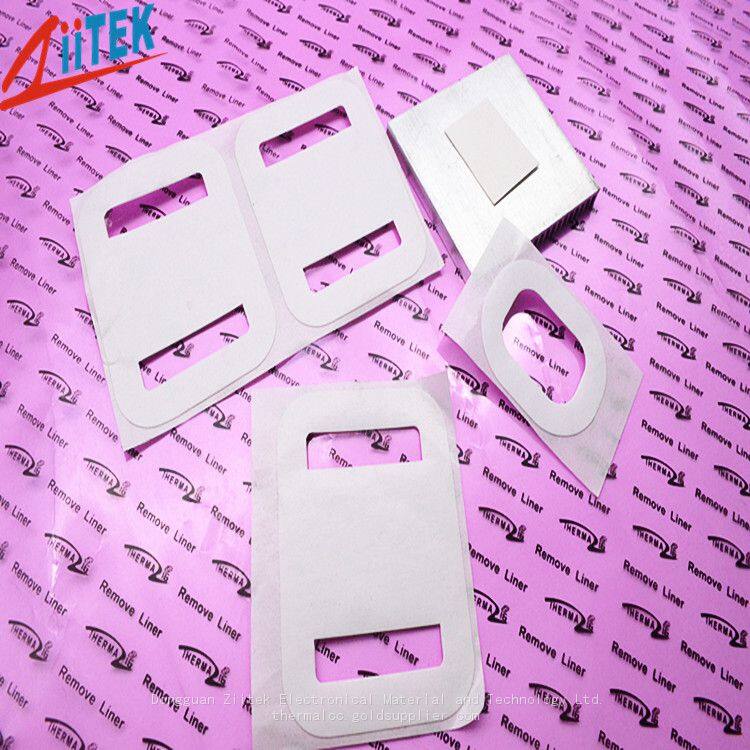

Individual die cut shapes can be supplied.
Reinforcement:
TIA™800 Series rolls type can add with fiberglass reinforced.
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
