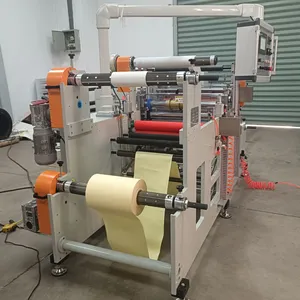

Help CenterSpnge EVA Tape Laminating and Kiss Cut Slitting Rewinding Sheeting Machine
Related Products
-
PVC Film, Insulation Sheet,Mylar, Foam, Industrial Tape Cutting MachineNegotiableMOQ: 1 Set -
DP-650 Electronic Air-pressure Pulling and Cutting Machine With Kiss Cut Function for Rubber MatsNegotiableMOQ: 1 Set
-
High Speed Automatic Cut off .cutting MachineNegotiableMOQ: 1 Set
-
With Eliminate Static Devices Film Paper Roll to Sheet Cutting MachineUS$ 5000 - 10000MOQ: 1 Set
-
Automatic Aluminum Foil Roll to Sheet Cutting Machine 800mmUS$ 4000 - 19000MOQ: 1 Set
Automatic kiss cutting machine
kiss cutting machine with laminating function
Max Feeding Width |
600mm |
Minimum slitting width |
5mm , configure 15 sets round blade |
Main Engineer Power |
750 W |
Speed ( cuts/minute ) (for length 100mm) |
110 |
Size ( mm ) |
2380*1100*1120 |
Weight ( kg ) |
500 |
Precision ( mm ) |
±0.10 |
Power |
220v, 60hz, 3 phases |
Unwinding shaft diameter |
3 inch |
Unwinding air shaft |
2 sets |
Unwinding use magnetic powder brake |
2 sets |
Rewinding shaft diameter |
3 inch |
Rewinding air-shaft |
2 sets |
Magnetic powder clutch |
2 sets |
Rewinding motor |
2 set |
unwinding paper diameter |
600mm max |
Max cutting length |
Not limited (better control in 10mm to 1000mm to get better precise) |
Slitting method |
Kiss cut or full cut slitting , with round blade larger diameter to cutting thickness max 15mm, when slitting width 5mm to 15mm better slitting thinner material to keep precise |
Cutting function |
Full cut and kiss cut and with kiss cut slitting |
