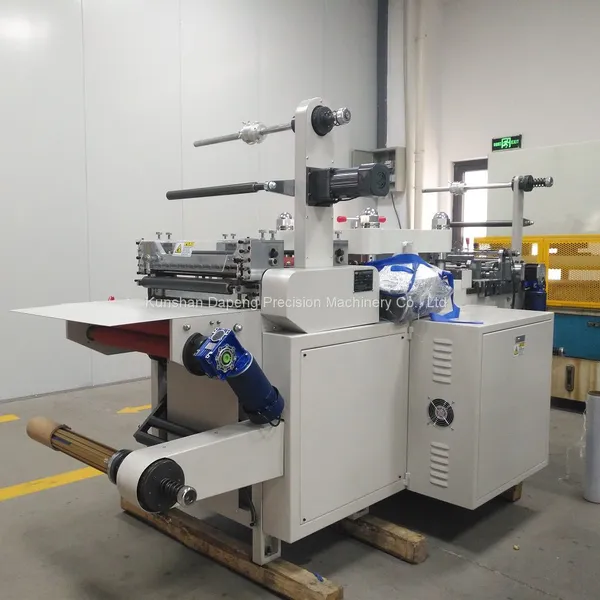

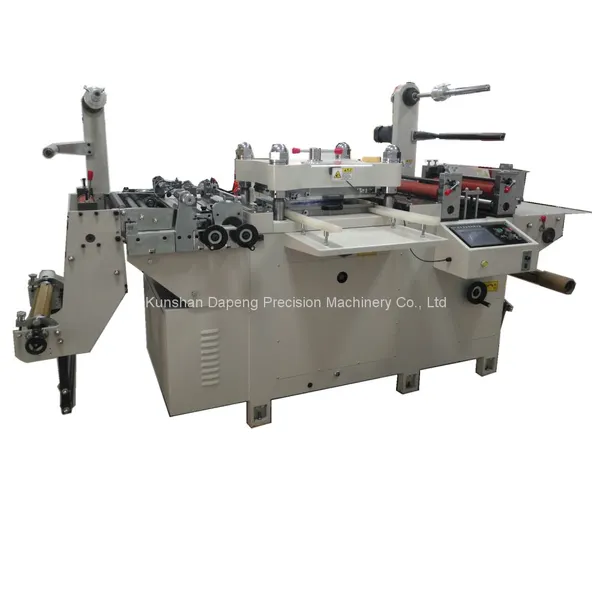

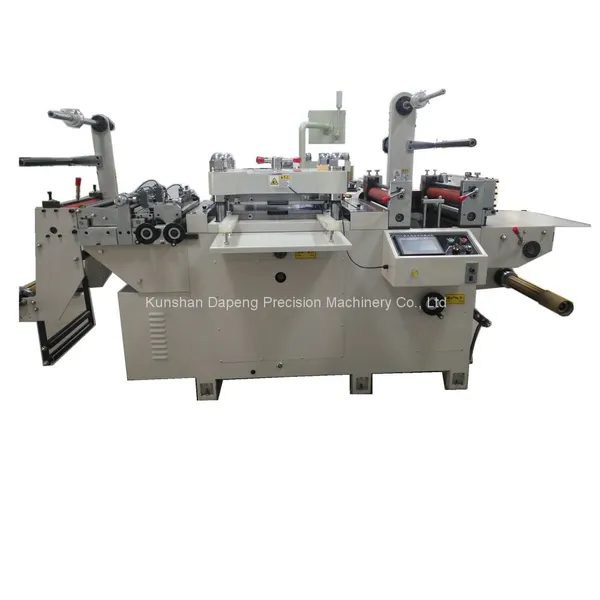

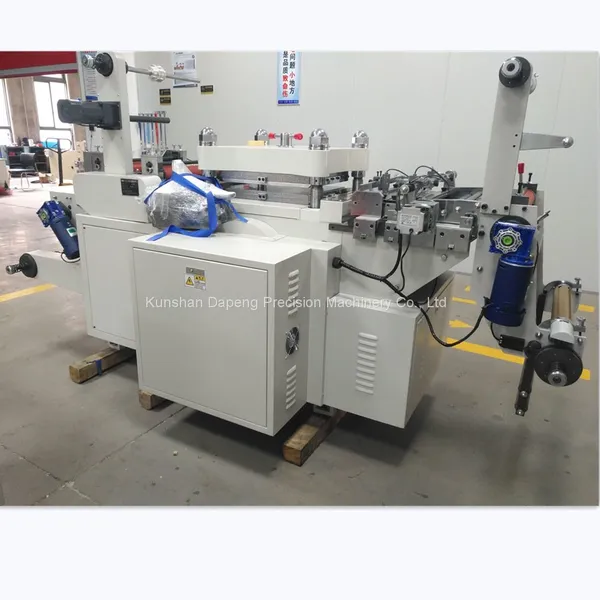

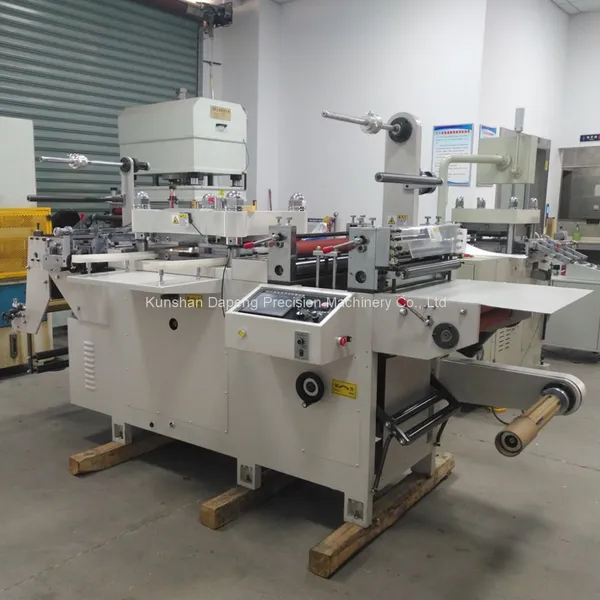

DP-320A Automatic Die Cutting Machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
DP-320BIII Multi-Function Automatic Die Cutting Machine Flat Bed Die Cutting Machine
-
Copper Foil Al. Foil Die Cutting Machine
-
PVC Film, Insulation Sheet,Mylar, Foam, Industrial Tape Cutting Machine
-
Plastic Leather,Cloths,PVC Plastic Sheet,Paper Board Sanding Cloths,Aluminum Foil Etc. Cutting Machine
-
DP-650 Electronic Air-pressure Pulling And Cutting Machine With Kiss Cut Function for Rubber Mats
-
DP-1300/1600 Multifunction Laminating And Slitting Machine
Product Details
| Brand Name | DP | Place of Origin | China | |
| Model Number | DP-320A |
Product Description
| DP-320A automatic die cutting machine Functional characteristics: | ||||||
| This machine is of platen pressing structure, computer servo system sheet drawing, and the two edges and | ||||||
| vertical sides of the materials are tracked and located by the photoelectric eye. | ||||||
| Press trip automatic adjusted by screen , regulation accuracy is +-0.1002, make moulding-adjustment more convenient | ||||||
| Feeding-waste draining-slitting or rolling, all of them are completed by the computer control by one turn. | ||||||
| Scope applicable: | ||||||
| The die cutting of sheet self-adhesive trademark, terylene film trademark, and the radium anti-fake trademark. | ||||||
| This machine is the optimal assembled equipment for full cycle high-speed web-fed trademark printing machine, | ||||||
| flexible edition printing machine, continuous screen printing machine, gravure printing machine and | ||||||
| anti-fake trademark swaging hammer, and also the optimal machine model of a variety of trademark printing plants. | ||||||
| It is also applicable to the die cutting and forming of the electronic industry, and tape goods production industry | ||||||
| Model | DP-320A |
| Max Feeding Width ( mm ) | 320 |
| Cutting Area ( mm ) | 300*200 |
| Cutting Speed ( T/M ) | 30-170 |
| Position Accuracy ( mm ) | ±0.1 |
| Main Engine Power ( KW ) | 2.2 |
| Size ( mm ) | 2750*1520*1400 |
| Rewinding Diameter (mm) | 500 |
| Voltage (V) | 380 |
