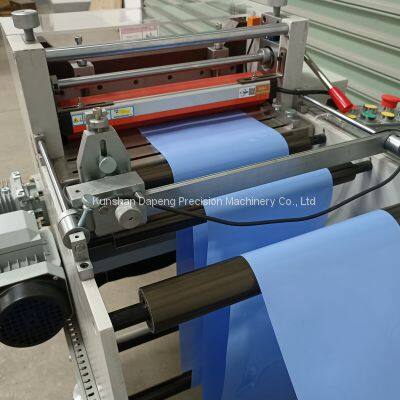

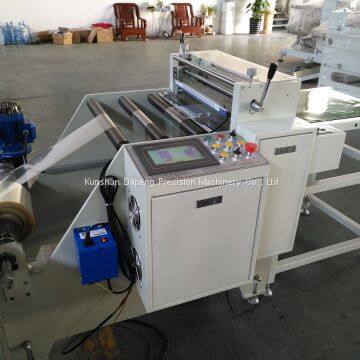

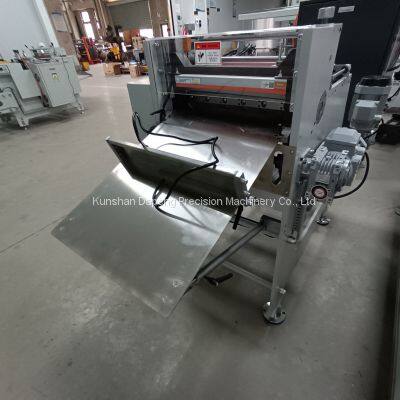

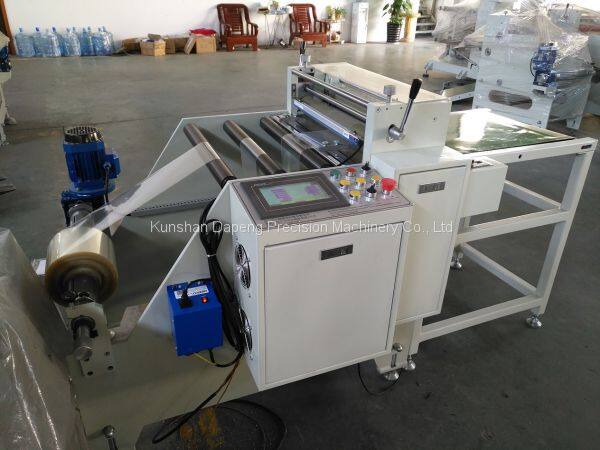

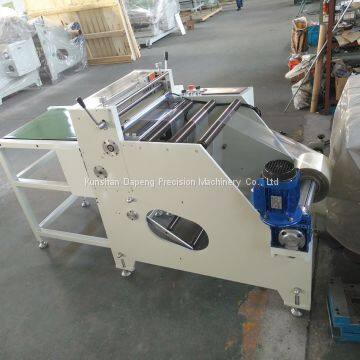

PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape cutting machine
computer control piece cutting machine With Automatic Unwinding System
Feature:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
Application:
Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Optional:
·static electricity eliminator · Conveyor belt
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,FUNCTIONAL CHARACTERSTICS
speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,
which will be easy to load and unload.
Purpose
It is applicable for the cutting of Paper, PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets,
electronic tape and various inch setting, and cutting these material from roll to sheet .
Model |
500 roll to Sheet cutter |
Max Feeding Width ( mm ) |
500 |
Main Engineer Power ( w ) |
750 |
Speed ( m/m ) |
120 |
Size ( mm ) |
1250*1100*1220 |
Weight ( kg ) |
400 |
Precision ( mm ) |
±0.10 |
Power |
380V 50HZ |
Shaft diameter |
3 inch / 76mm |
unwinding paper diameter |
600mm max |
Advantage of machine
DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place
Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when
running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge
at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance
After-sale:
Delivery time : 7 working days after received down payment
Terms of payment : 100% paid off before shipment ,
seller should offer operation videos of machine to customer
warranty and service plan
12 month after sale Warranty Service (excluding Wear and Tear item )
