| Functional Characteristics: | ||||||
| Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision. | ||||||
| Purpose: | ||||||
| It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials. | ||||||

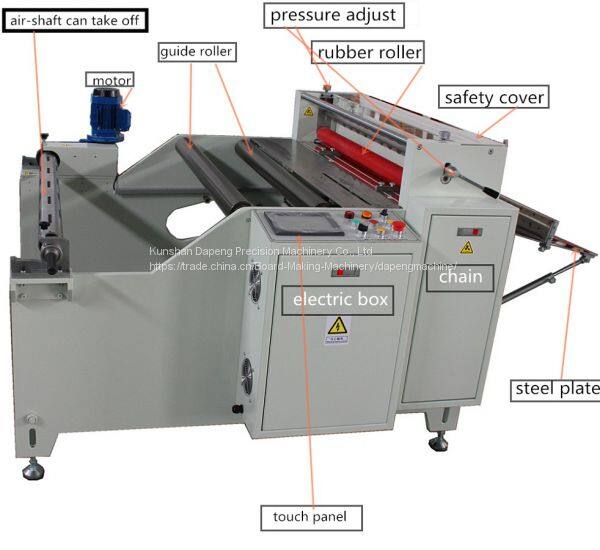

Advantage of machine
DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place
Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when
running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge
at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance
After-sale:
Delivery time : 7 working days after received down payment
Terms of payment : 100% paid off before shipment ,
seller should offer operation videos of machine to customer
warranty and service plan
12 month after sale Warranty Service (excluding Wear and Tear item )
Model |
600 roll to Sheet cutter |
Max Feeding Width ( mm ) |
600 |
Main Engineer Power ( w ) |
750 |
Speed ( m/m ) |
120 |
Size ( mm ) |
1300*1200*1250 |
Weight ( kg ) |
500 |
Precision ( mm ) |
±0.10 |
Power |
380V 50HZ |
Shaft diameter |
3 inch / 76mm |
unwinding paper diameter |
600mm max |
