Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Roll to Roll Hydraulic Die Cutting Machine DP650/850
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DP
Place of Origin:
China
Model Number:
DP-650/850
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
DP-320B/420B Automatic Die Cutting MachineNegotiableMOQ: 1 Set -
DP-320A Automatic Die Cutting MachineNegotiableMOQ: 1 Set
-
DP-320BIII Multi-Function Automatic Die Cutting Machine Flat Bed Die Cutting MachineNegotiableMOQ: 1 Set
-
Copper Foil Al. Foil Die Cutting MachineNegotiableMOQ: 1 Set
-
DP-270 Multifunctional Die Cutting MachineNegotiableMOQ: 1 Piece
Brand Name
DP
Place of Origin
China
Model Number
DP-650/850
Certification
CE
Type
Die-cutting Machine
Warranty
24
Condition
New
Computerized
Yes

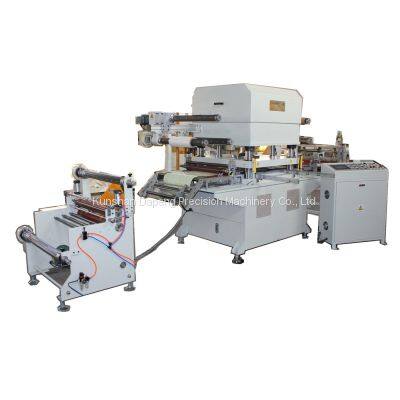

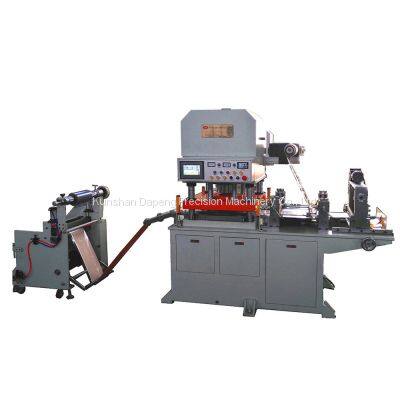

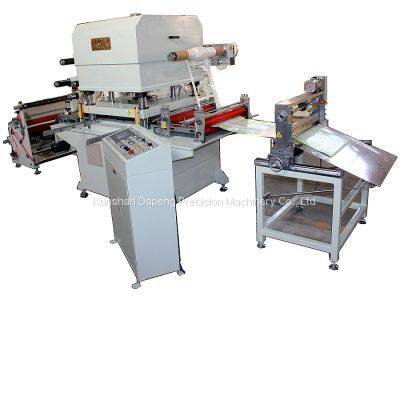

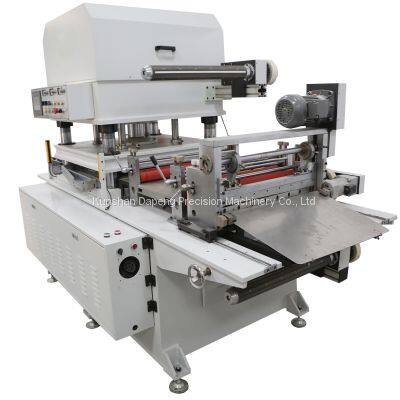

| Roll Hydraulic die cutting machine DP650/850 Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, | ||||
| push board back and forth precision can be controlled in 0.02 to 0.05 mm | ||||
| There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable | ||||
| Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting, | ||||
| all kinds of precision components of stamping forming | ||||
| PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection | ||||
| Technial Data | ||||
| ITEM NO. | Pressure | Max feeding width | Die cutting area | Main engine power |
| Ton | mm | mm | HP | |
| DP-40TA | 40 | 650 | 650X600 | 7.5 |
| DP-50TA | 50 | 850 | 850X600 | 10 |
| DP-80TA | 80 | 1000 | 1000X800 | 15 |
