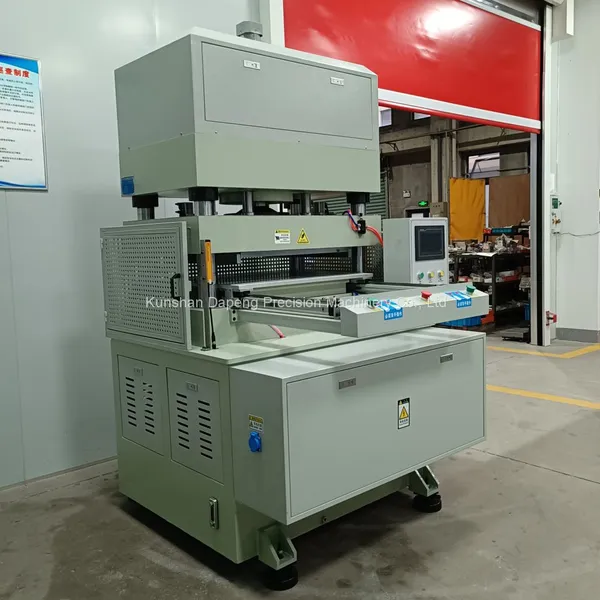

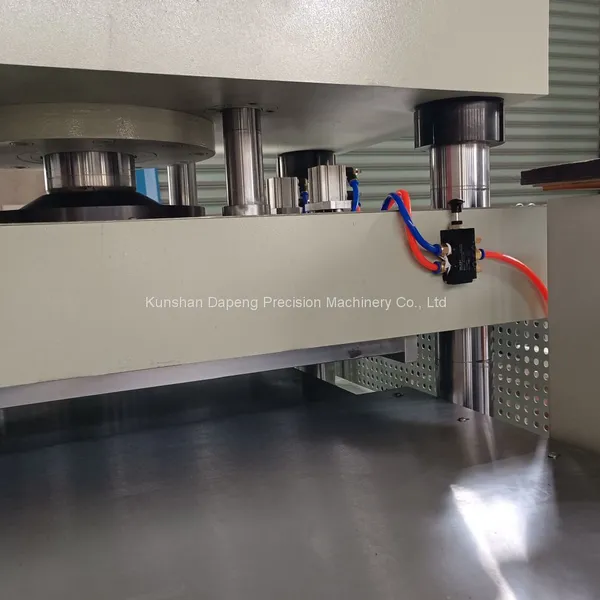

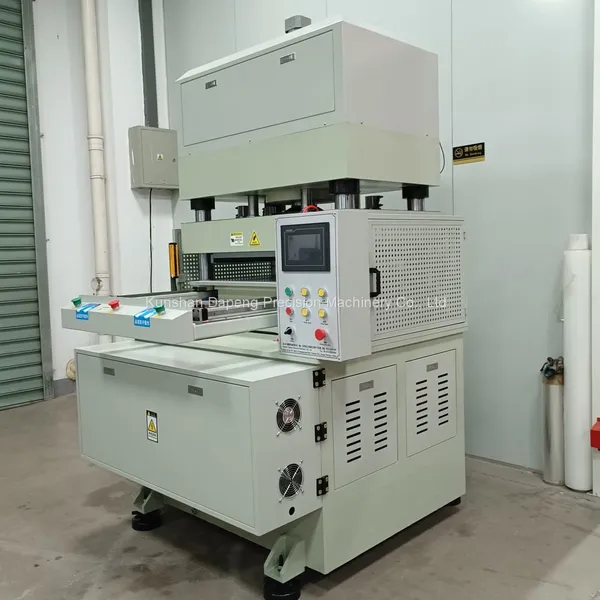

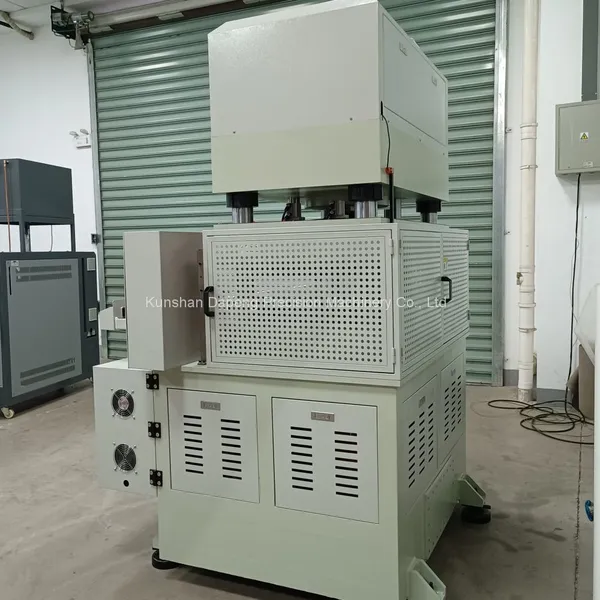

DP-650P Sheet Material Hydraulic Oil Press
*specialdesign under cutting positioning mechanism ( import ), accuracy of 0.01mm, can do through cuttingand kiss cutting, trimming precision 0.01mm
*configuredGermanystandard steel plate HRC40 to complete the effect of kiss cutting
*Precision feeding registration system accuracy + 0.03 mm (imports), feeding speed can beadjusted
*Security guards,safety magic eye protection device
Item No.: DP-650P Precision Oil Press Die cutting Machine
Technical Data
l Operation platform area :650*600mm
l Operation platform range : 50-100mm (Adjustable)
l Max Pressure capacity : 40T （Adjustable）
l Table board height :1000mm
l Work route adjustment accuracy:±0.01m/m
l Weight : 1.5T
