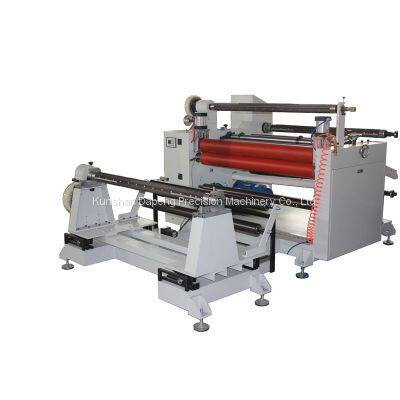

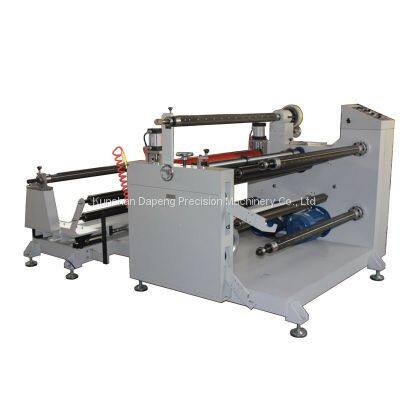

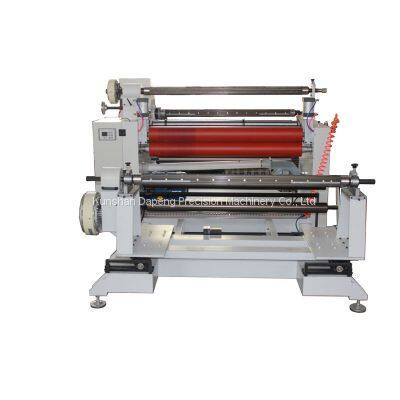

DP-1300/1600 Multifunction Laminating and Slitting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
DP-1300/1600 multifunction laminating and slitting machine
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
DP-650 Multifunction Laminating and Slitting Rewinding MachineNegotiableMOQ: 1 Piece -
PP/PET/PVC/BOPP Laminating MachineUS$ 5000 - 9600MOQ: 1 Set
-
Multilayer Two Group Laminator Three Group Nip Roller Laminating MachineNegotiableMOQ: 1 Set
-
420 Laminating Machine for Laminate Plastic Film and Adhesive TapeUS$ 4000 - 9600MOQ: 1 Set
-
Film Laminating Machine DP-320/420NegotiableMOQ: 1 Set
Place of Origin
China
Model Number
DP-1300/1600 multifunction laminating and slitting machine
After-sales Service Provided
Engineers available to service machinery overseas
Automatic Grade
Semi-Automatic
Driven Type
Mechanical
| DP-1300/1600 multifunction laminating and slitting machine | ||
| Funcional characteristics: | ||
| This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. | ||
| Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling, | ||
| with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. | ||
| It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. | ||
| Purpose: | ||
| It is applicable for the slitting tooling of industrial adhesive tape, cellophane tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. | ||
| This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc. | ||
| Model | 1300 multifunction sticking slitting machine | 1600 multifunction sticking slitting machine |
| Max Feeding Width ( mm ) | 1300 | 1600 |
| Main Engineer Power ( KW ) | 6 | 6 |
| Speed (T/M ) | 80 | 80 |
| Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 |
| Weight (kg) | 1200 | 1500 |
| Feeding diameter ( mm ) | 600 | 800 |
| Rewinding diameter ( mm ) | 450 | 450 |
| precision ( mm ) | ±0.10 | ±0.10 |
| Power | 380V 50HZ | 380V 50HZ |
