Home > Products > Standard Test Vessels > GB21456 Carbon Standard Test Pan
GB21456 Carbon Standard Test Pan
USD $200 - $5000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 10 days
You May Like
-
EN60350-2 Figure Z1 Stainless Steel Vessels for Cookware
-
IEC EN 60350-2 Figure 4 Low Carbon Steel Test Saucepan
-
IEC60335-2-6 figure 101 Aluminum vessels for testing hotplates
-
IEC60335-2-6 figure 102 Carbon Steel Vessels for testing induction hotplates
-
GB30720 Standard Aluminum Pans for Domestic Gas Cooking Appliance
-
IEC60335-2-6 Clause 21.102 1.8KG Loaded Test Vessel
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-V |
Product Description
GB21456 Standard Pan
1. Introduction
The standard pan is designed according to annex A, GB21456-2014, it is applied to evaluate the energy efficiency and energy efficiency grades. The pan and the lid are made of Q235 having a maximum carbon content of 0.08%, and the thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter. The surface of the pan and the lid should be smooth and polished to prevent rust.
2. Parameter

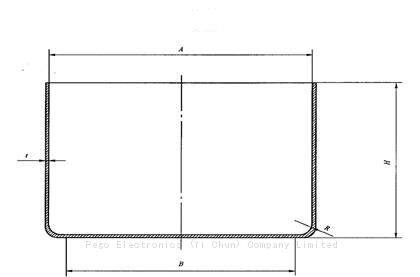

Size of vessels | |||||
Figure No. | A/mm | B/mm | H/mm | t/mm | Volume/L |
B1 | Φ140 | Φ120 | 75 | 1.5 | 1 |
B2 | Φ200 | Φ180 | 95 | 1.5 | 3 |
B3 | Φ220 | Φ200 | 110 | 1.5 | 4 |
B4 | Φ280 | Φ260 | 105 | 2.0 | 6 |

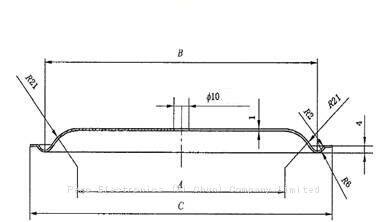

Size of lids | ||||
Figure No. | A/mm | B/mm | C/mm | t/mm |
B1 | Φ82 | Φ126 | Φ146 | 1.0 |
B2 | Φ142 | Φ186 | Φ206 | 1.0 |
B3 | Φ162 | Φ206 | Φ226 | 1.0 |
B4 | Φ222 | Φ266 | Φ286 | 1.0 |
