Help CenterIEC60884-1 Clause 22 Figure 18/19 Maximum and Minimum Withdrawal Force Test Apparatus
Related Products
-
IEC60884-1 Cold Bend Test ApparatusUS$ 2000 - 5000MOQ: 1 Piece -
IEC60884-1 Figure 20 Apparatus for Cord Retention TestingUS$ 2000 - 5000MOQ: 1 Piece
-
IEC 61032 Test Probe A With 50mm Steel Sphere and Nylon HandleNegotiableMOQ: 1 Piece
-
IEC 60529 Jointed Finger Probe for IP2X TestingNegotiableMOQ: 1 Piece
-
IEC 61032 Test Probe C With 2.5mm RodNegotiableMOQ: 1 Piece
1. Introduction

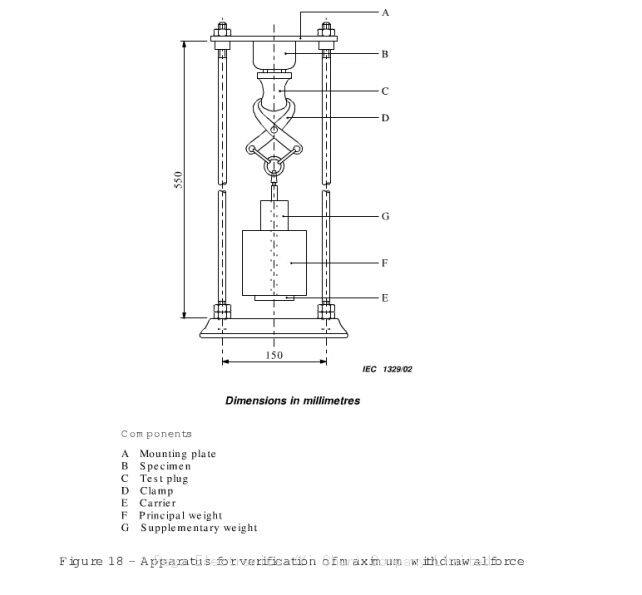

Maximum and minimum withdrawal force test apparatus is designed according to IEC 60884-1 Fig 18 and Fig 19 and VDE0620. The clamping system is easy to operate. The top plate swivels up from a horizontal position to a vertical orientation and the clamping device can be rotated in the top plate. These features allow the device to be set up in many different configurations to meet different standard requirements. Standard plugs and weights are supplied to perform testing on sockets rated up to 16A. Test plugs made from hardened steel with roughness not exceeding 0.8mm.Top plate pivots from horizontal to vertical.
2. Specification
1) Mass includes pricipal mass and supplementary mass
2) Standard configuration: 1 piece of 10A single pin gauge/16A single pin gauge/10A dipolar pin gauge/10A tripolar pin gauge/16A tripolar pin gauge
3) 1 set of clamp device, 1 piece of carrier
Rated value |
Polarity |
withdrawal force (N) |
||
Max for multiplex pin gauge |
Min for single pin gauge |
Max for single pin gauge |
||
≤10A |
2 |
40 |
1.5 |
17 |
3 |
50 |
|||
＞10A~16A |
2 |
50 |
2 |
18 |
3 |
54 |
|||
＞3 |
70 |
|||
＞16A~32A |
2 |
80 |
3 |
27 |
3 |
80 |
|||
＞3 |
100 |
|||
