EN60350-2 Figure Z1 Vessels for Cookware
1. Introduction

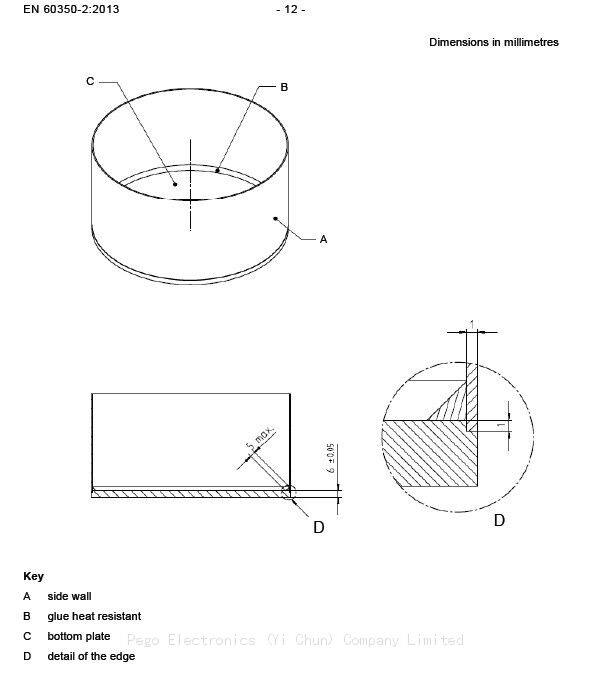

The vessels are designed according to EN60350-2:2013 figure Z1, the side wall of the vessel is made of 1.4301 stainless steel (stainless steel AISI 304) with thickness 1mm±0.05mm, the bottom of the vessel is made of 1.4016 stainless steel (stainless steel AISI430) with thickness 6mm±0.05mm, the cookware is cylindrical without handle or protrusions. And the lid is made of aluminum, and thickness is 2mm±0.05mm, each hole circle of the lid has a diameter of 16mm±0.1mm, the holes shall be evenly distributed on the hole circle. The lid is flat and can accommodate a temperature sensor in the center.
2.Size of the standardized cookware, lids and water account
|
Diameter of the cookware bottom (outside) mm |
Diameter of the lid mm |
Lid hole circle diameter mm |
Number of holes on the circle |
Total cookware height (outside) mm |
Flatness of cookware bottom mm |
Water load g |
Cooking zone size category mm |
Standardised cookware categories |
120±0.5 |
130±1 |
80±1 |
7 |
125±0.5 |
≥0
|
650 |
≥100
|
A |
150±0.5 |
165±1 |
110±1 |
11 |
125±0.5 |
≥0
|
1030 |
≥130
|
|
180±0.5 |
200±1 |
140±1 |
16 |
125±0.5 |
≥0
|
1500 |
≥160
|
B |
210±0.5 |
230±1 |
170±1 |
22 |
125±0.5 |
≥0
|
2050 |
≥190
|
C |
240±0.5 |
265±1 |
200±1 |
29 |
125±0.5 |
≥0
|
2700 |
≥220
|
|
270±0.5 |
300±1 |
230/210a±1 |
18/18a |
125±0.5 |
≥0
|
3420 |
≥250
|
D |
300±0.5 |
330±1 |
260/210a±1 |
23/22a |
125±0.5 |
≥0
|
4240 |
≥280
|
|
330±0.5 |
365±1 |
290/270a±1 |
27/27a |
125±0.5 |
≥0
|
5140 |
≥310 ≤330 |
|
a Number of holes are arranged on two hole circles | ||||||||
