Home > Instruments & Meters > Test Instrument > Test Machine > IEC EN 60350-2 Figure 4 Low Carbon Steel Test Saucepan
US$ 200 - 5000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
PG-CSS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days
Related Products
-
IEC60335-2-6 Figure 101 Aluminum Vessels for Testing HotplatesUS$ 200 - 5000MOQ: 1 Piece -
IEC60335-2-6 Figure 102 Carbon Steel Vessels for Testing Induction HotplatesUS$ 200 - 5000MOQ: 1 Piece
-
GB30720 Standard Aluminum Pans for Domestic Gas Cooking ApplianceUS$ 200 - 5000MOQ: 1 Piece
-
IEC60335-2-6 Clause 21.102 1.8KG Loaded Test VesselUS$ 200 - 5000MOQ: 1 Piece
-
IEC60335-2-9 Figure 102 4.5KG Test Load for Testing Rotating SpitsUS$ 200 - 5000MOQ: 1 Piece
Brand Name
Pego
Place of Origin
China
Model Number
PG-CSS
1. Introduction
The saucepan is made of low carbon steel having a maximum carbon content of 0.08%. It is cylindrical without metallic handles or protrusions. The diameter of the flat area at the base of the saucepan is to be at least the diameter of the cooking zone. The maximum concavity of the base of the saucepan is to be not more than 0.006a, where a is the diameter of the flat area at the base of the saucepan. The base of the saucepan shall not be convex.
2. Specification:
Diameter of Cooking Zone mm | Dimensions of the Vessel | ||
a | b | c | |
≤145 | 145 | 140 | 3 |
>145≤180 | 180 | 140 | ≧3≤5 |
>180≤220 | 220 | 140 | ≧3≤5 |

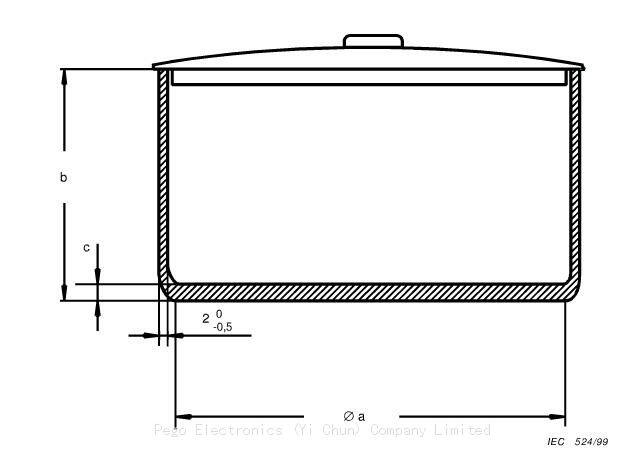

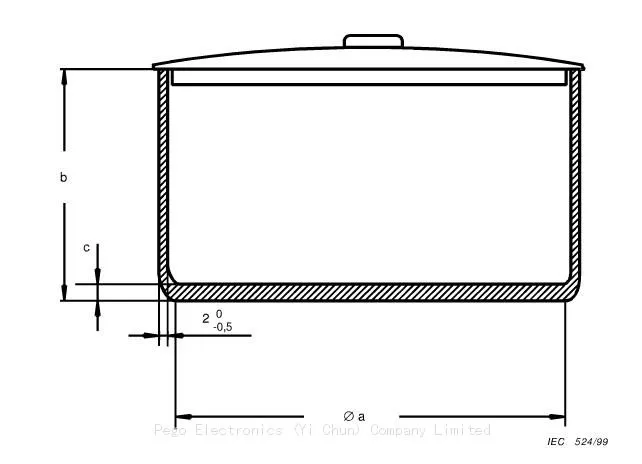

Figures:
