Home > Products > Standard Test Vessels > IEC60335-2-6 figure 101 Aluminum vessels for testing hotplates
IEC60335-2-6 figure 101 Aluminum vessels for testing hotplates
USD $200 - $5000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Shenzhen
- T/T PayPal
- 10 days
You May Like
-
IEC60335-2-6 figure 102 Carbon Steel Vessels for testing induction hotplates
-
GB30720 Standard Aluminum Pans for Domestic Gas Cooking Appliance
-
IEC60335-2-6 Clause 21.102 1.8KG Loaded Test Vessel
-
IEC60335-2-9 Figure 102 4.5KG Test Load for Testing Rotating Spits
-
EN30-1-1 Standard Aluminum Sauce Pans for Testing on Gas Burners
-
IEC60884-1 Clause 22 figure 18/19 Maximum and minimum withdrawal force Test Apparatus
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-AV |
Product Description
IEC60335-2-9 figure 103 and IEC60335-2-6 figure 101 Aluminum vessels for testing hotplates
1. Introduction
The vessels is designed according to IEC60335-2-9:2002 figure 103, IEC60335-2-6 Fig. 101 and EN30-1-1:2008 figure C2, GB4706.14-2008 figure 103 and GB16410-2007 figure 7. The vessels are made of unpolished commercial quality aluminum, have flat bottom and covered with a lid.
2. Parameter
Diameter of Cooking zone (mm) | Approximate of Dimension | ||
a (mm) | b (mm) | c (mm) | |
≤110 | 110 | 140 | 8 |
＞110≤145 | 145 | 140 | 8 |
＞145≤180 | 180 | 140 | 9 |
＞180≤220 | 220 | 120 | 10 |
＞220≤300 | 300 | 100 | 10 |

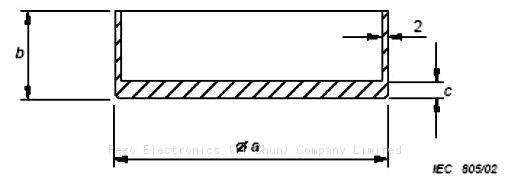

3. Figures
