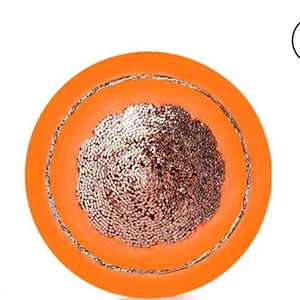

LV216 EV High-voltage Cable
Negotiable
/ Meter
50 Meters(Min. Order)
- shenzhen
- T/T
You May Like
Product Details
| Brand Name | OMG' | Place of Origin | China | |
| Model Number | FHLR2XCB2X | Type | High Voltage | |
| Application | Other, Electric Vehicles | Insulation Material | XLPE | |
| Jacket | Other, XLPE | Conductor Material | Copper |
Product Description
High voltage Cables for road vehicle
(Reference Standard: LV216-2)
Product description:
Construction | Features |
| 1、Conductor1 | 1、Rated temperature :-40℃~+(125℃, 150℃) |
| Material: Bare Copper | 2、Rated Voltage:AC 600V/DC 900V |
| 2、Insulation | 3、Short-term Aging:240h,Comply with LV216-2 |
| Material: XLPE | 4、Long-term Aging: 3000h,Comply with LV216-2 |
| Color:Orange | 5、Flame Test: Comply With LV216-2 |
| 3、Shielded | 6、Min : Bending Radius: 4*OD@OD﹤15mm ; 6*OD@OD≧15mm |
| Material:Tinned Copper | 7、Dielectric Voltage:5kVac/5min. No Breakdown |
| 4、Sheath | 8、Oil Resistance:Comply With LV216-2 |
| Material: XLPE | 9、Anti-tear Performance :>20N/mm |
| Color:Orange | 10、Environmental Requirements :Compliant with RoHS 2.0 and REACH |
Shielded high voltage cables:
| Product Series | Size | Conductor Stranded OD mm ( Ref.) | Max. Conductor resistance mΩ/m@20℃ | Permissible ampacity A (Ref.) | Over diameter mm (Ref.) | |
FHLR2XCB2X | 2.5mm2 | 2.00 | 7.60 | 30 | 5.60 | |
| 4mm2 | 2.60 | 4.71 | 40 | 5.80 | ||
| 6mm2 | 3.40 | 3.14 | 52 | 6.25 | ||
| 10mm2 | 4.40 | 1.82 | 75 | 8.30 | ||
| 16mm2 | 5.50 | 1.16 | 100 | 9.60 | ||
| 25mm2 | 7.00 | 0.743 | 125 | 11.90 | ||
| 35mm2 | 8.30 | 0.527 | 165 | 13.20 | ||
| 50mm2 | 10.00 | 0.368 | 215 | 15.00 | ||
| 70mm2 | 11.80 | 0.259 | 260 | 19.10 | ||
| 95mm2 | 13.80 | 0.196 | 320 | 21.80 | ||
