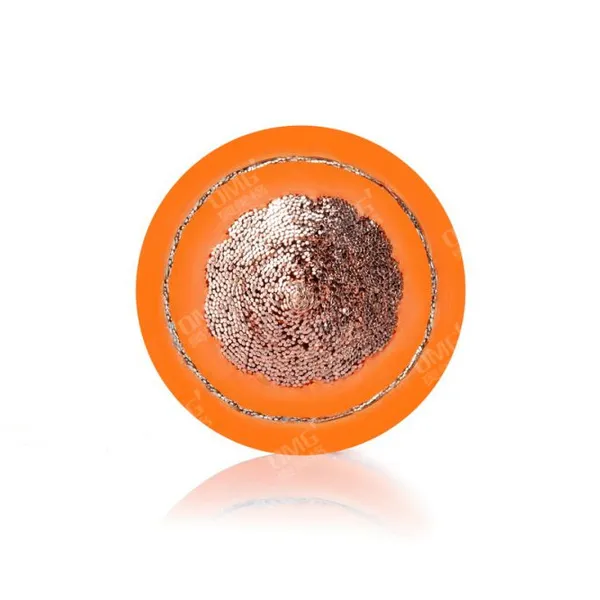

Help CenterOMG EV High Voltage Cable UL758 XLPE Insulated Shielded Wire for Electric Vehicles
Product Spotlights
Related Products
-
OMG ' Multi-Core Shielded EV High Voltage Cable for New Energy Vehicles XLPE InsulatedNegotiableMOQ: 300 Meters -
ISO19642 HV CableNegotiableMOQ: 50 Meters
-
UL758 EV High-voltage CableNegotiableMOQ: 50 Meters
-
LV216 EV High-voltage CableNegotiableMOQ: 50 Meters
-
ISO Aluminum Core EV High-Voltage CableNegotiableMOQ: 50 Meters
Cable Characteristics
Rated Temperature |
-40℃-+125℃ |
Rated Voltage |
Optional 1000V AC or 1500V AC |
Aging |
158℃*168h，comply with UL 758 |
Dielectric Voltage |
3000V AC*1min；4000V AC*1min |
Deformation Test |
121℃*4h，comply with UL 758 |
Flame Test |
VW-1，comply with UL 758 |
Cold Bend Test |
-40℃*4h，comply with UL 758 |
Environmental Requirements |
Compliant with RoHS & REACH |
Anti-tear Performance |
>20N/mm |
Min Bending Radius |
4*OD |
Product Model：Single Core Shielded Cable UL 30088 for 1000V
Specification |
Conductor Stranding Outer Diameter [mm] |
Conductor Resistance [Ω/m@20°C] |
Reference Load Current A(Ref.) |
Finished Outer Diameter |
16AWG |
1.50 |
14.10 |
15 |
5.60 |
15AWG |
1.70 |
11.20 |
20 |
5.70 |
14AWG |
1.90 |
8.88 |
24 |
5.80 |
13AWG |
2.10 |
7.02 |
28 |
5.80 |
12AWG |
2.80 |
5.58 |
34 |
6.70 |
11AWG |
3.00 |
4.43 |
39 |
6.90 |
10AWG |
3.30 |
3.51 |
45 |
7.20 |
9AWG |
3.70 |
2.78 |
53 |
7.60 |
8AWG |
4.20 |
2.23 |
64 |
8.80 |
7AWG |
4.80 |
1.77 |
75 |
9.40 |
6AWG |
5.40 |
1.40 |
85 |
10.00 |
5AWG |
6.00 |
1.11 |
100 |
12.10 |
4AWG |
6.60 |
0.882 |
115 |
12.20 |
3AWG |
7.40 |
0.7 |
135 |
13.00 |
2AWG |
8.40 |
0.555 |
160 |
13.60 |
1AWG |
9.40 |
0.44 |
175 |
15.00 |
Product Model：Single Core Unshielded Cable UL 3820 for 1000V UL 3886 for 1500V
Specification |
Conductor Stranding Outer Diameter [mm] |
Conductor Resistance [Ω/m@20°C] |
Reference Load Current A(Ref.) |
Finished Outer Diameter |
16AWG |
1.50 |
14.10 |
15 |
3.40 |
15AWG |
1.70 |
11.20 |
20 |
3.50 |
14AWG |
1.90 |
8.88 |
24 |
3.60 |
13AWG |
2.10 |
7.02 |
28 |
3.80 |
12AWG |
2.80 |
5.58 |
34 |
4.50 |
11AWG |
3.00 |
4.43 |
39 |
4.70 |
10AWG |
3.30 |
3.51 |
45 |
5.00 |
9AWG |
3.70 |
2.78 |
53 |
5.40 |
8AWG |
4.20 |
2.23 |
64 |
6.60 |
7AWG |
4.80 |
1.77 |
75 |
7.20 |
6AWG |
5.40 |
1.40 |
85 |
7.80 |
5AWG |
6.00 |
1.11 |
100 |
8.40 |
4AWG |
6.60 |
0.882 |
115 |
9.00 |
3AWG |
7.40 |
0.7 |
135 |
9.40 |
2AWG |
8.40 |
0.555 |
160 |
10.80 |
1AWG |
9.40 |
0.44 |
175 |
12.40 |
