JCS 4522 Cables
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OMG'
Place of Origin:
China
Type:
Medium Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
OMG'
Place of Origin
China
Type
Medium Voltage
Application
Industrial
Insulation Material
Other, Polyolefin rubber compound
Jacket
Other, Polyolefin rubber compound
Conductor Material
Copper

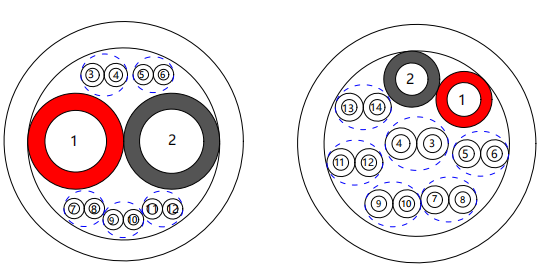

JCS 4522 standard EV charging cable product description
Certificate NO. JA50541941
| Numbering | EV-OOCT | Standards compliant | JCS 4522:2019 |
| Specification range | 2x(2.0～38)mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | ||
| Rated voltage | 600V（AC），750V（DC） | Use ambient temperature | -30℃～40℃ |
| Material | |||
| conductor： | bare copper | insulation： | Polyolefin rubber compound |
| strap： | non-woven fabric | jacket: | Polyolefin rubber compound |
| performance | |||
| Withstand voltage： | Power line AC 3000V/1min, no breakdown, control line AC 1500V/1min, no breakdown. | ||
| Mechanical strength | Insulation: Tensile strength ≥ 5 Mpa, elongation at break ≥ 200%. | ||
| Sheath: Tensile strength ≥ 8 Mpa, elongation at break ≥ 200%. | |||
| Mechanical strength after aging (90℃/96H) | Insulation: Tensile strength ≥ 80% before aging, elongation at break ≥ 65% before aging. | ||
| Sheath: Tensile strength ≥ 80% before aging, elongation at break ≥ 65% before aging. | |||
| Oil resistant (No. 2 oil or IRM 902 oil) | Tensile strength ≥ 60% before oil immersion, elongation at break ≥ 65% before oil immersion. | ||
| flame retardant | JIS C 3005, Inclination test, the flame is extinguished within 60 seconds. | ||
| Bending experiment | 20 rpm, 200 cycles, no damage, no cracks, conductor breakage rate ≤ 30%. | ||
| Drag-resistant | The distance of round trip is 1M, the drag speed is 1000M/H, and the round trip is 3000 times without exposing the insulator. | ||
| Torsion resistant | Torsion angle: ±90 degrees, torsion speed: 15 cycles/min, twist 10,000 times, no damage, no cracks, conductor breakage rate ≤ 30%. | ||
JCS 4522 Product List
| Numbering | Specification range | Reference allowable current | power line Conductor DC resistance |
| EV-OOCT | 2x2.0mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 16A | ≤9.79Ω/KM |
| 2x3.5mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 23A | ≤5.24Ω/KM | |
| 2x5.5mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 32A | ≤3.37Ω/KM | |
| 2x8.0mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 48A | ≤2.39Ω/KM | |
| 2x14.0mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 63A | ≤1.36Ω/KM | |
| 2x22.0mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 80A | ≤0.869Ω/KM | |
| 2x38.0mm²+（1～10）x(0.75～1.25)mm²+（2～10）x(0.75～1.25)mm² | 100A | ≤0.511Ω/KM |
