PSE Charging Cable

Name: PSE Charging Cable
Brand: OMG'
Availability: InStock

FOB Price

US$ 4 - 10 / Meter

500 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Japan PSE certified HVCT type electric vehicle charging cable

Reference Standard：JIS C 3312

Statement NO. :PSE23012360

Product description:

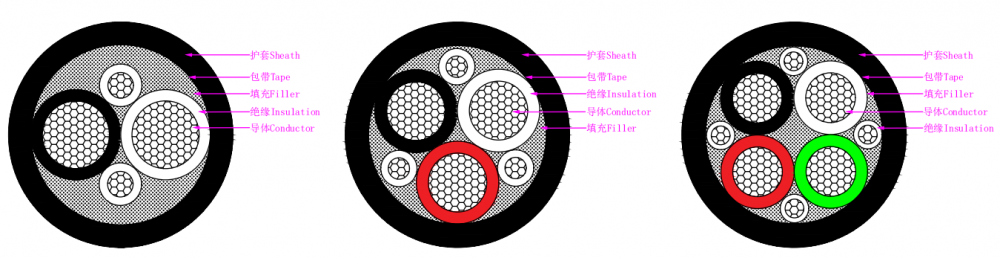

Construction	Features
1.Conductor	Ambient Temperature ：-30℃～40℃
Material: Bare Copper	Rated Voltage ： ≤600V AC , ≤750V DC
2.Insulation	Tensile Strength ：Insulation＞10MPa，after Aging Test（100℃*48H）＞85%
Material: PVC	Sheath＞10MPa，after Aging Test（100℃*48H）＞85%
Color：Black, White, Red, Green	Elongation at break ： Insulation＞100%，after Aging Test（100℃*48H）＞80%
3.Filler	Sheath＞120%，after Aging Test（100℃*48H）＞80%
Material: PPhemp or cotton yarn	Thermal Deformation ：Thickness reduction<50%
4.Tape	Bending Radius ：≥6 OD
Material:Non-woven fabrics	Flame Retardant Test：The flame must be extinguished naturally within 30s
5.Sheath
Material: PVC
Color: Black
