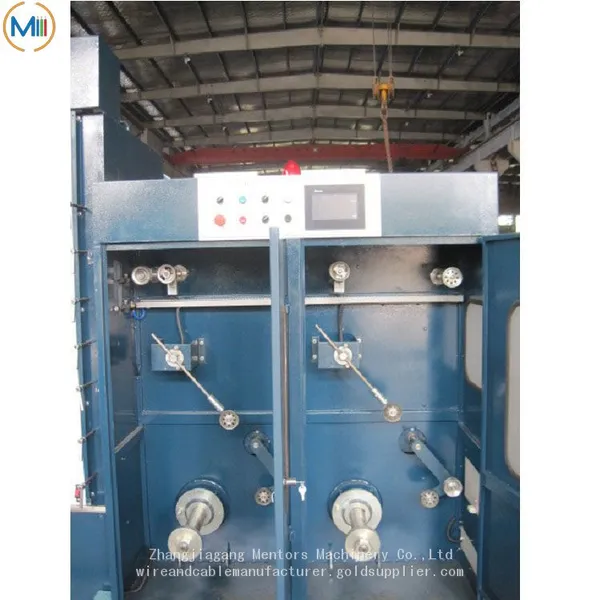

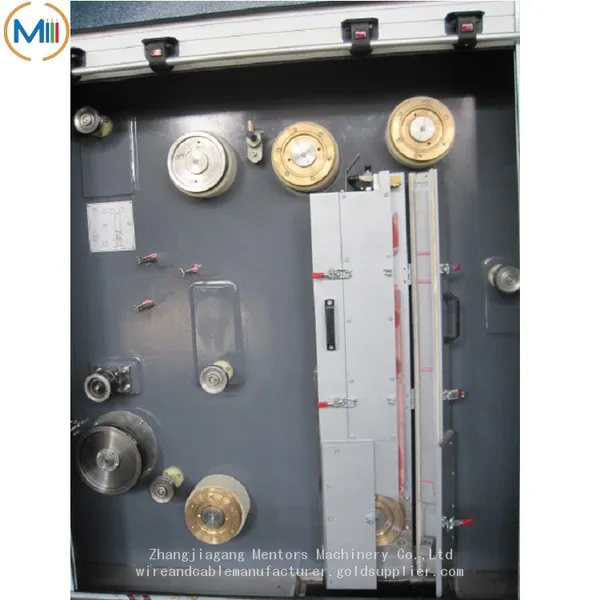

Help CenterDual Wire Fine Wire Drawing Machine
Related Products
-
MultiWire Drawing Machine for 4 WiresUS$ 72886 - 85688MOQ: 1 Set -
Multi Wire Drawing Machine for 8 WiresUS$ 87464 - 97223MOQ: 1 Set
-
Copper Multi Wire Drawing Rod Breakdown LineUS$ 237143 - 263492MOQ: 1 Set
-
Two Wires Aluminum Rod Breakdown MachineUS$ 237143 - 263492MOQ: 1 Set
-
High Speed Two Wires Drawing MachineUS$ 65597 - 75005MOQ: 1 Set
1. Application:
This machine is used for drawing and annealing copper wire with wire range 0.12-0.35mm , followed by single or dual spool take-up.
2. Main feature:
1)Max.Dies Qty: 24
2)Outlet wire size: 0.12-0.35mm
3)Max speed: 1800m/min
4)Dual Inverter Control
3. Parameters:
Machine type |
SY-DT24.2A |
Inverter control |
Dual inverter control |
Drawing dies No./max. |
24×2 |
Inlet diameter |
Ø 0.5- 1.0mm |
Out diameter |
Ø0.12- 0.35mm |
Drawing line speed |
1800mpm/max |
Slip ratio of m/c |
13% |
Fix speed capstan slip ratio |
8% |
Frame |
Welded by steel plate |
Capstan |
Ceramic plasma capstan |
Main motor |
18.5 kw |
Spooler motor |
4kw |
Annealing voltage |
DC 0-60V |
Annealing current |
DC 300A |
Protection type |
Steam or nitrogen |
Spool bobbin size |
Ø 300mm or customization |
Transmission type |
By timing belts |
Spooler control |
PID Synchronous spooler |
Detecting device |
Weight balance by swing arm |
Tension control |
Weight balance type |
Lubrication type |
Spray type |
Brake |
Magnetic brake |
Power source |
380v 50/60 HZ or customization |
4.Advantage:
(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.
(5)Two wires, energy saving and space saving, high efficiency.
