Super Fine Wire Drawing Machine

Zhangjiagang Mentors Machinery Co.,Ltd
Super Fine Wire Drawing Machine thumbnail-1
Super Fine Wire Drawing Machine thumbnail-2
Super Fine Wire Drawing Machine thumbnail-3
Super Fine Wire Drawing Machine thumbnail-4
Super Fine Wire Drawing Machine photo-1
Super Fine Wire Drawing Machine photo-2
Super Fine Wire Drawing Machine photo-3
Super Fine Wire Drawing Machine photo-4
US$ 11320 - 12480 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mentors
Place of Origin:
China
Model Number:
SY-24VD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mentors
Place of Origin China
Model Number SY-24VD
Warranty One year
Weight 1700
Dimension(L*W*H) 2000×1600×1900mm
Certification ISO
Condition New
Power(W) 5.5+2.2kw
Outlet Diameter 0.05- 0.15mm
Inlet Diameter 0.12- 0.45mm

1. Application:

This machine is special used for drawing wire 0.04-0.15mm.

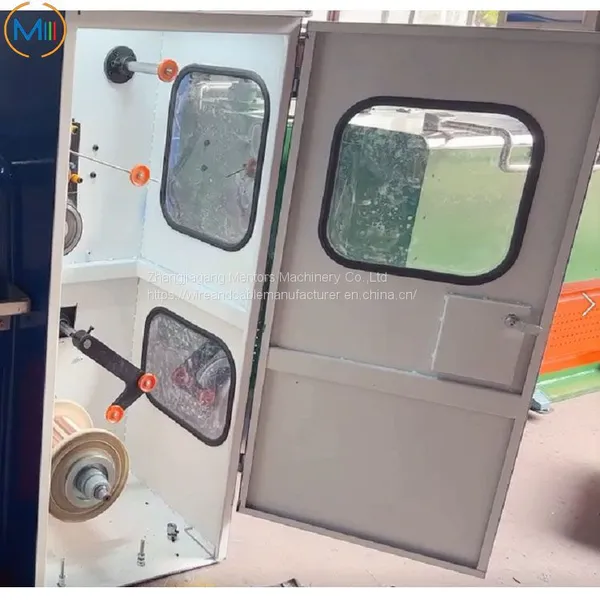

Finished wire is wound by plastic bobbin.

2. Main feature:

(1) Wire quantity: 1 wire

(2) Max.Inlet wire: 0.45 mm, outlet wire: 0.04-0.15 mm

(3) Raw material: copper

(4) Capstan quantity: 4 PCS(horizontal)

3. Paremeters:

Machine type

SY-24VD

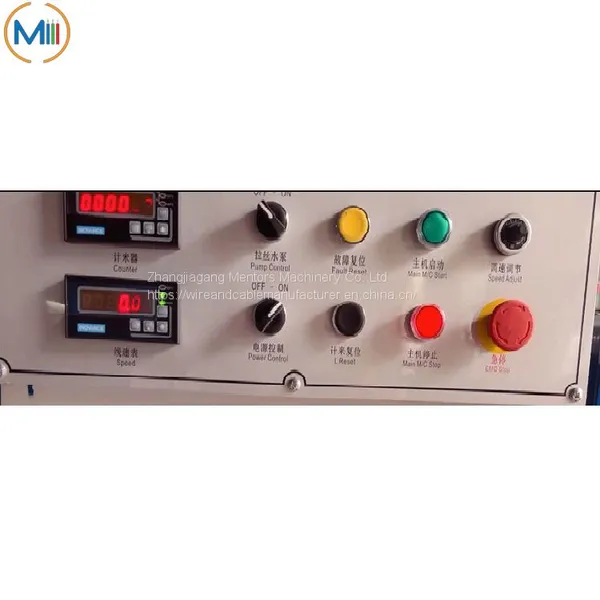

Control system

Push Button

Inverter control

Dual Inverter control

Drawing dies No./Max.

24

Inlet diameter

0.12- 0.45mm

Outlet diameter

0.05- 0.15mm

Drawing line speed

2500m/min

Slip ratio of m/c

10.5%

Frame

Ironed cast

Capstan

Ceramic plasma capstan

Main motor

5.5KW

Spooler motor

2.2KW

Spool bobbin size

Φ250mm or or customized

Machine dimension

2000×1600×1900mm

Machine weight

1700KG

4.Advantage:

1.Ironed cast body is very strong.

2. Adopting world famous bearings and belt type transmission with low noise.

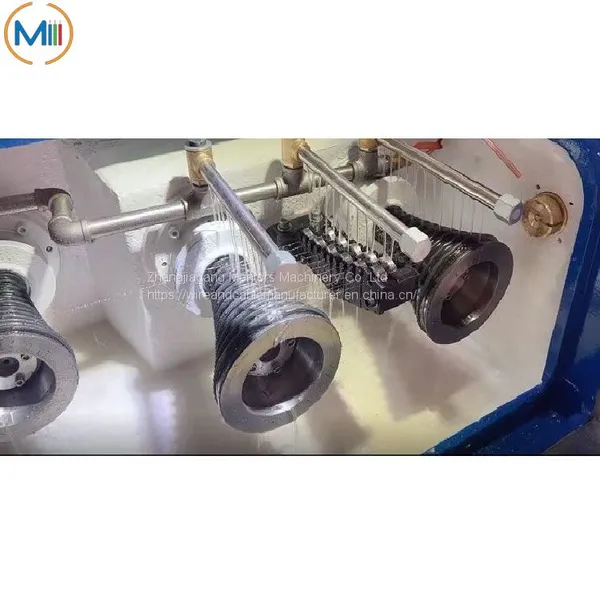

3. Drawing capstan of Super Fine Copper Wire Drawing Machine arrange it in horizontal type, which is easier for operating.




Product Tags: Wire Drawing Machine for Super Fine Wire , Super Fine Wire Drawing Machine Manufacturer , Super Wire Drawing Machine for Copper
