1. Application:
The machine is used for drawing two copper rod from 8mm to 1.2-3.5mm.
Outlet wire can go to dual take up device or compact coiler.
2. Main feature:
1)Max.Dies Qty: 13
2)Outlet wire size: 1.2~3.5mm
3)Max speed:28m/s
4)Individual drives
3. Parameters:
Machine Type |
LSD450/13-2 |
|
Drawing Wire No. |
2 Wires |
|
Drawing Capstan Dia. (mm) |
φ450 |
|
Max. Die No. |
13 * 2 |
|
Inlet Dia. (mm) |
Copper |
2 * φ8 |
Outlet Dia. (mm) |
Copper |
2* φ1.2~φ3.5 |
1*φ3.5~φ4.5 |
||
Max. Drawing Speed (m/s) |
28 |
|
Main Motor (KW) |
45 / 55 / 75 /132 KW (AC) |
|
Capstan Arrangement |
Horizontal Type |
|
Take-up Type (Optional） |
Double Take-up/Single Take-up/ Coiler |
|
Optional Equipment |
450T-2 Horizontal continuous annealing |
|
Type |
450T-2 |
|
Annealing Wire No. |
2 Wires |
|
Annealing Wire Dia.(mm) |
2* φ1.2~φ3.2mm, 1*φ3.5~φ4.5mm |
|
Annealing Voltage ( V ) |
0 ~ 55 V |
|
Annealing Current ( A ) |
0 ~ 8000 A |
|
Max. Speed(m/s) |
25 m / s |
|
4.Advantage:

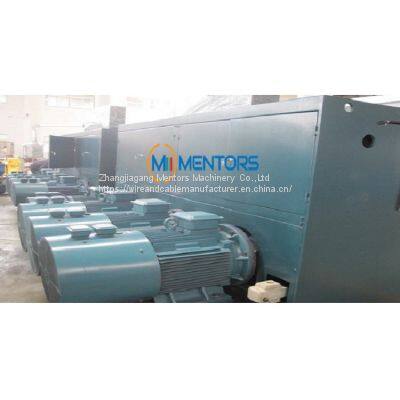

1) Every drum is run by single motor with drivers.
2) Two wires produce at the same time to ensure high production capacity.
