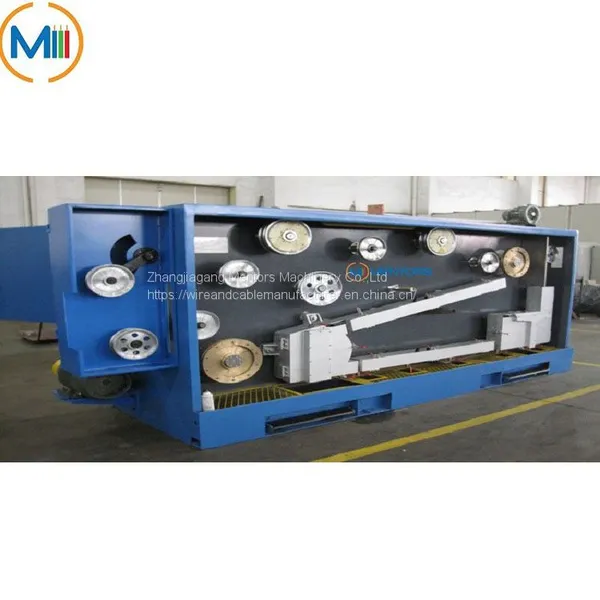

Help CenterIntermediate Wire Drawing Machine With Annealer
Related Products
-
High Speed Intermediate Wire Drawing MachineUS$ 45540 - 50600MOQ: 1 Set -
Super Fine Wire Drawing MachineUS$ 11320 - 12480MOQ: 1 Set
-
Fine Wire Drawing Machine With AnnealingUS$ 19999 - 21000MOQ: 1 Set
-
Copper Multi Wire Drawing Rod Breakdown LineUS$ 237143 - 263492MOQ: 1 Set
-
Wire Buncher MachineUS$ 7936 - 34921MOQ: 1 Set
1. Application:
This type is used for drawing copper wire and other alloy wire with annealer from 2.6-3mm to 1.13-2.78mm.
2. Main feature:
1)Max.Dies Qty: 9
2)Outlet wire size: 1.13-2.78mm
3)Max speed:20m/s
4)Three or four sections horizontal annealing
3.Parameters:
Machine type |
SY-9DHT |
Control system |
PLC with touch screen |
Inverter control |
Dual inverter control |
Drawing dies No./max. |
9 |
Inlet diameter |
Ø 2.6- 3.0mm |
Out diameter |
Ø1.13- 2.78mm |
Drawing line speed |
1200mpm/max |
Slip ratio of m/c |
18% |
Fix speed capstan slip ratio |
15.5% |
Frame |
Ironed cast |
Capstan |
Ceramic plasma capstan |
Main motor |
55kw |
Spooler motor |
11kw |
Capstan dia.(max) |
Ø 300mm |
Fix speed capstan dia. |
Ø 300mm |
Dia.of annealing |
Ø 350mm |
Annealing voltage |
DC 0-60V |
Annealing current |
DC 2500A |
Protection type |
Steam or nitrogen |

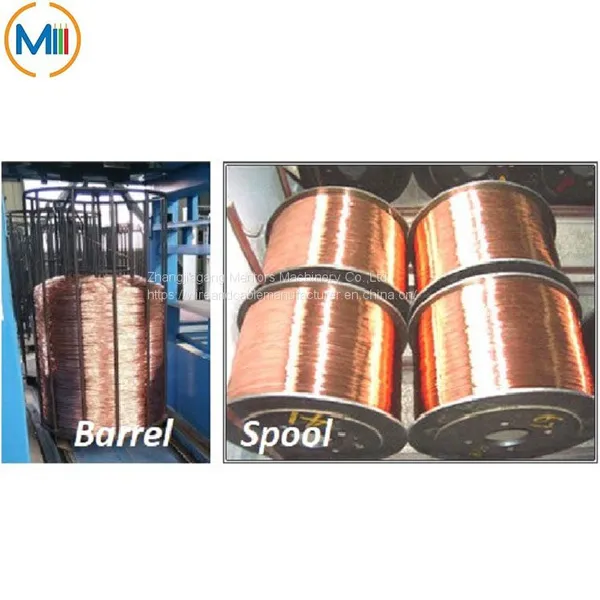

Spool bobbin size |
Ø 500mm-630mm |
4-Advantage:
1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.
2). Ironed cast and Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
