1. Application:

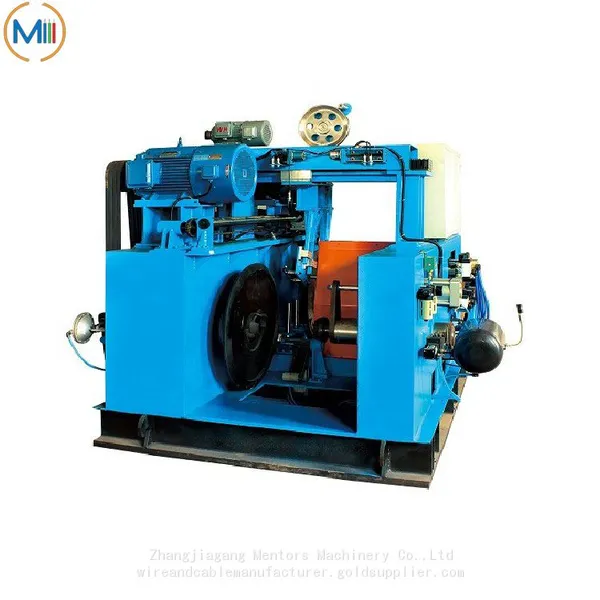

Two Wires Aluminum Rod Breakdown Machine is used for drawing two Alloy and Alloy alloy rod from 9.5mm to 2.2-5.0mm.
Outlet wire can go to dual take up device or compact coiler.
2. Main feature:
1)Max.Dies Qty: 11
2)Outlet wire size: 2.2~5.0mm
3)Max speed: 25m/s
3. Parameters:
Machine Type |
LSD450/11-2 |
|
Drawing Wire No. |
2 Wires |
|
Drawing Capstan Dia. (mm) |
φ450 |
|
Max. Die No. |
11 * 2 |
|
Inlet Dia. (mm) |
AL, Al Alloy |
2 * φ9.5 |
Outlet Dia. (mm) |
AL, Al Alloy |
2*φ2.2~φ5.0 |
Max. Drawing Speed (m/s) |
25 |
|
Main Motor (KW) |
45 / 55 / 75 /132 KW (AC) |
|
Capstan Arrangement |
Horizontal Type |
|
Take-up Type (Optional) |
Double Take-up/Single Take-up/ Coiler |
|
4.Advantage:

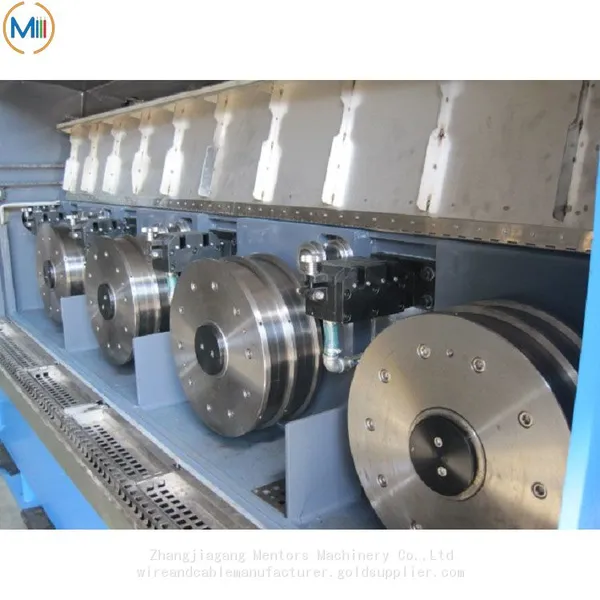

1)Every drum is run by single motor with drivers.
2)Two wires produce at the same time to ensure high production capacity.
3)Energy saving, space saving.
4)Door up and down automatically make threading easily.
5)Tension rate can be adjustable according to different raw material.
6)Quick die change system.
