High Speed Intermediate Wire Drawing Machine

High Speed Intermediate Wire Drawing Machine thumbnail-1
High Speed Intermediate Wire Drawing Machine thumbnail-2
High Speed Intermediate Wire Drawing Machine thumbnail-3
High Speed Intermediate Wire Drawing Machine thumbnail-4
High Speed Intermediate Wire Drawing Machine photo-1

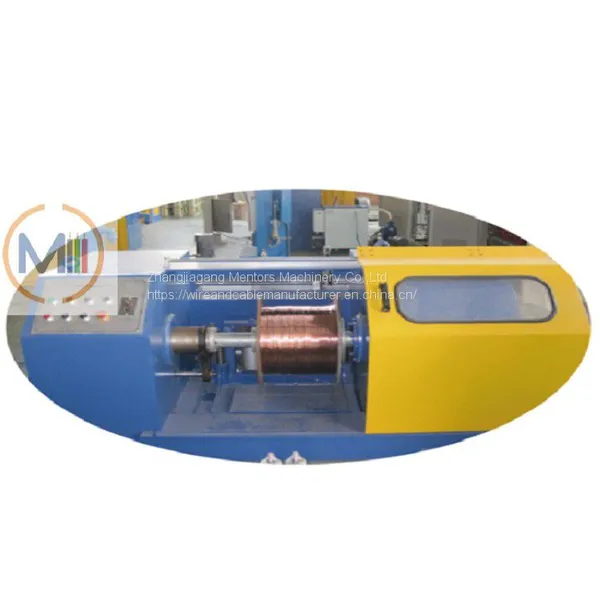

High Speed Intermediate Wire Drawing Machine photo-2

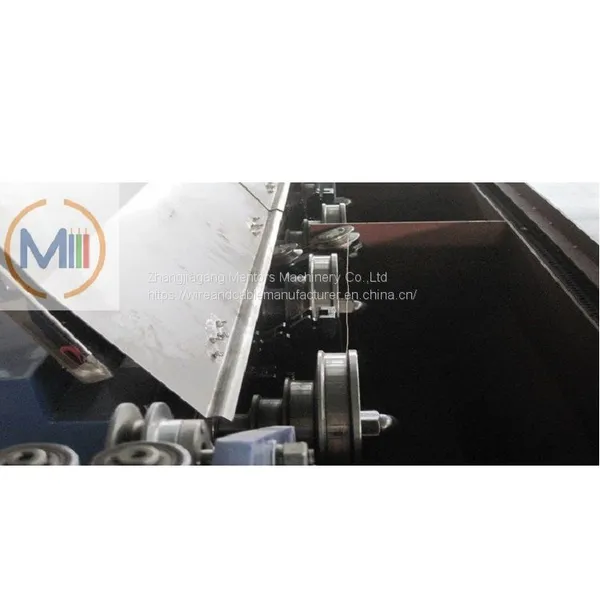

High Speed Intermediate Wire Drawing Machine photo-3
High Speed Intermediate Wire Drawing Machine photo-4
US$ 45540 - 50600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mentors
Place of Origin:
China
Model Number:
SY-17DH
Contact Supplier Request Quote Chat Now
Zhangjiagang Mentors Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mentors
Place of Origin China
Model Number SY-17DH
Warranty One year
Certification ISO
Condition New
Power(W) 55+11KW
Outlet Diameter 0.4-1.6mm
Inlet Diameter 2.6-3.0

1. Application:

This type is used for drawing and annealing copper wire and other alloy wire from 2.6-3mm to 0.4-1.6mm.

2. Main feature:

1)Max.Dies Qty:  17
2)Outlet wire size: 0.4-1.6mm
3)Max speed:2000m/min
4) Raw material: copper wire, brass wire


3.Parameters:

Machine type

SY-17DH

Control system

PLC

Inverter control

Two inverters control

Drawing dies No./max.

17

Inlet diameter

Ø 2.6- 3.0mm

Out diameter

Ø0.4- 1.6mm

Drawing line speed /max

2000m/min

Slip ratio of m/c

20%

Fix speed capstan slip ratio

15.5%

Frame

Ironed cast

Capstan

Carbon fibre plasma capstan

Main motor

55kw

Spooler motor

11kw

Fix speed capstan dia.

Ø 250mm

Spool bobbin size

Ø 500mm -630mm

Optional take-up machine

1-Drop coiler  2-Annealing part 3-Dual-spool take-up


4-Advantage:

1).Special seal system between the gear box and drawing section to prevent oil leakage and mixed.

2).Ironed cast and Wear-resistant capstan can keep long life.



Product Tags: Intermediate Wire Drawing Machine with Bobbin Take-up , High speed Intermediate Wire Drawing Machine , China Intermediate Wire Drawing Line
