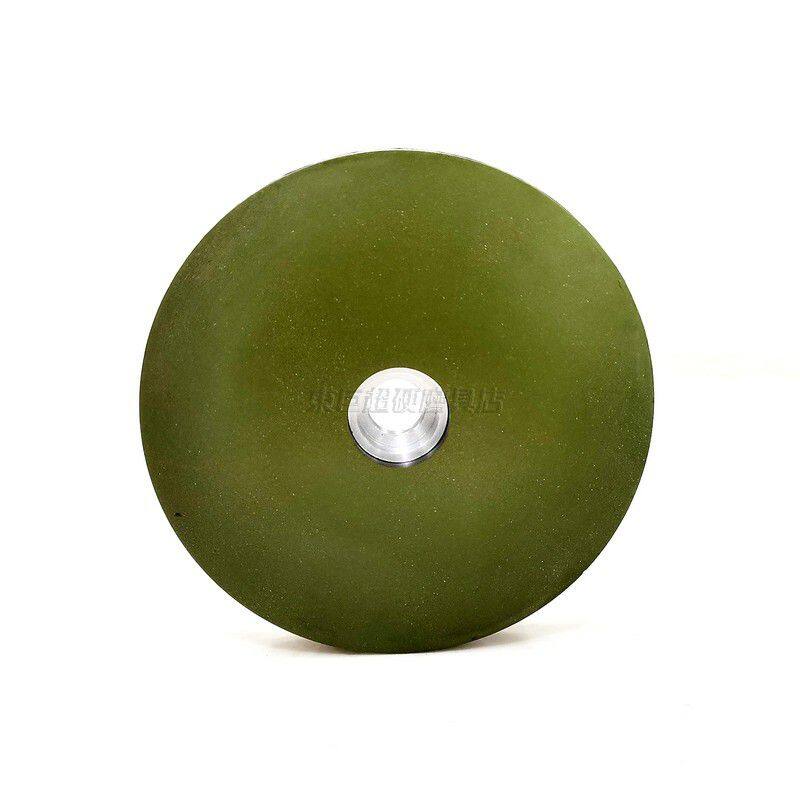

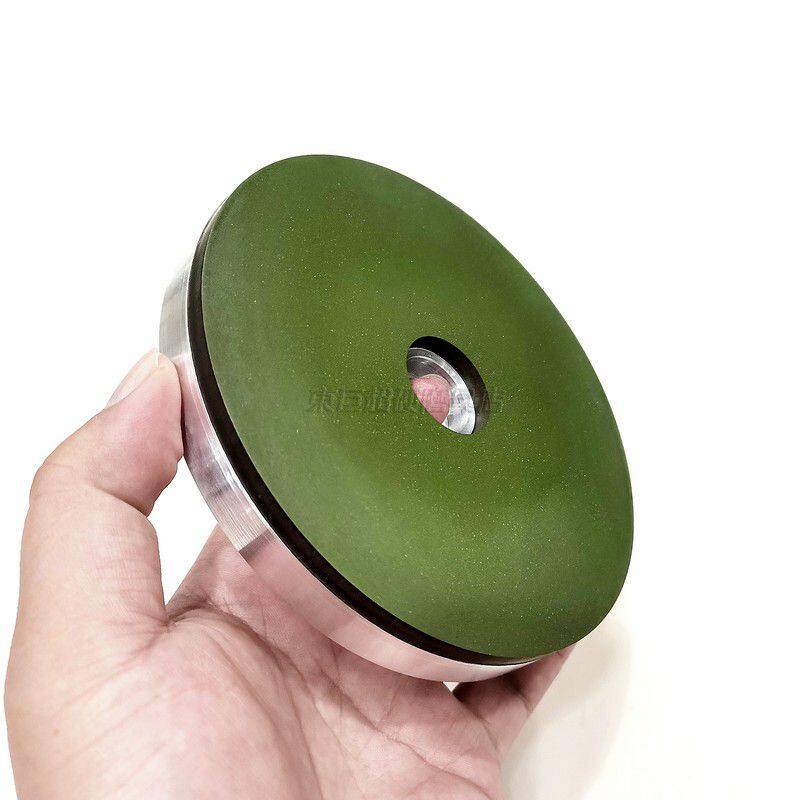

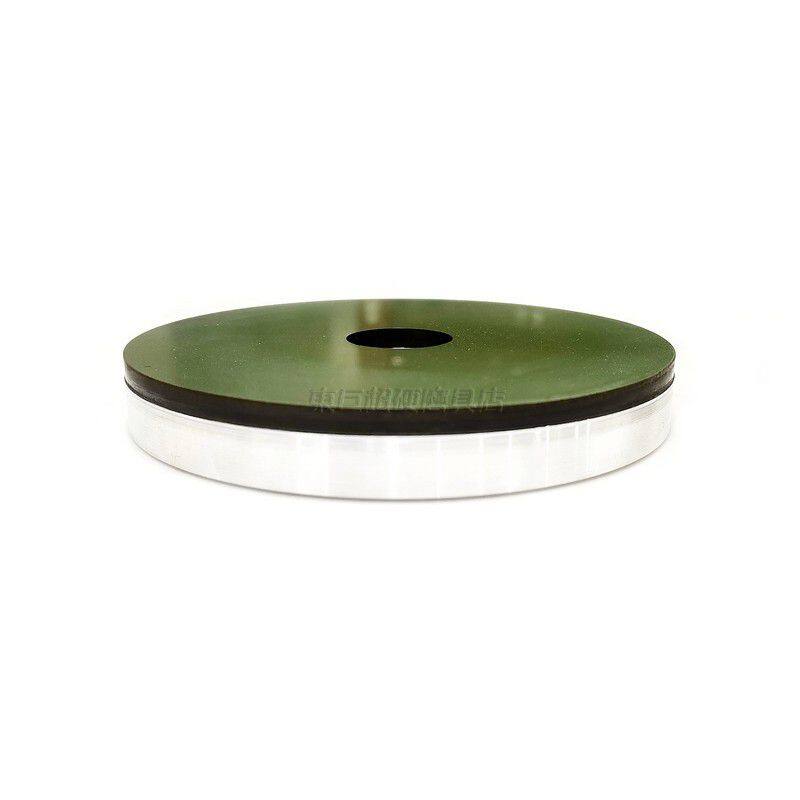

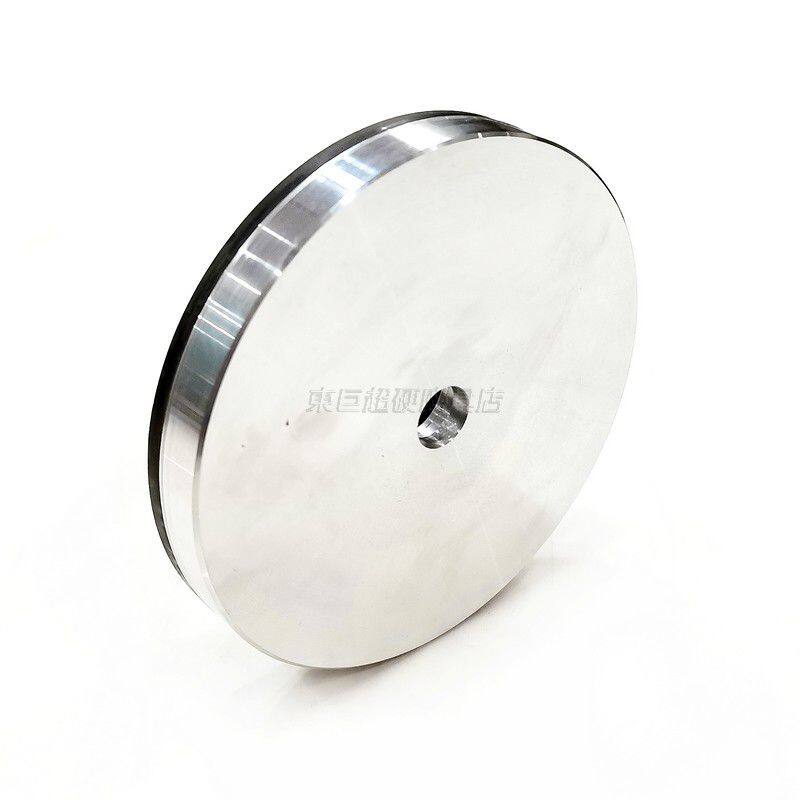

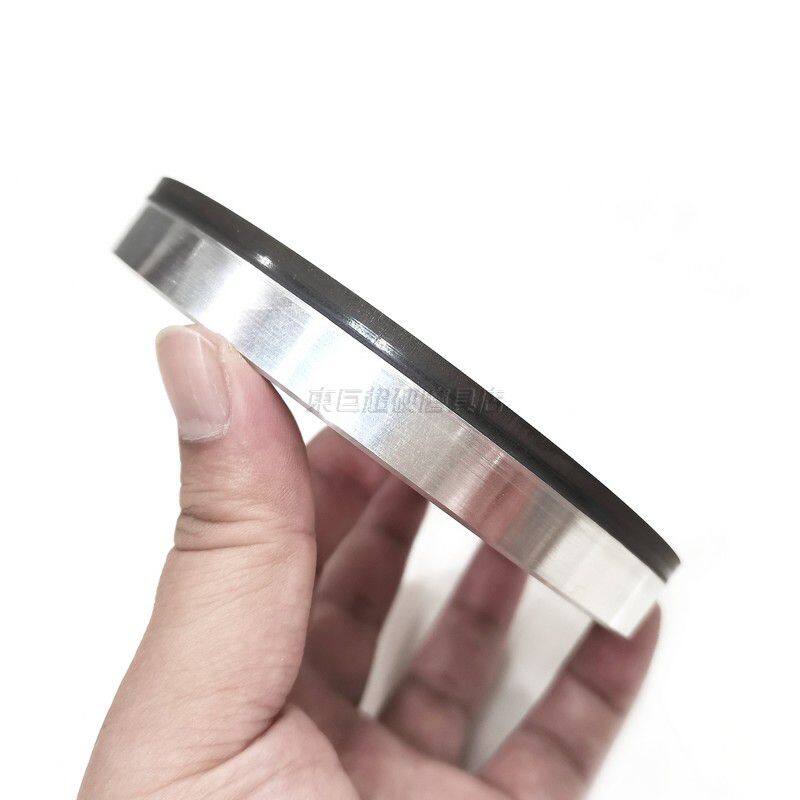

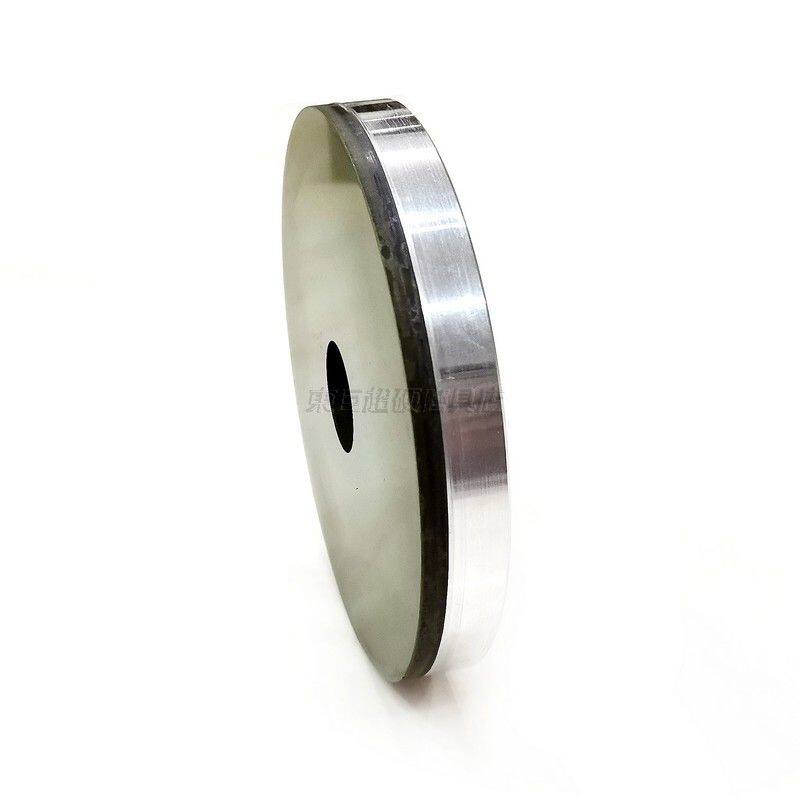

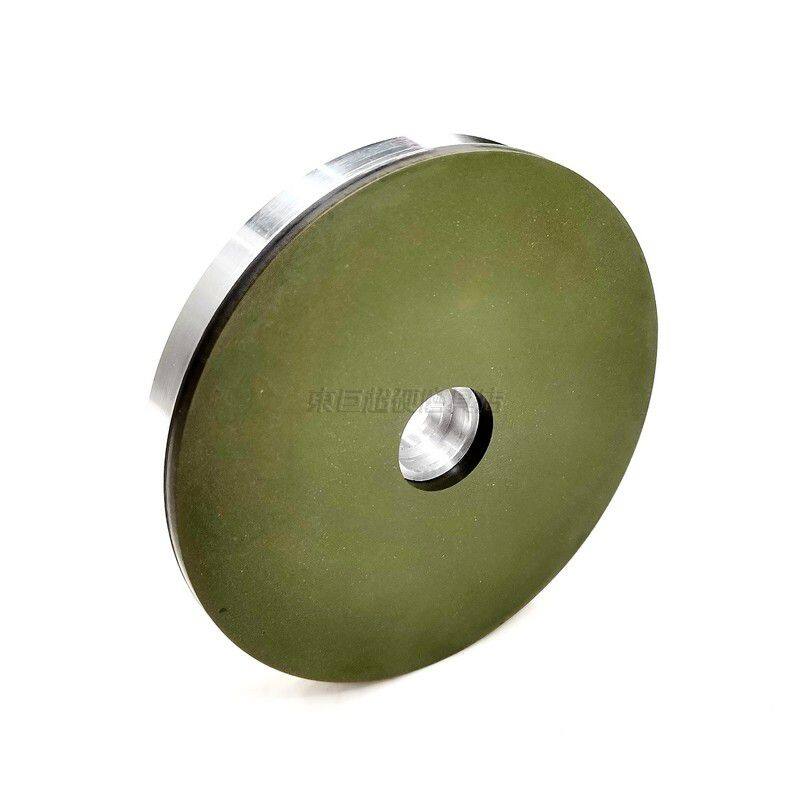

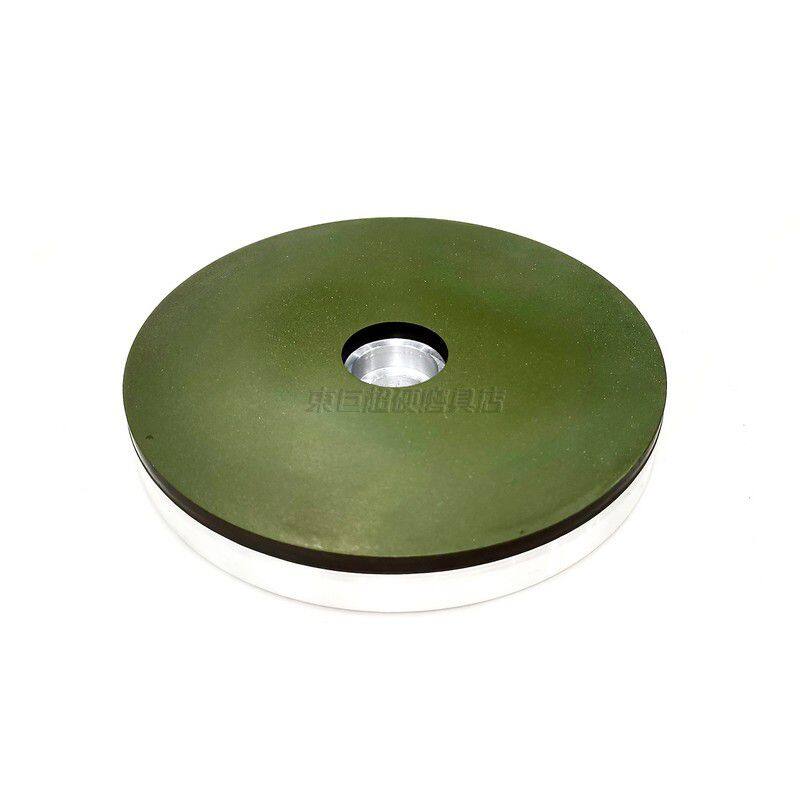

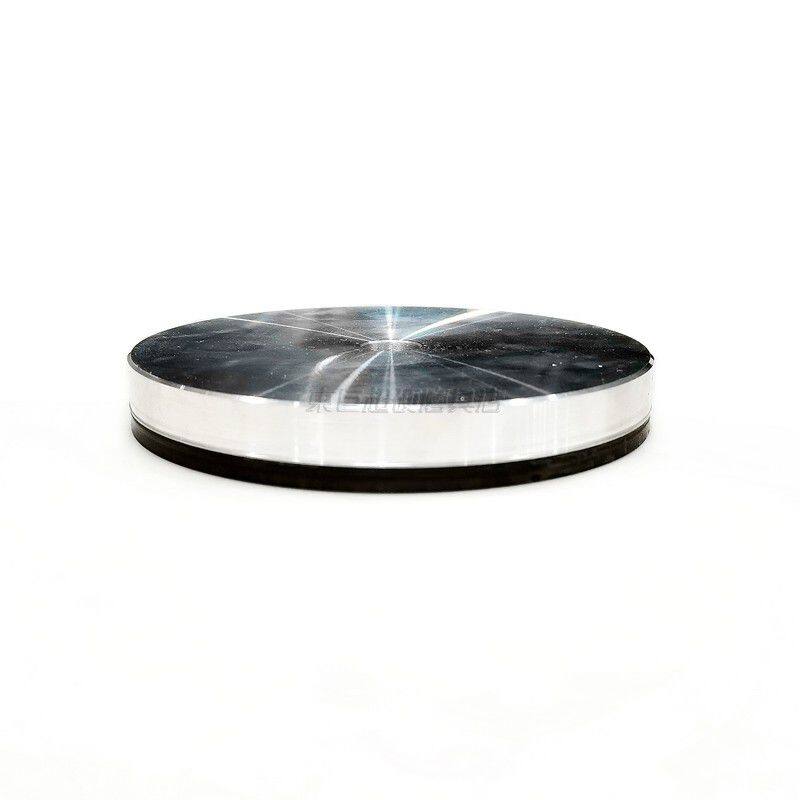

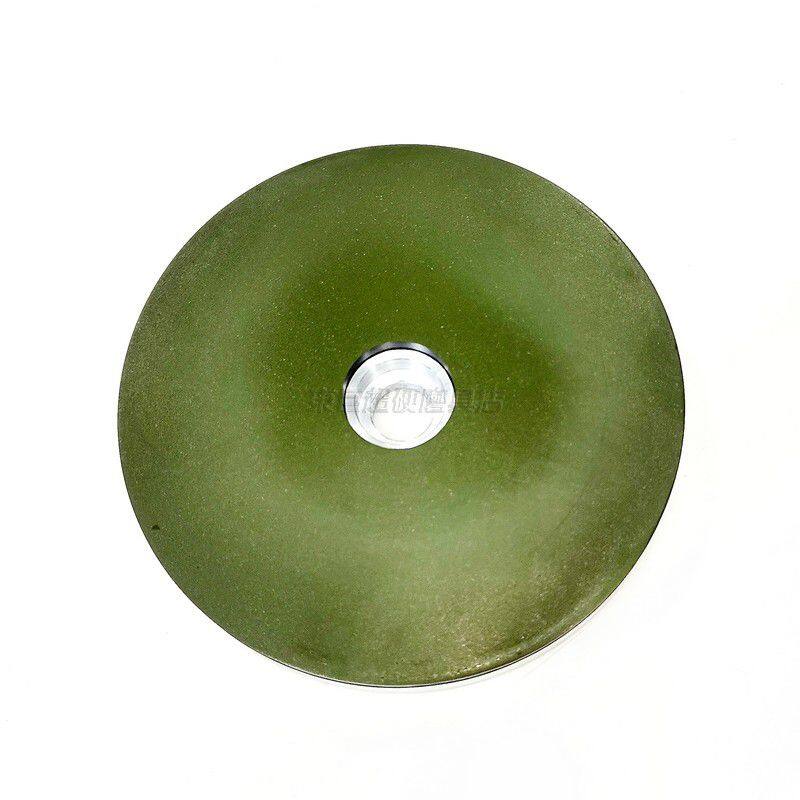

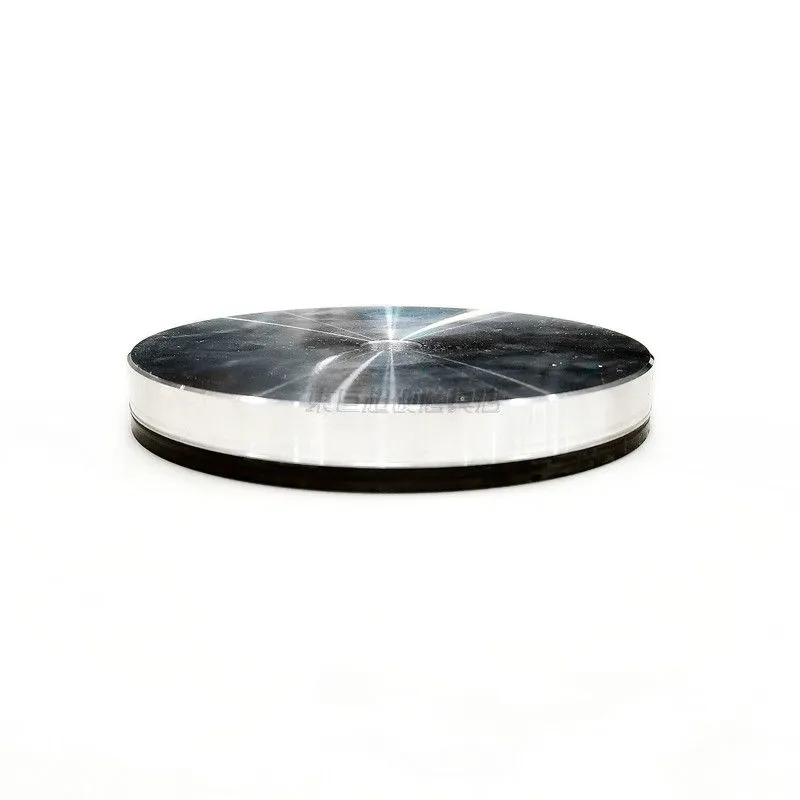

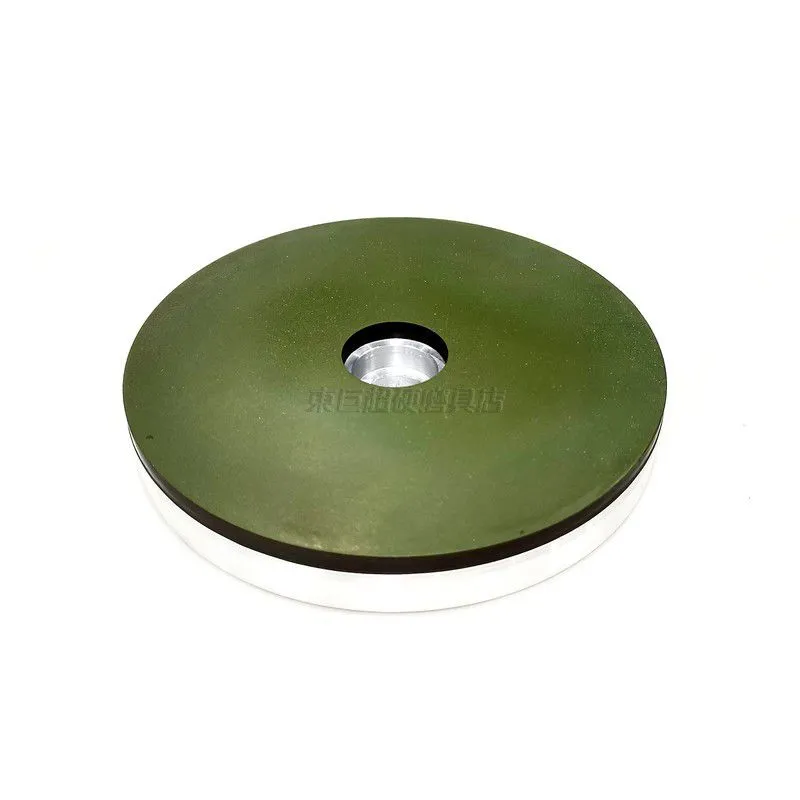

Help Center125mm Resin Diamond Grinding Disc Green Abrasive SDC2000 Mesh Metallographic Grinding Machine Polishing
Related Products
-
Resin Bond Diamond Surface Grinding Wheel for Tungsten Carbide Glass Ceramic Finishing PolishingCNY 750 - 1100MOQ: 1 Piece -
1A1 Plain Shape Diamond Grinding Wheel for CarbideCNY 350 - 650MOQ: 5 Pieces
-
DC53 Die Steel Surface Grinding Rough Cubic Boron Nitride Resin Grinding Wheel CBN100 MeshCNY 450 - 500MOQ: 1 Piece
-
Industry 14A1 Flat Shaped Resin Bond Diamond Grinding Wheels For Magnetic CoresCNY 400 - 500MOQ: 5 Pieces
-
PSX Resin Bonded Diamond Grinding Wheels With a 50 Degree Single Bevel Outer Diameter of 150mmCNY 400 - 480MOQ: 5 Pieces
Resin grinding disc is a tool used for grinding and polishing, typically used for grinding and polishing hard materials such as gemstones, ceramics, and hard alloys. It is made by embedding many diamond particles onto a disc-shaped aluminum substrate. During the grinding process, the diamond grinding disc removes the protrusions on the surface of the ground material through friction and scraping, making it smooth and shiny. Resin binder is a type of adhesive that binds diamond particles together, which can maintain stability and lifespan of diamond grinding discs. SDC2000 mesh is the particle size of a diamond grinding disc, indicating the size and distribution of its diamond particles. Precision polishing tools refer to the process of using diamond grinding discs for high-precision polishing, which requires the use of professional metallographic grinders to complete. In addition, diamond grinding discs can be customized to meet different grinding and polishing needs. Customized diamond grinding discs can be designed and produced according to specific applications and requirements to achieve better grinding and polishing effects. Overall, diamond grinding discs are efficient, high-precision, and high hardness grinding and polishing tools used in industrial production and scientific research fields.
Brand: Dongju
Model: 1A2
Material: Aluminum alloy
Category: Resin binder
Diameter: 125mm
Aperture: 14mm
Thickness: 17mm
Abrasive ring width: 50mm
Abrasive thickness: 5mm
Abrasive: Diamond
Particle size: 2000#

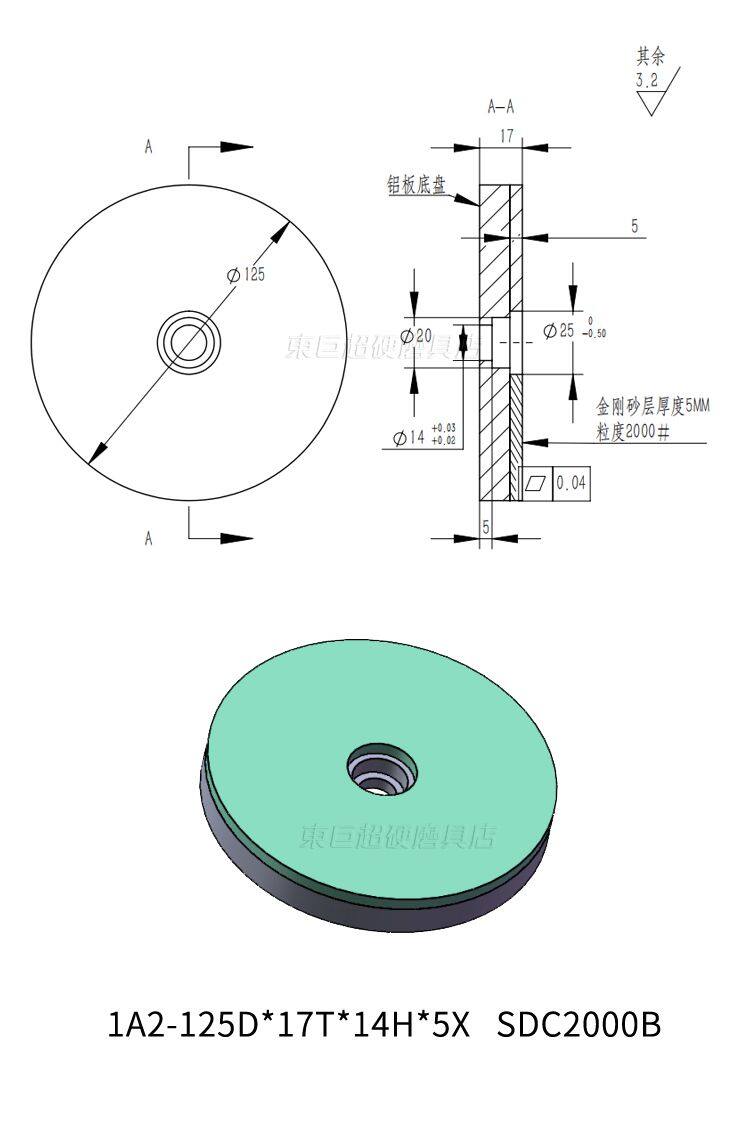

Specification: 125D * 17T * 14H * 5X
Customized: Yes
Imported or not: No
Origin: Dongguan
Weight: 1200g
Diamond grinding disc function and purpose: usually used for precision grinding and polishing of hard materials
Application range of resin grinding disc: gemstones, ceramics, and hard alloys, etc
