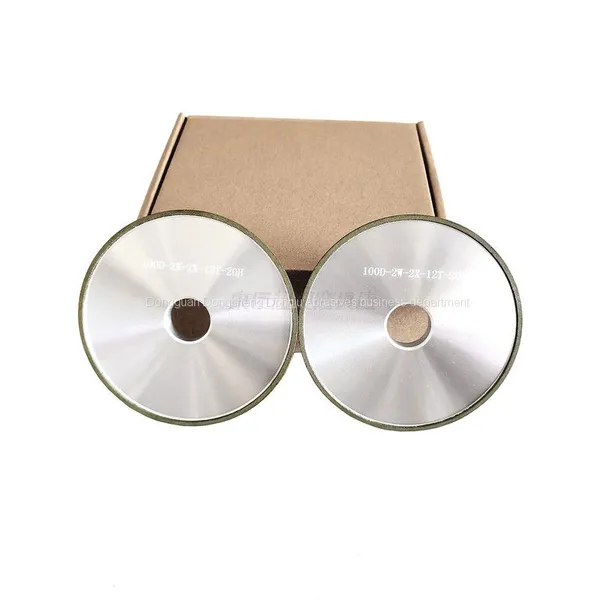

Help Center4C9 Disc-shaped Cubic Boron Nitride Grinding Wheel Resin Bond With Outer Diameter of 125 B151 Milling Cutter, Reamer, and Broach
Related Products
-
125mm Resin Diamond Grinding Disc Green Abrasive SDC2000 Mesh Metallographic Grinding Machine PolishingCNY 1500 - 1800MOQ: 2 Pieces -
Resin Bond Diamond Surface Grinding Wheel for Tungsten Carbide Glass Ceramic Finishing PolishingCNY 750 - 1100MOQ: 1 Piece
-
1A1 Plain Shape Diamond Grinding Wheel for CarbideCNY 350 - 650MOQ: 5 Pieces
-
DC53 Die Steel Surface Grinding Rough Cubic Boron Nitride Resin Grinding Wheel CBN100 MeshCNY 450 - 500MOQ: 1 Piece
-
Industry 14A1 Flat Shaped Resin Bond Diamond Grinding Wheels For Magnetic CoresCNY 400 - 500MOQ: 5 Pieces

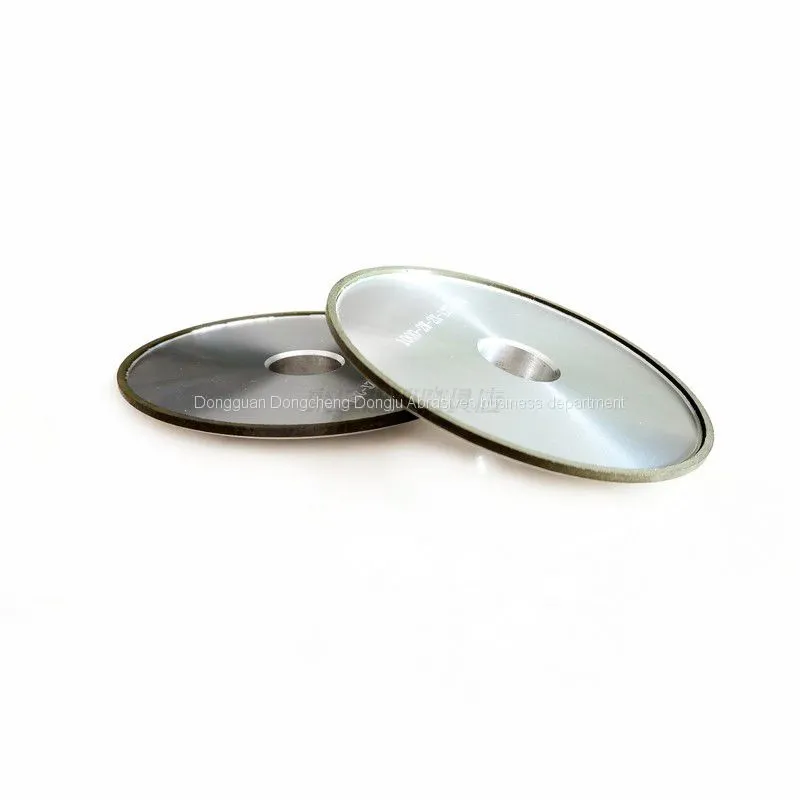

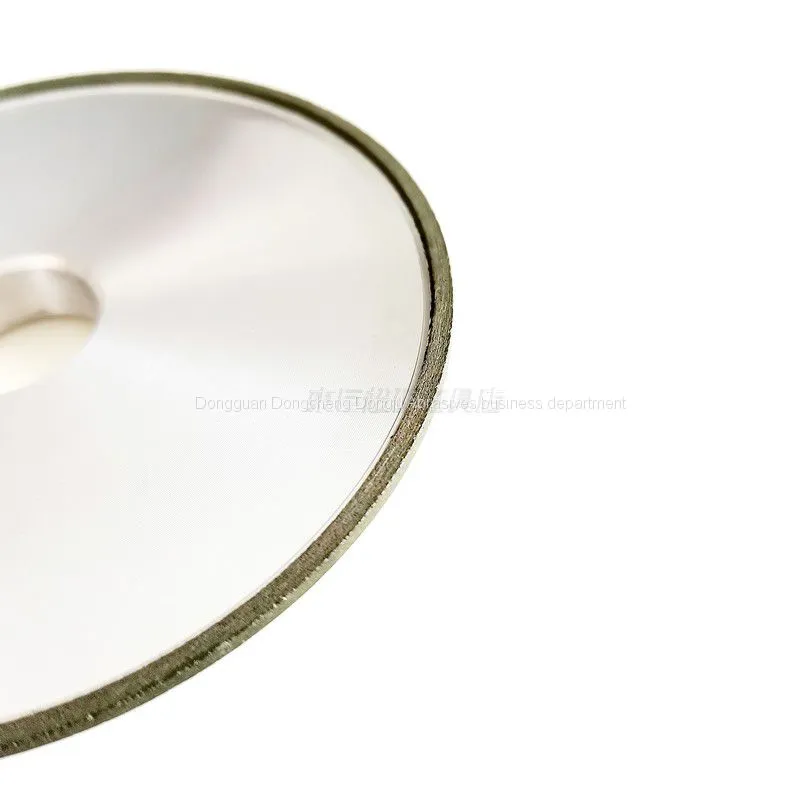

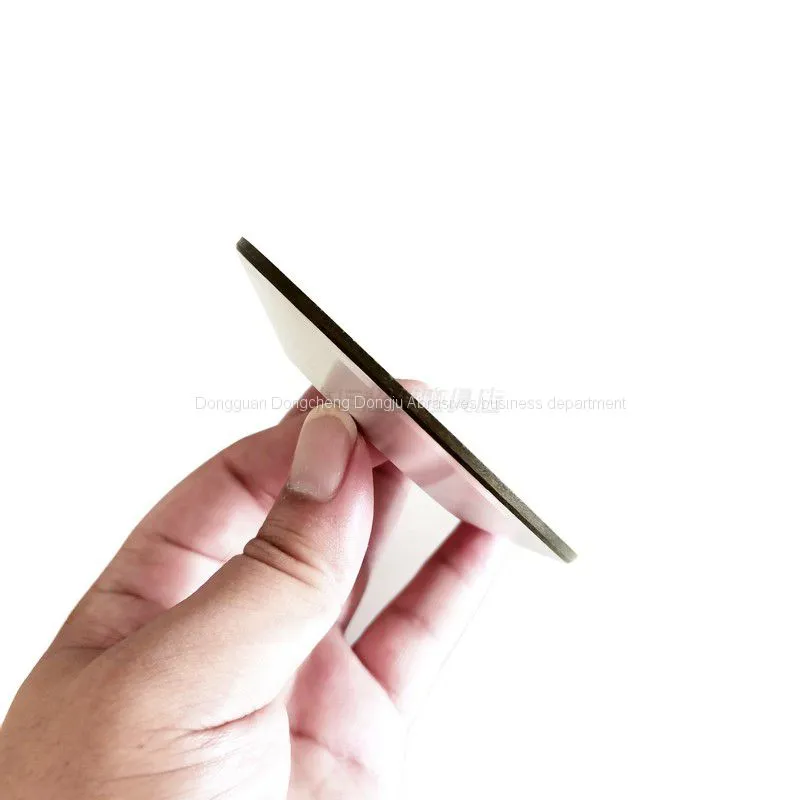

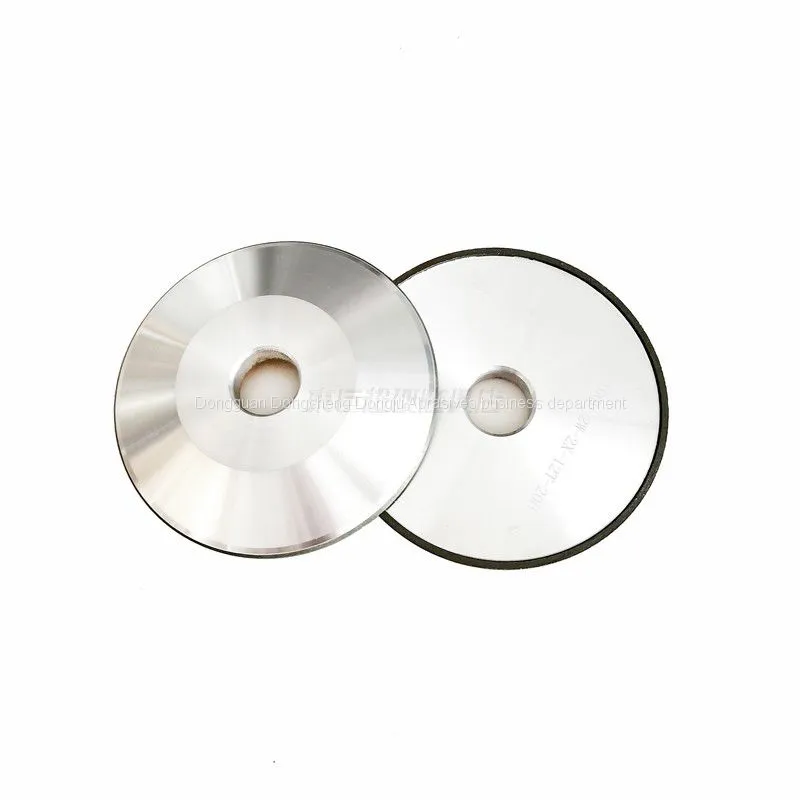

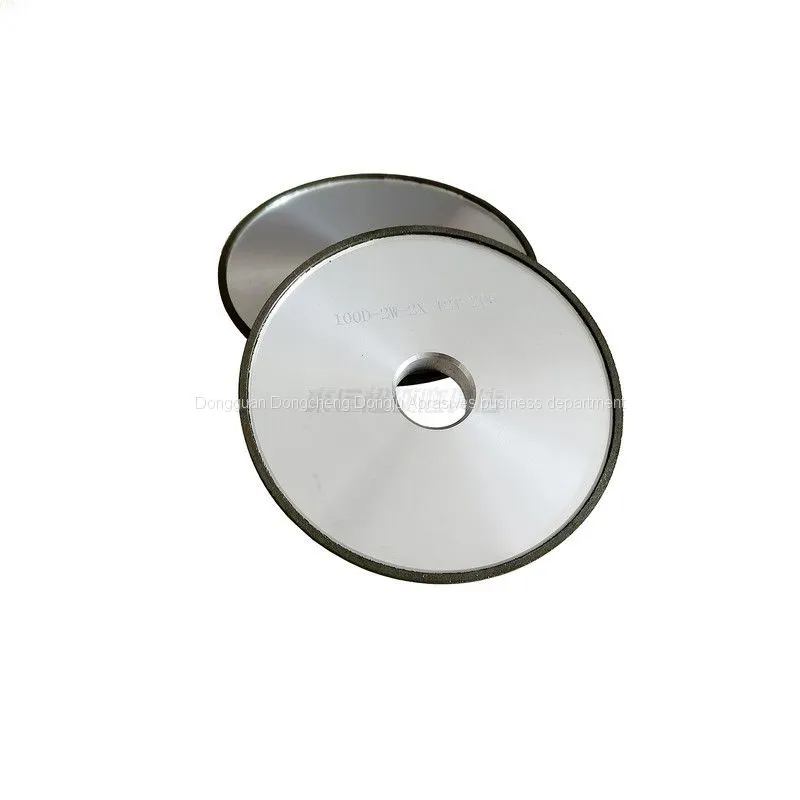

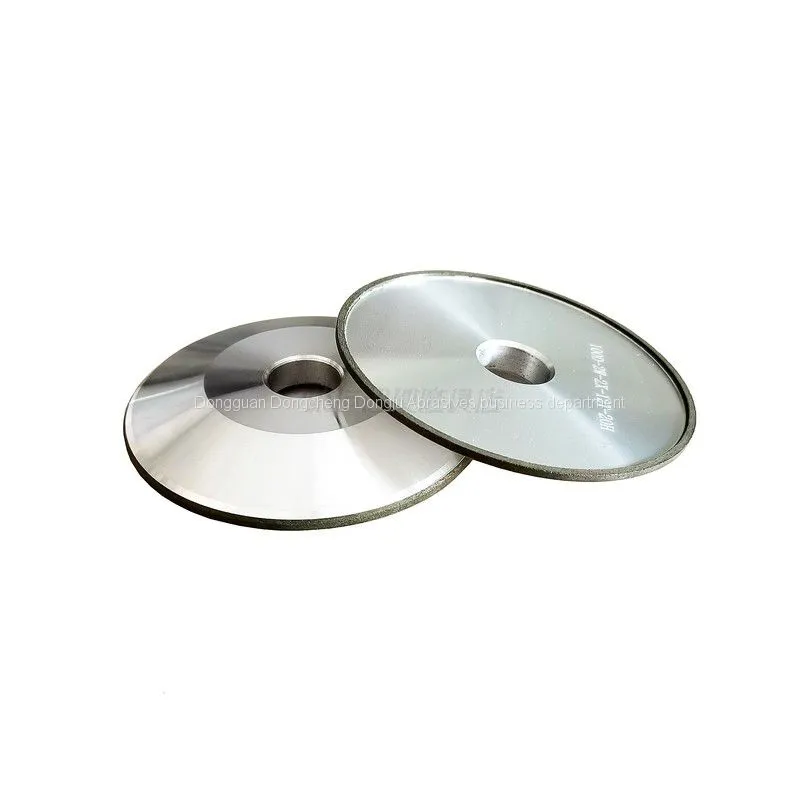

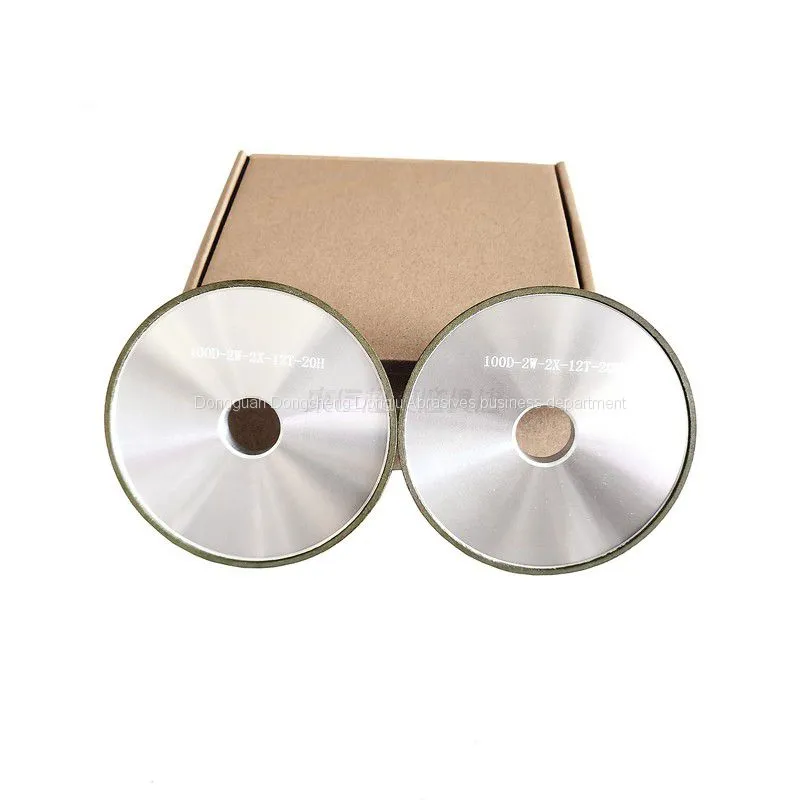

Disc shaped cubic boron nitride grinding wheel is a professional grinding wheel used for tool grinding and machining centers. It uses resin binder, has high hardness and heat resistance, and also has good grinding performance and cutting ability. CBN resin grinding wheels have high hardness, high strength, and strong grinding ability, mainly used for grinding high hardness carbon steel, high-speed steel, and metal cutting tools. Model 4C9 refers to the shape of the grinding wheel, with the abrasive located at the corners, mainly used for grinding milling cutters, reamers, broaches, etc. The grinding wheel generates little heat during grinding and is not easily clogged, reducing the phenomenon of workpiece deformation during grinding.
Brand: Dongju
Model: 4C9
Shape: Dish shaped
Material: cubic boron nitride
Category: Resin binder
Matrix: aluminum alloy
Diameter: 125mm
Width: 12mm
Wall thickness: 2.8mm
Particle size: B151
Angle: 20 °
Inner hole: 20mm

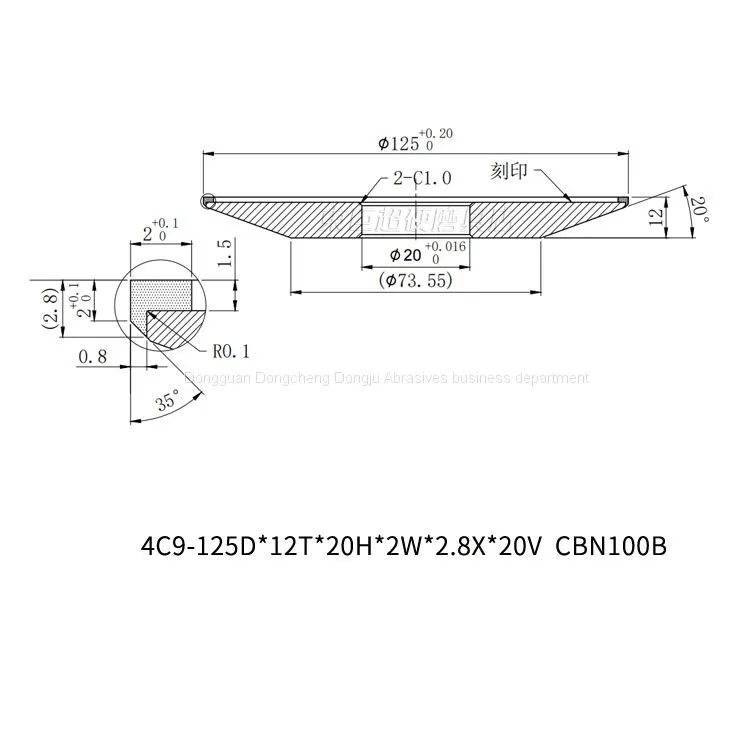

Specification: 125D * 12T * 20H * 2W * 2.8X * 20V
Customization: Yes
Imported or not: No
Origin: Dongguan
Function and purpose: suitable for grinding milling cutters, reamers, broaches, and other cutting tools
