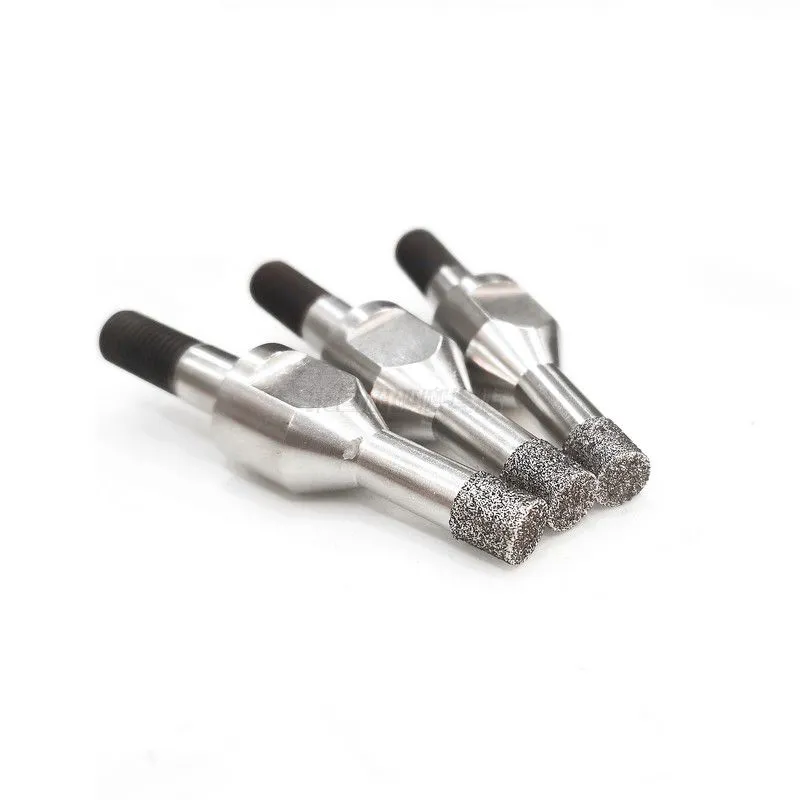

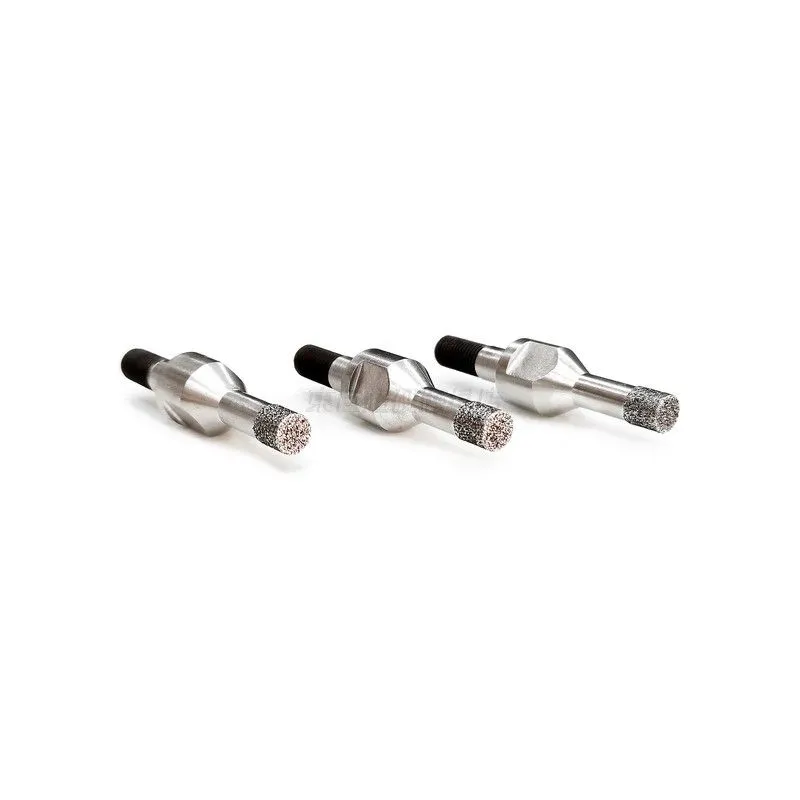

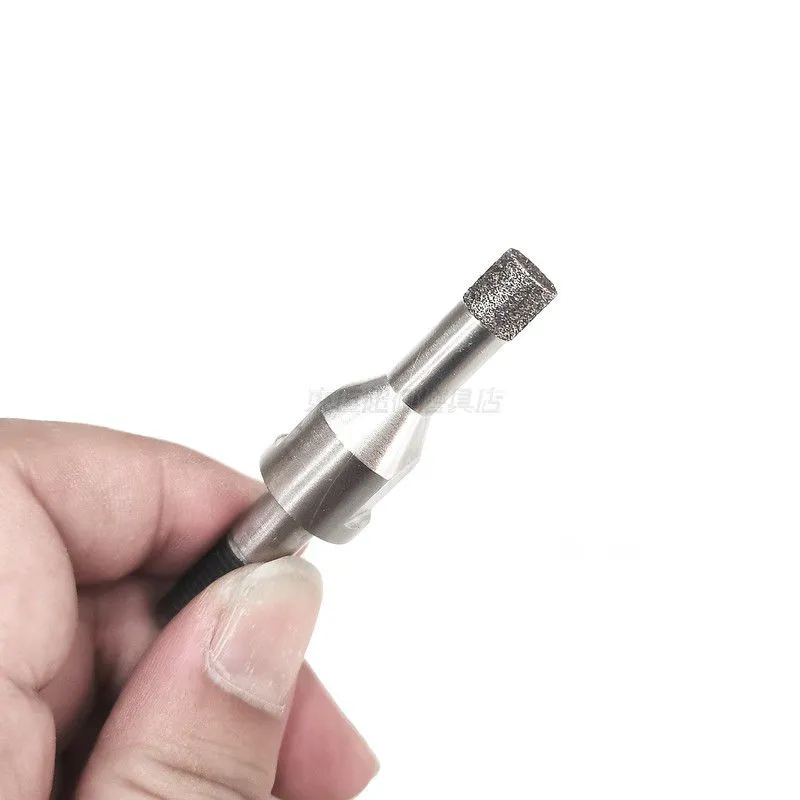

Help CenterHigh Precision Electric Spindle CBN Grinding Wheel Grinding Rod 20Cr Carburizing Quenching Inner Circular Grinding Machining
Related Products
-
Resin Bond Diamond Mounted Point Small Grinding Wheel With Shank 10mm Dongjutools AbrasivesCNY 180 - 200MOQ: 10 Pieces -
Electroplated Diamond Mounted Point With Round Flat Top L60mm/120mmCNY 50 - 65MOQ: 10 Pieces
-
Electroplated Diamond Mounted Points CBN Grinding Tools Sharp Arrow Head Abrasive ToolsCNY 45 - 50MOQ: 10 Pieces
-
90 Degree CBN Mounted Point Grinding Head Rought Grit 180 for Coarse Grinding Head 20~60mm Shank Diameter 6mmCNY 55 - 60MOQ: 5 Pieces
-
Electroplated Diamond Mounted Points CBN Rods for Inner Hole Grinding Abrasive Length 15mmCNY 35 - 40MOQ: 10 Pieces

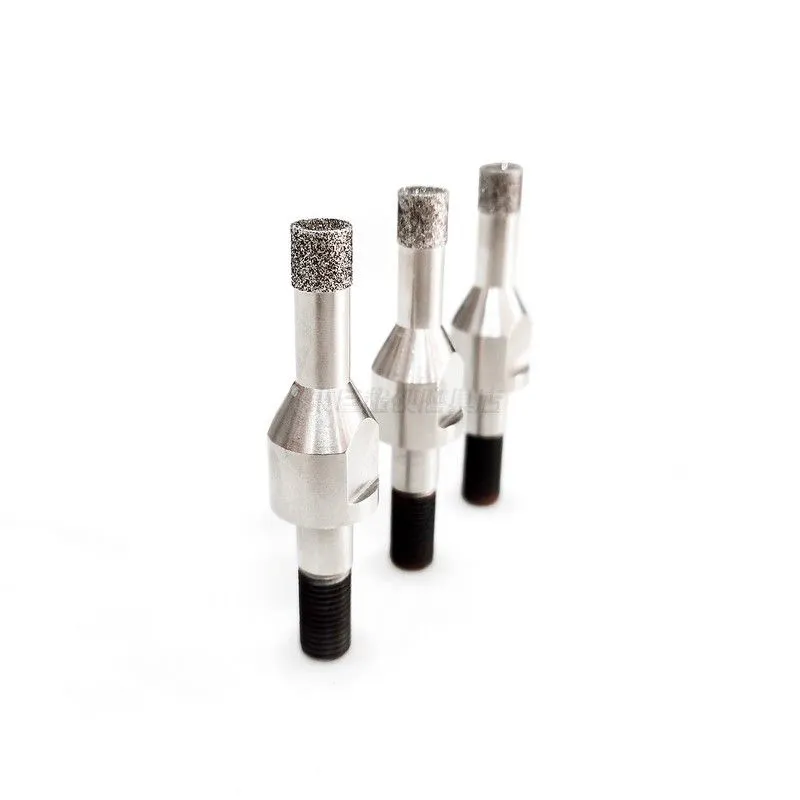

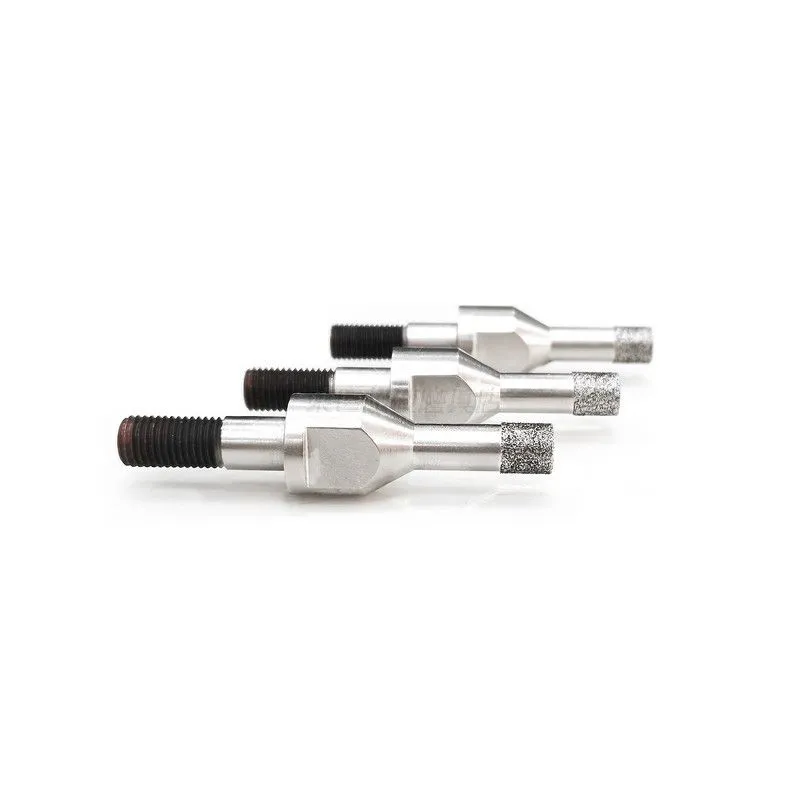

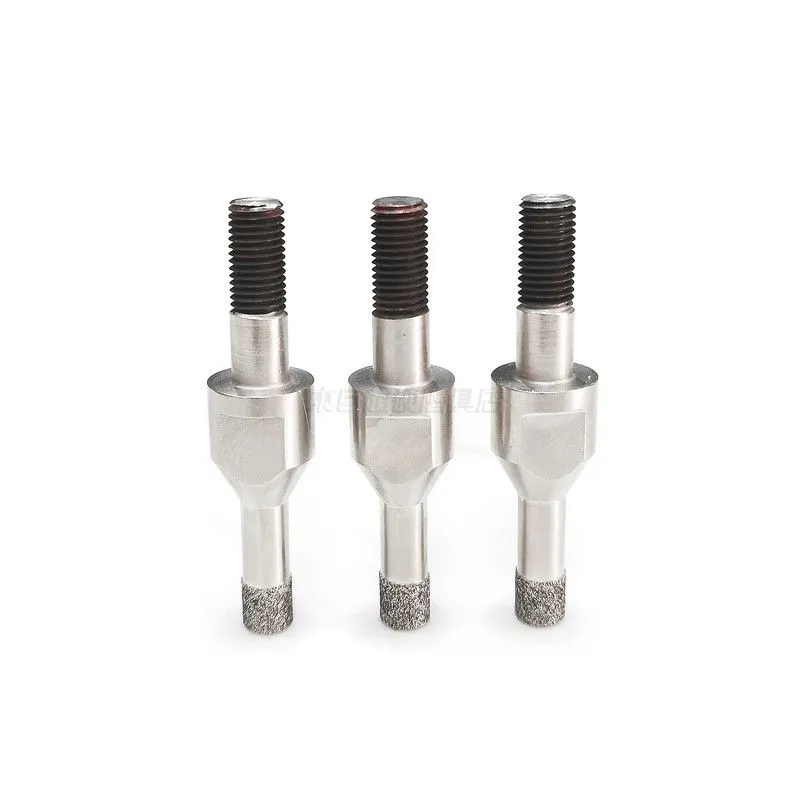

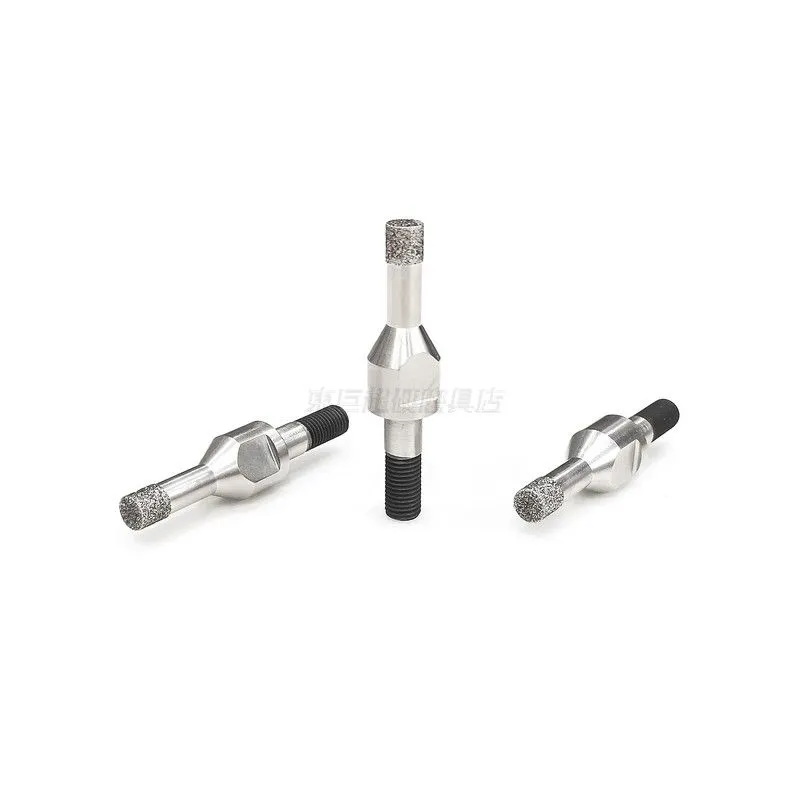

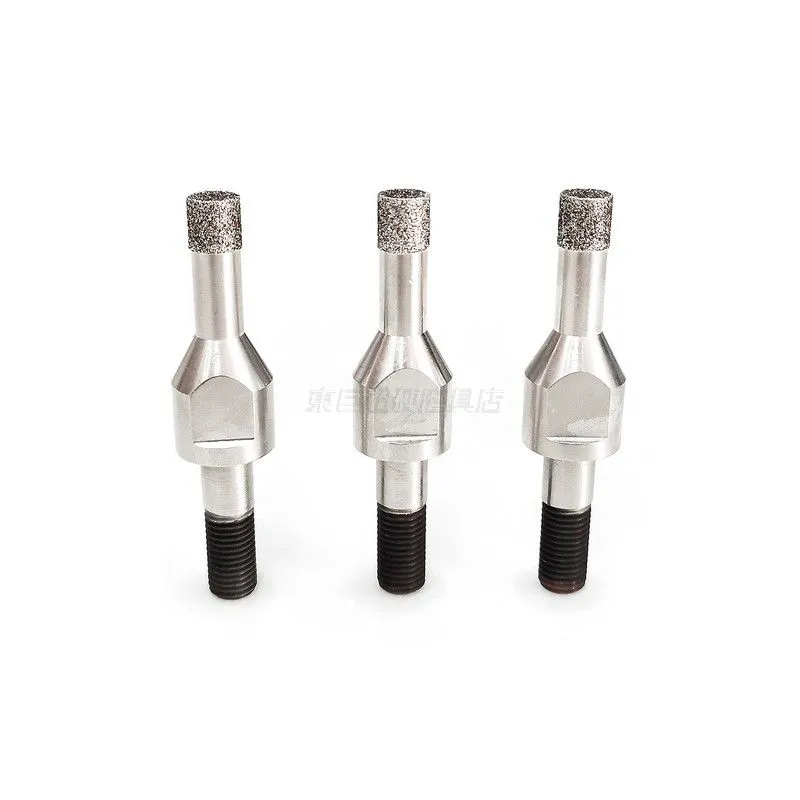

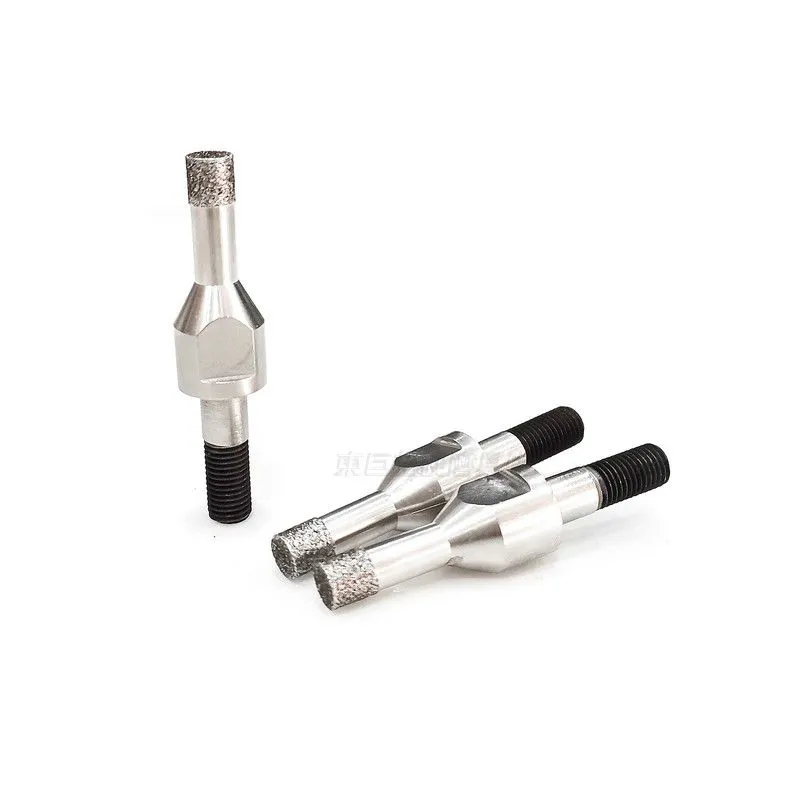

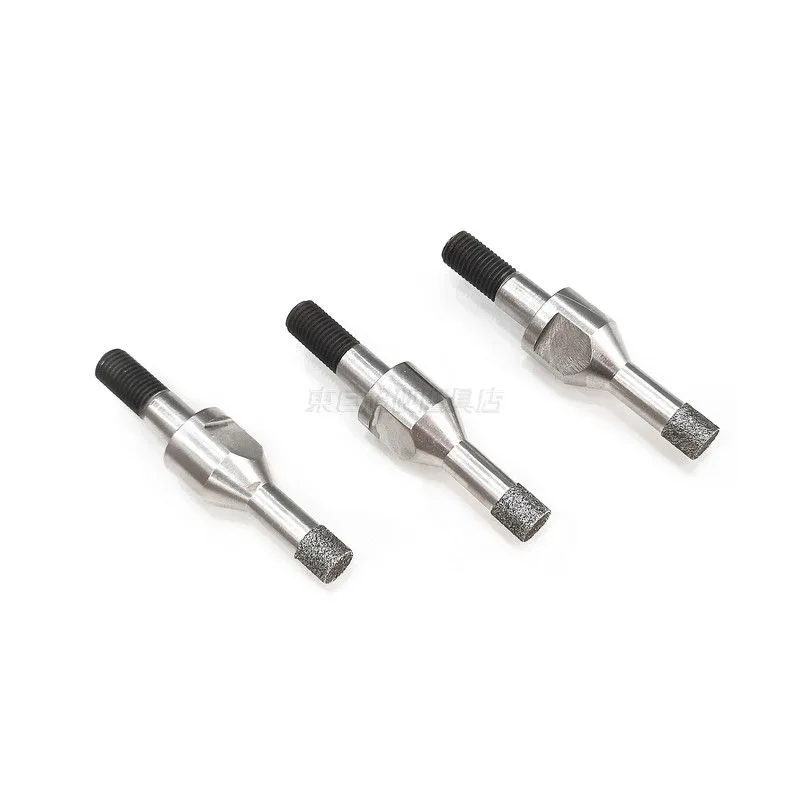

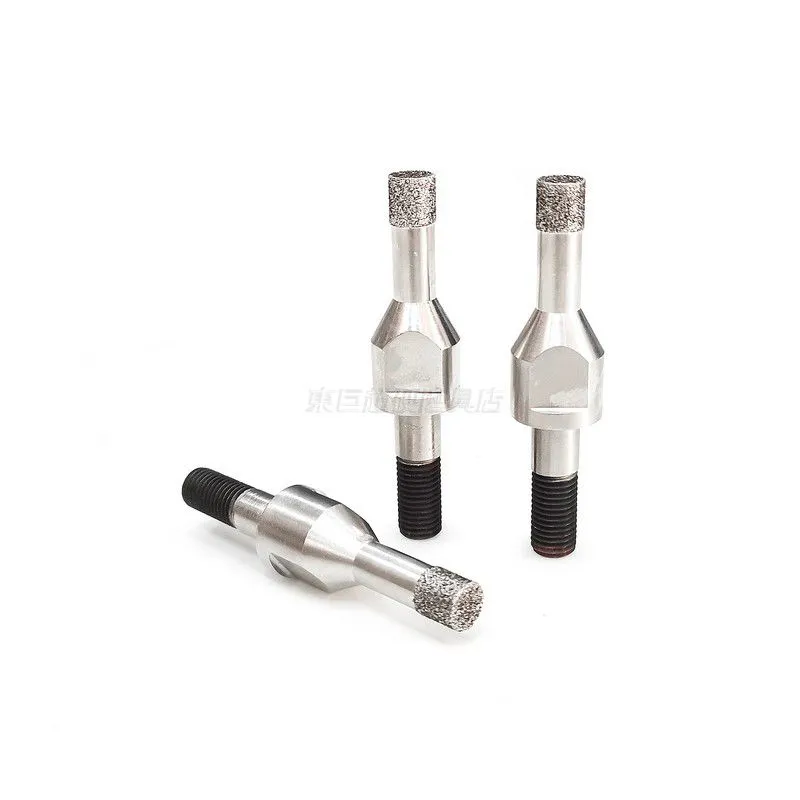

Electroplated CBN grinding wheel grinding rod is an efficient and high hardness grinding tool suitable for grinding materials such as quenched steel and carburized parts. To ensure high precision and fast grinding, high-quality electric spindles should be selected, which have high rotational speed and good rigidity. According to the grinding wheel particle size and workpiece material, the feed rate should be adjusted within the range of 0.01~0.05mm/min to achieve better grinding results. Use a lower rotational speed and a larger feed rate to remove most of the excess material from the workpiece. Fine grinding After roughing, adjust the parameters for fine grinding to ensure that the size and geometric tolerance of the workpiece meet the requirements. In order to control the grinding temperature and improve the machining quality, a coolant should be used to continuously cool the workpiece. After completing grinding, clean and inspect the workpiece to ensure it meets the requirements. It is recommended to conduct simulation or testing on the CBN grinding rod of the electric spindle before actual processing to verify the feasibility of the plan and ensure safety.
Brand: Dongju
Model: Electroplated
Material: cubic boron nitride
Category: cylindrical grinding head
Customized: Yes
Imported or not: No
Origin: Dongguan
Length: 63mm
Weight: 500g
Grinding head diameter: 7.5mm
Shank diameter: M8
Grinding head length: 7mm
Particle size: 120#

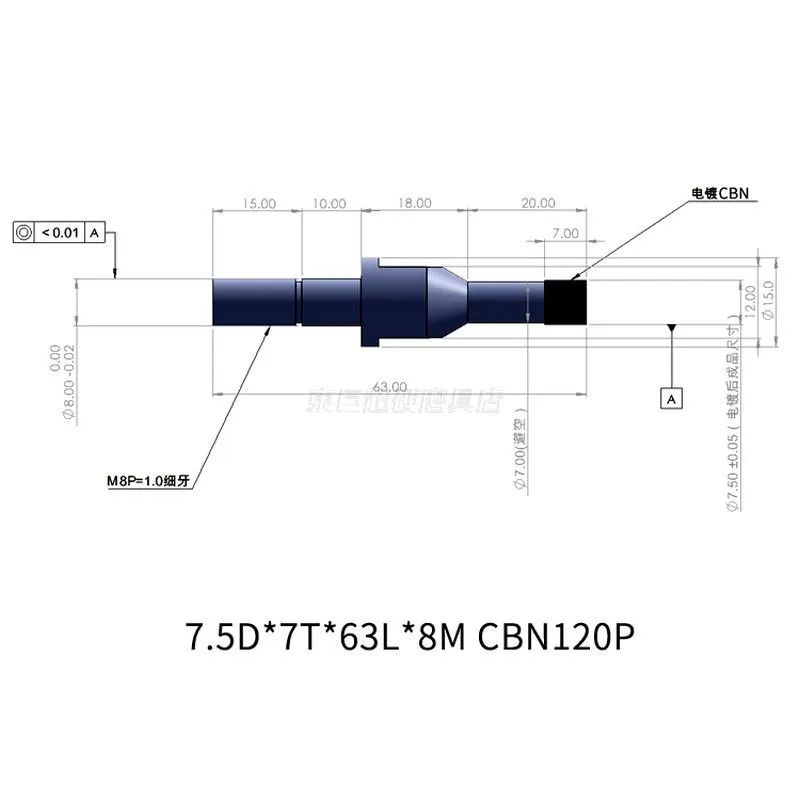

Specification: 7.5D * 7T * 63L * 8M CBN120P
Function and purpose: 20Cr HRC62 inner hole precision grinding
Scope of application: Rough machining of electric spindle inner circle grinding
