Help CenterIndustry 14A1 Flat Shaped Resin Bond Diamond Grinding Wheels For Magnetic Cores
Related Products
-
PSX Resin Bonded Diamond Grinding Wheels With a 50 Degree Single Bevel Outer Diameter of 150mmCNY 400 - 480MOQ: 5 Pieces -
4BT9 Cubic Boron Nitride Grinding Wheel Schlieberg Machine Tool High-speed Steel Hobbing Blade GrindingCNY 350 - 400MOQ: 5 Pieces
-
Customized 2500 Mesh Diamond Resin Grinding Wheel With a Diameter of 80mm, Pure Tungsten Electrode Precision Grinding and PolishingCNY 350 - 420MOQ: 5 Pieces
-
Diamond Resin Grinding Wheel Used in Walter Five Axis CNC Grinding Machine for Machining Milling Cutter BitsCNY 600 - 800MOQ: 5 Pieces
-
4C9 Disc-shaped Cubic Boron Nitride Grinding Wheel Resin Bond With Outer Diameter of 125 B151 Milling Cutter, Reamer, and BroachCNY 450 - 500MOQ: 5 Pieces
The characteristic of magnetic cores is hard brittleness, and the machining surface requires that the amount of grinding should not be too large. Generally, it is appropriate to choose between 0.1~0.3 millimeters for each grinding. There are also differences in actual work, and appropriate adjustments can be made according to the actual machining needs. Magnetic core grinding is generally done to obtain better surface roughness and improve the characteristics of the magnetic core after assembly and use. During the grinding process, it is important to note that there should be no foreign objects under the steel plate used for the pad (it should be very flat), and the product should not shift the conveyor belt during movement. The grinding wheel should not be tilted, and the rounded corners of the grinding wheel should be moderate. During the grinding process, attention should be paid to cooling water at all times. Lack of coolant or incorrect spray position can cause damage to magnetic material products. Dongju magnetic core grinding wheel can grind the E-type magnetic core flat and air gap twice, with high grinding accuracy and long service life. The types of magnetic cores that can be processed include grinding, slotting, cutting, drilling, etc. for various models such as RM, EE, EF, EFD, EP, RM8, etc.

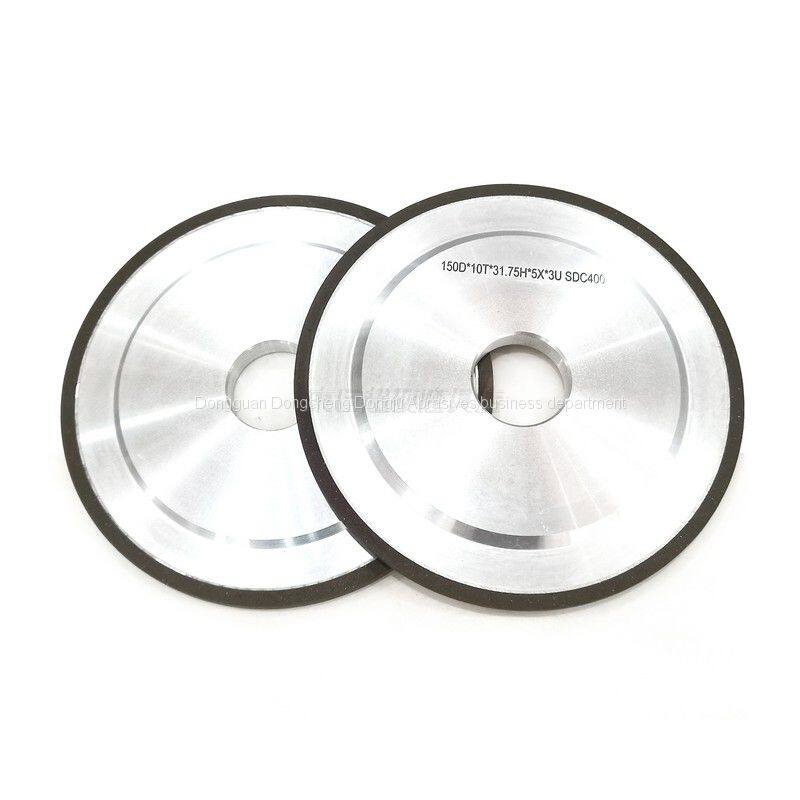

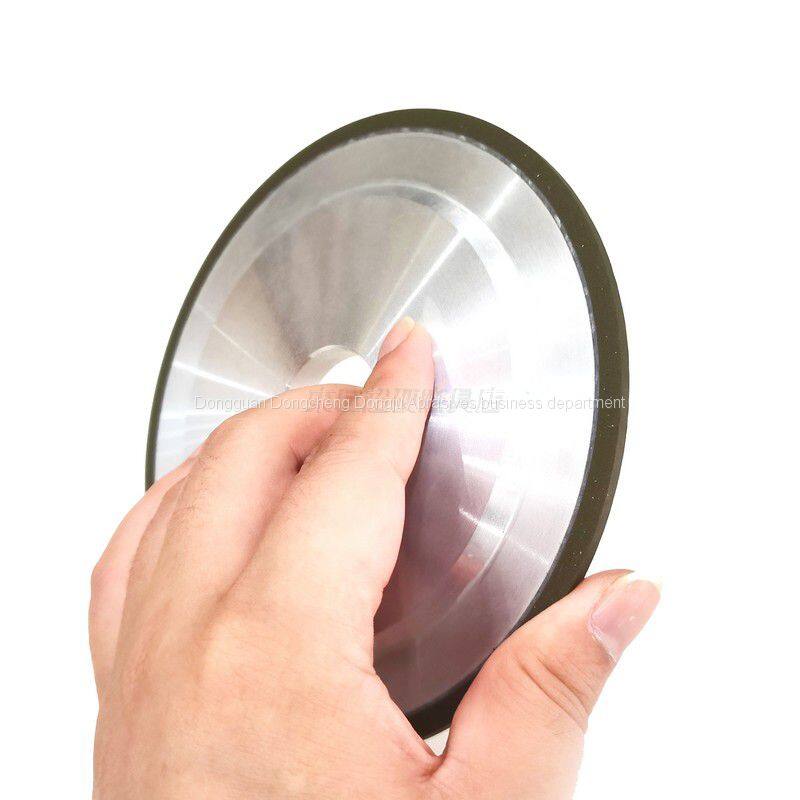

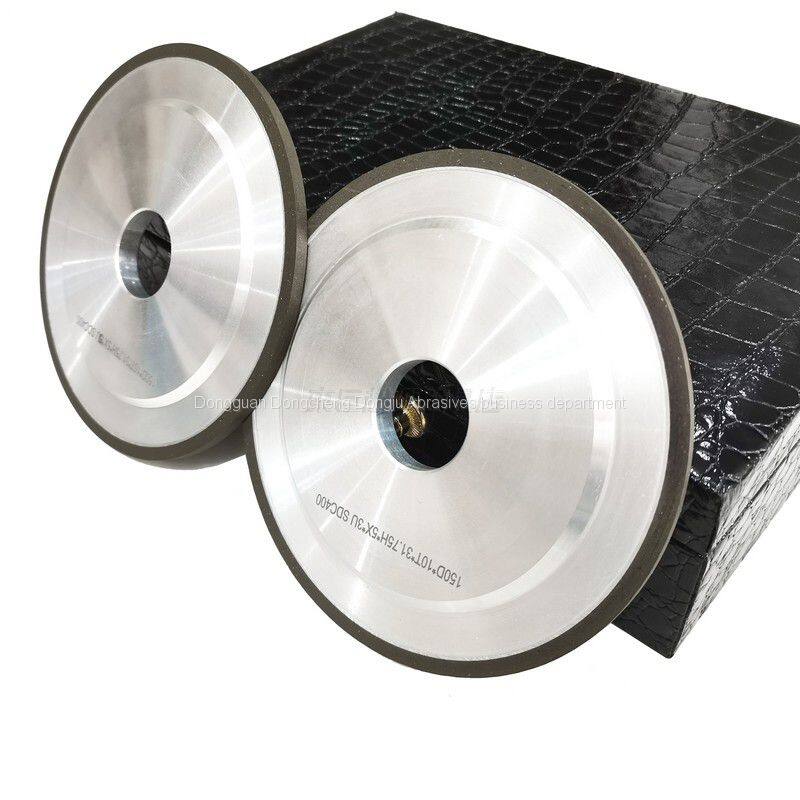

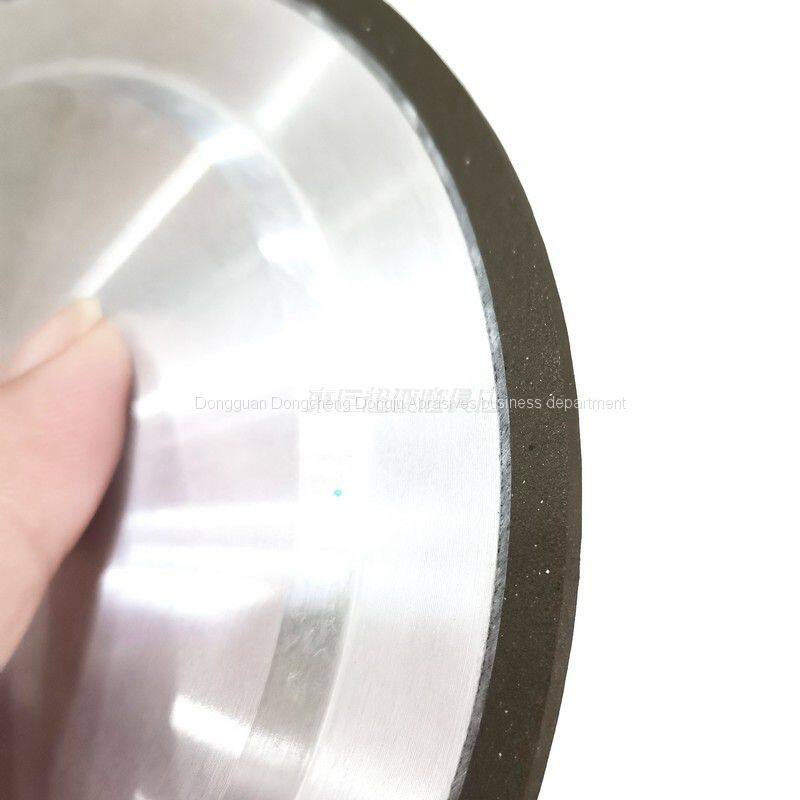

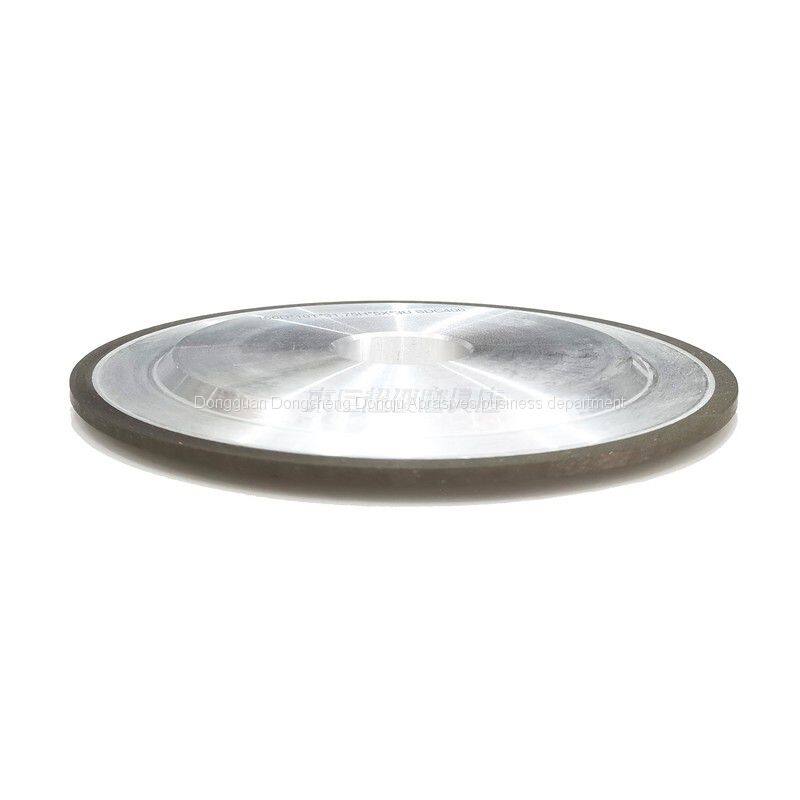

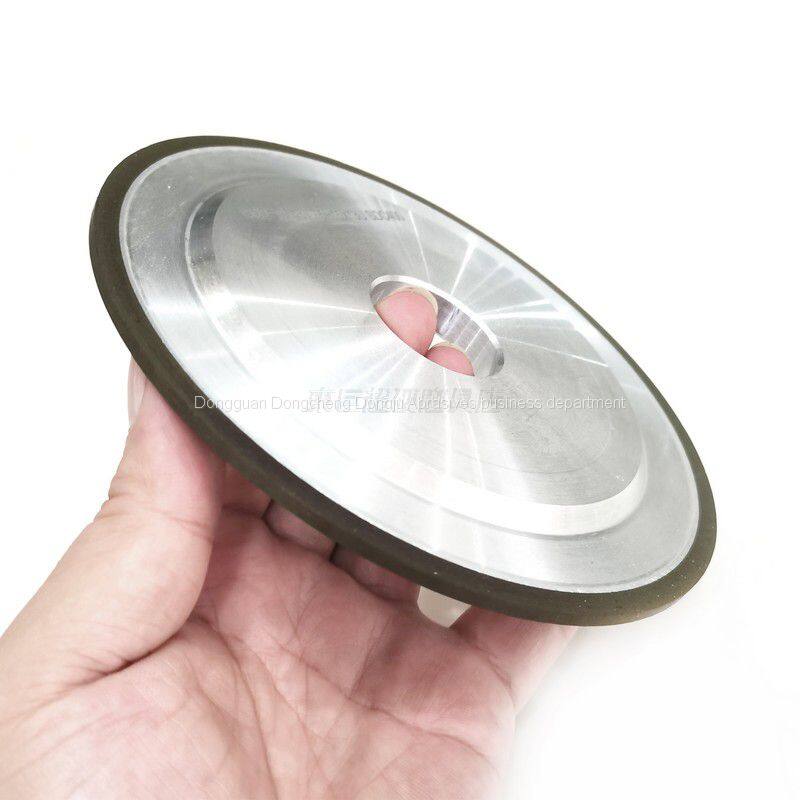

Name: Grinding wheel for grinding magnetic cores
Brand: Dongju
Model: 14A1
Material: Diamond
Category: Resin binder
Matrix: aluminum alloy
Diameter: 150mm

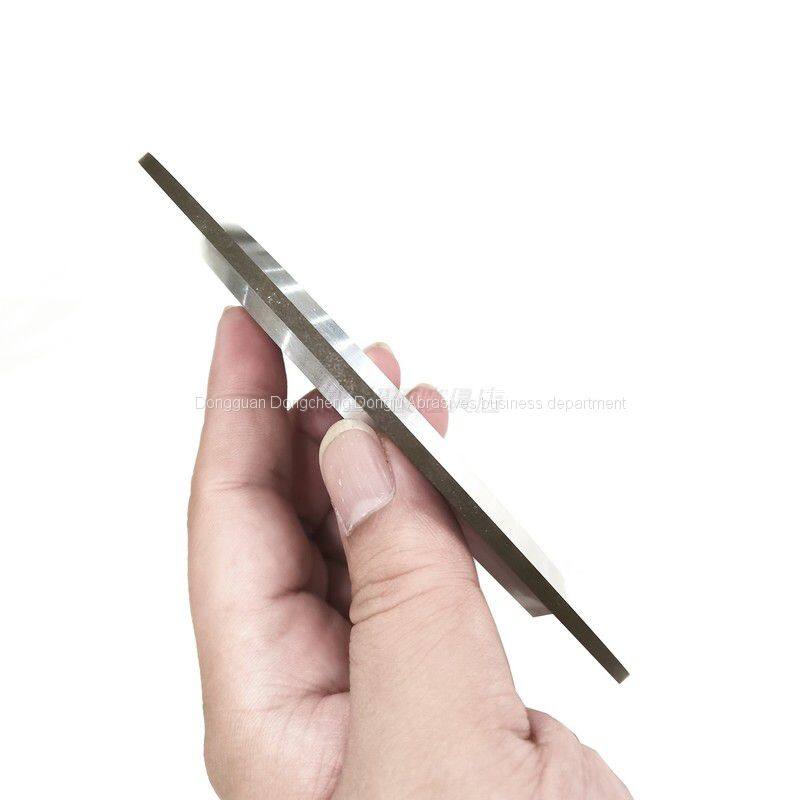

Width: 3mm
Wall thickness: 5mm
Inner diameter: 31.75
Particle size: 400#
Customization: Yes
Imported or not: No
Origin: Dongguan
Weight: 700g

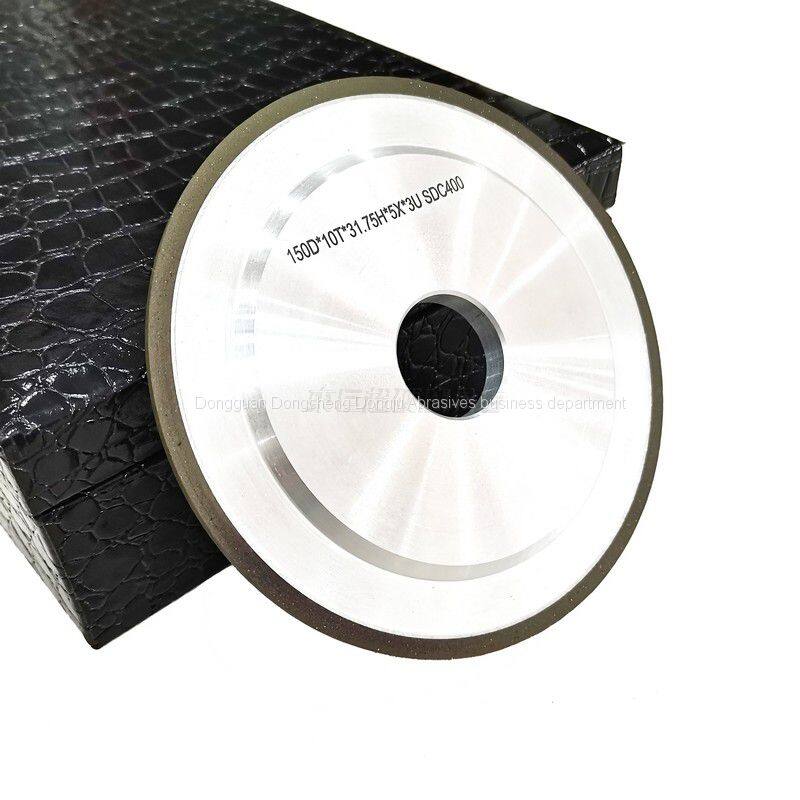

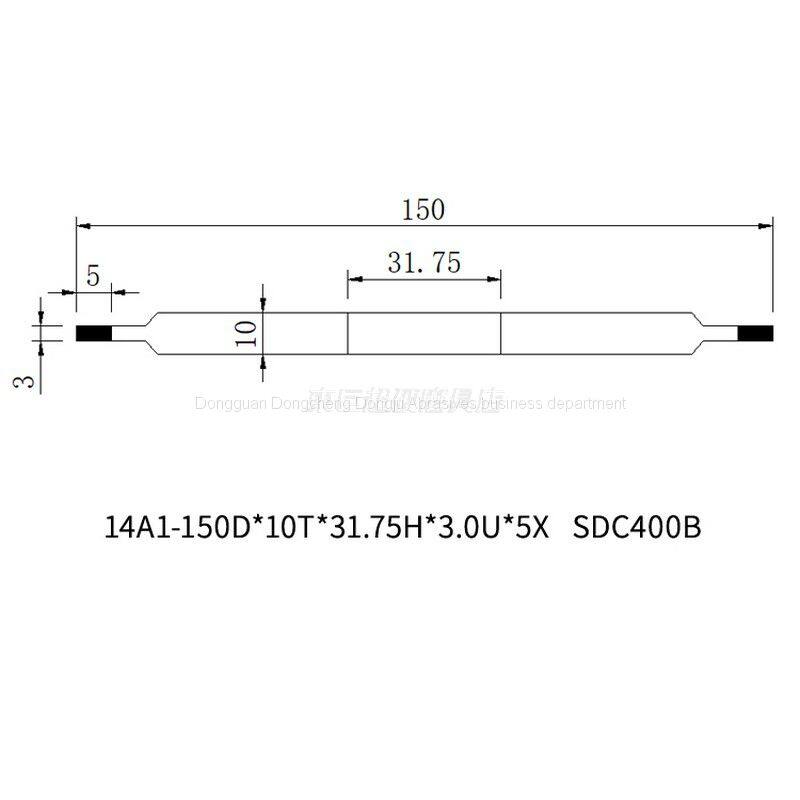

Specification: 150D * 10T * 31.75H * 3.0U * 5X
Function: rough and fine grinding of Ferrite core material
Applicable scope: RM, EE, EF, EFD, EP, RM8
