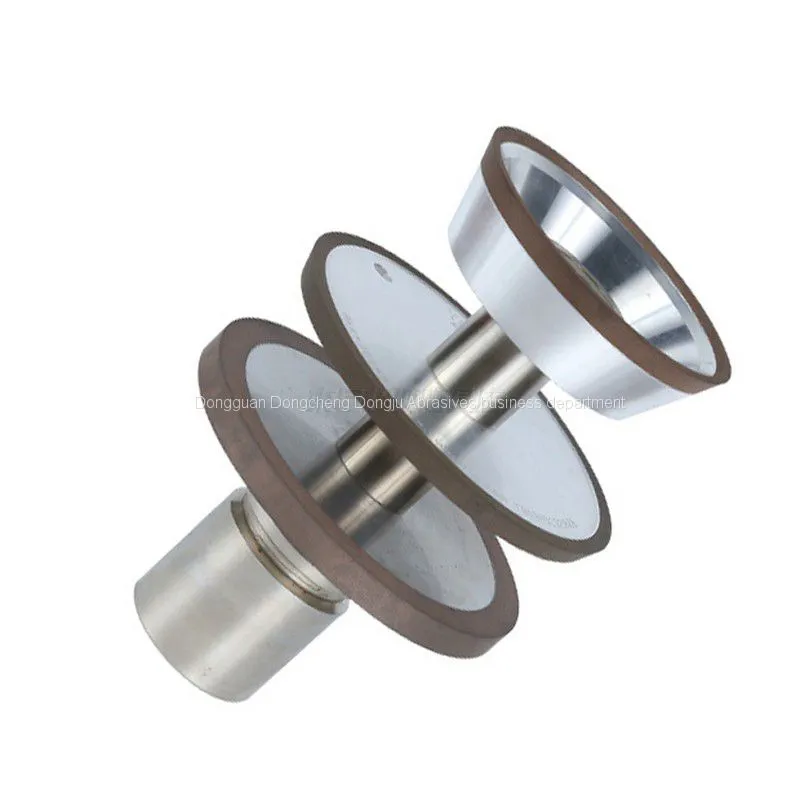

Help CenterDiamond Resin Grinding Wheel Used in Walter Five Axis CNC Grinding Machine for Machining Milling Cutter Bits
Related Products
-
4C9 Disc-shaped Cubic Boron Nitride Grinding Wheel Resin Bond With Outer Diameter of 125 B151 Milling Cutter, Reamer, and BroachCNY 450 - 500MOQ: 5 Pieces -
125mm Resin Diamond Grinding Disc Green Abrasive SDC2000 Mesh Metallographic Grinding Machine PolishingCNY 1500 - 1800MOQ: 2 Pieces
-
Resin Bond Diamond Surface Grinding Wheel for Tungsten Carbide Glass Ceramic Finishing PolishingCNY 750 - 1100MOQ: 1 Piece
-
1A1 Plain Shape Diamond Grinding Wheel for CarbideCNY 350 - 650MOQ: 5 Pieces
-
DC53 Die Steel Surface Grinding Rough Cubic Boron Nitride Resin Grinding Wheel CBN100 MeshCNY 450 - 500MOQ: 1 Piece

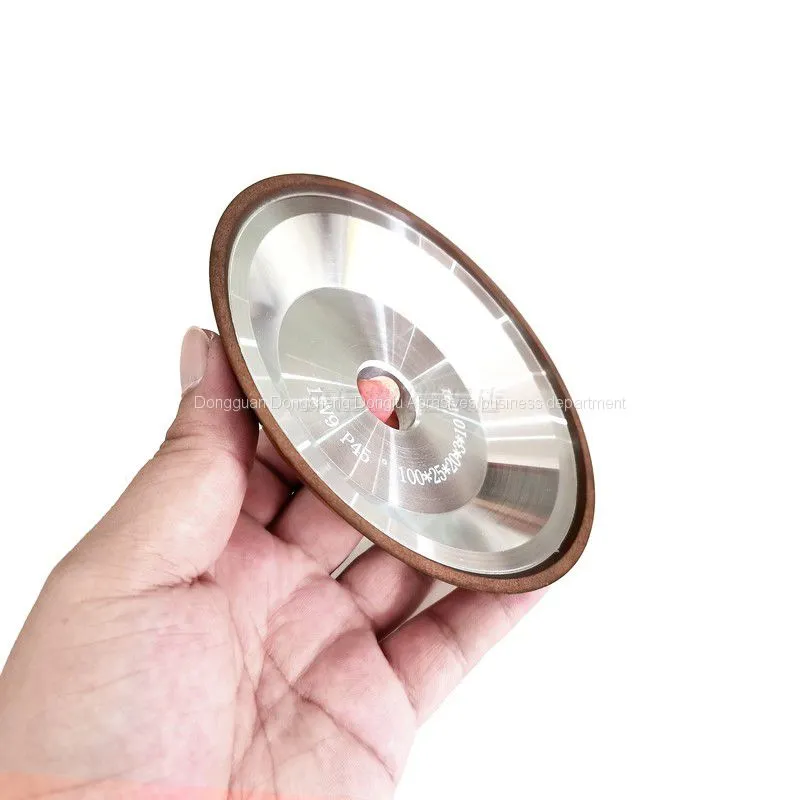

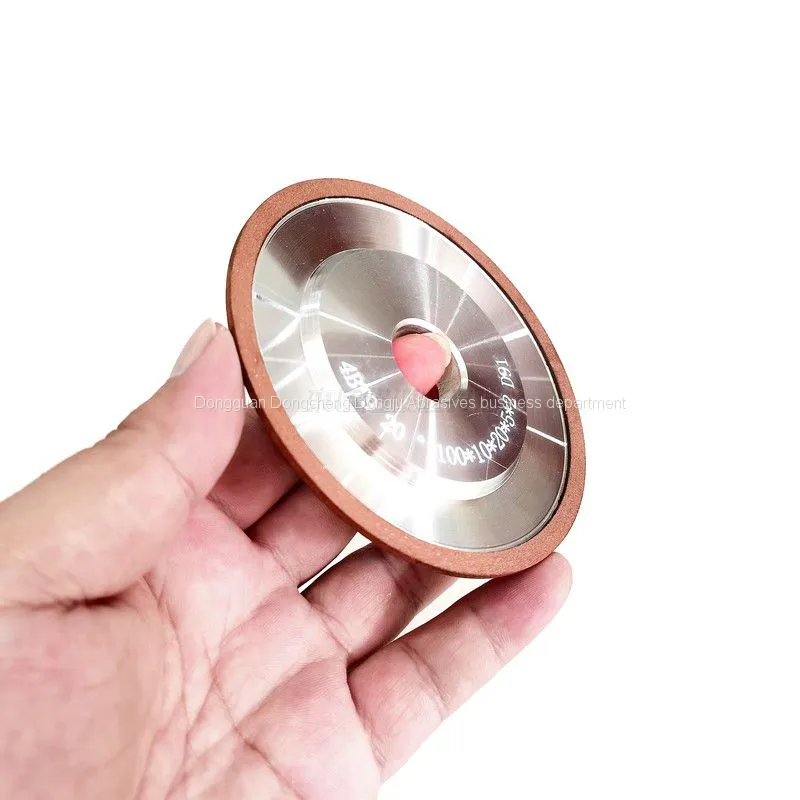

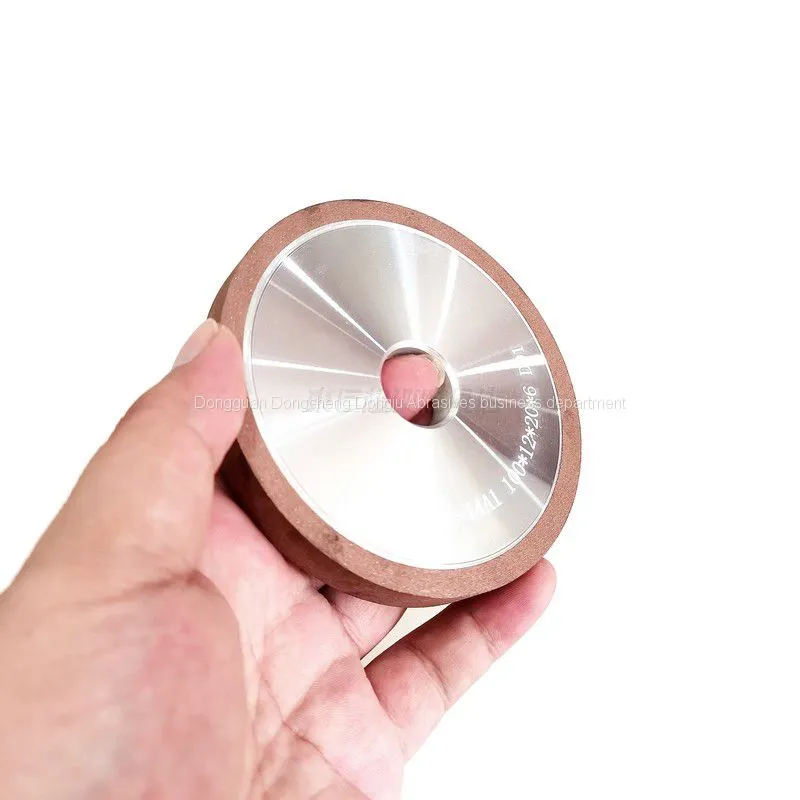

The five axis machine diamond grinding wheel is a special grinding tool commonly used for high-precision, fast grinding and cutting operations. Its working principle is based on the motion structure of a five axis machine, allowing the grinding wheel to achieve more flexible and accurate motion in space. At the same time, the hardness of diamond grinding wheels is extremely high, which can effectively grind and cut hard material cutting tools.
Brand: Dongju
Origin: Dongguan
Material: SDC (diamond)/CBN (cubic boron nitride)
Binder: resin binder
Process: Sintering
Matrix material: aluminum/iron/aluminum iron combination
Outer diameter: 50D/75D/80D/100D/125D/150D, etc. (can be customized according to requirements)
Customization: Yes
Delivery time: 7 working days
Minimum order quantity: 5 pieces
Customization method: drawing or sample

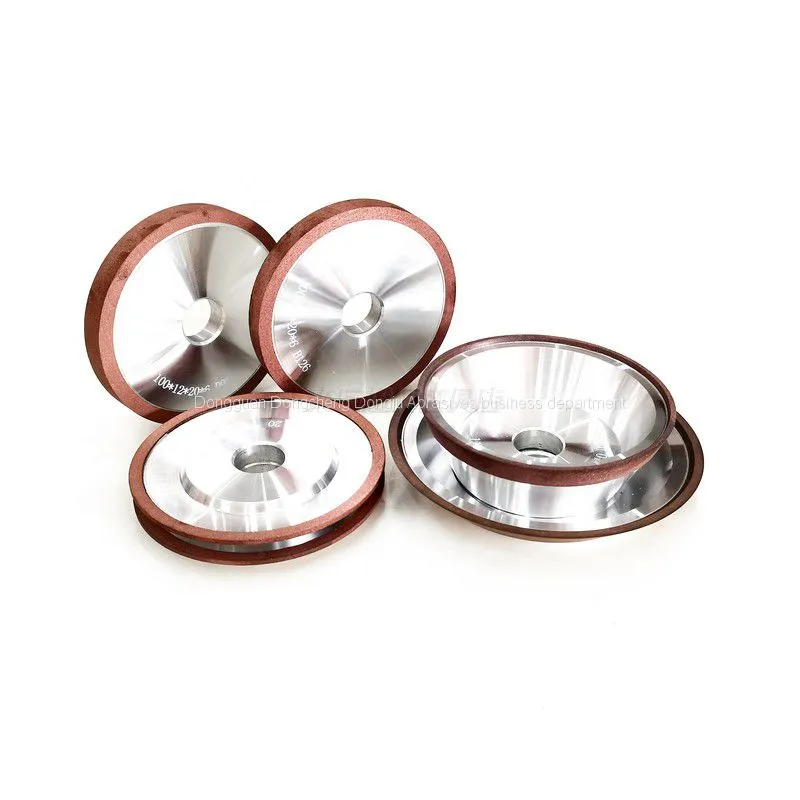

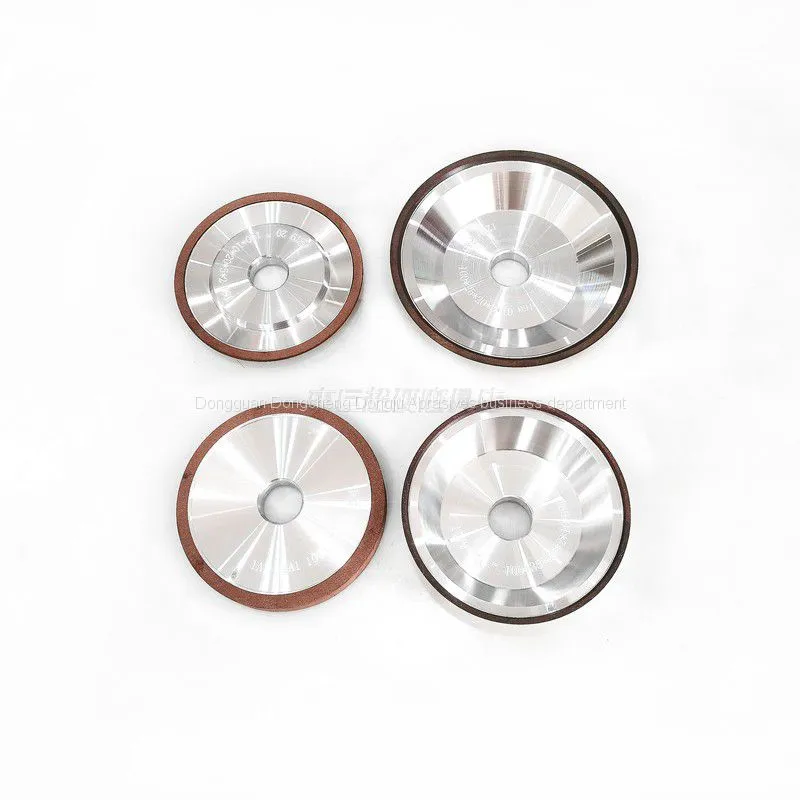

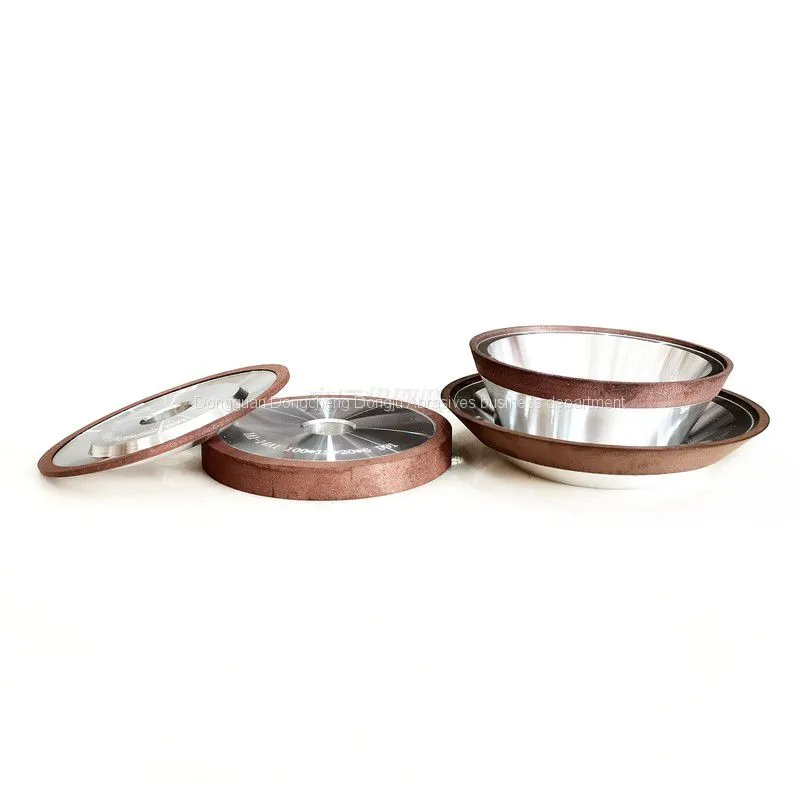

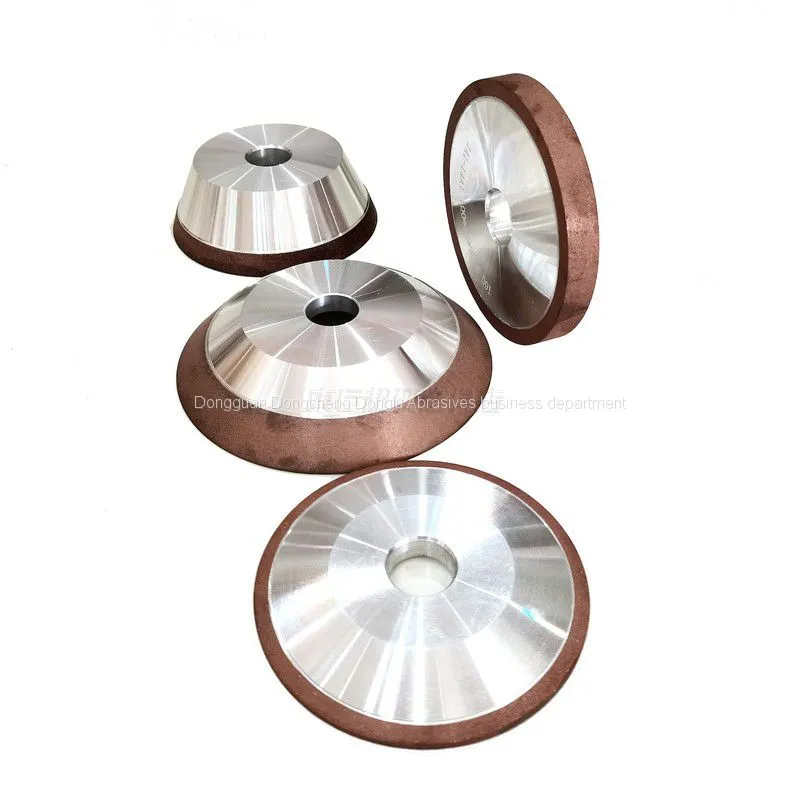

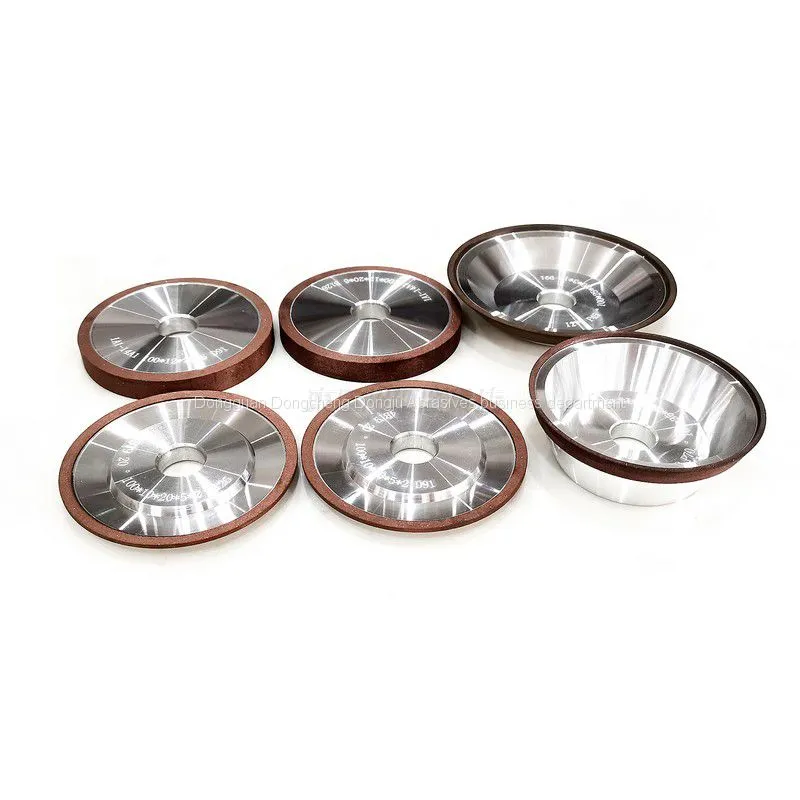

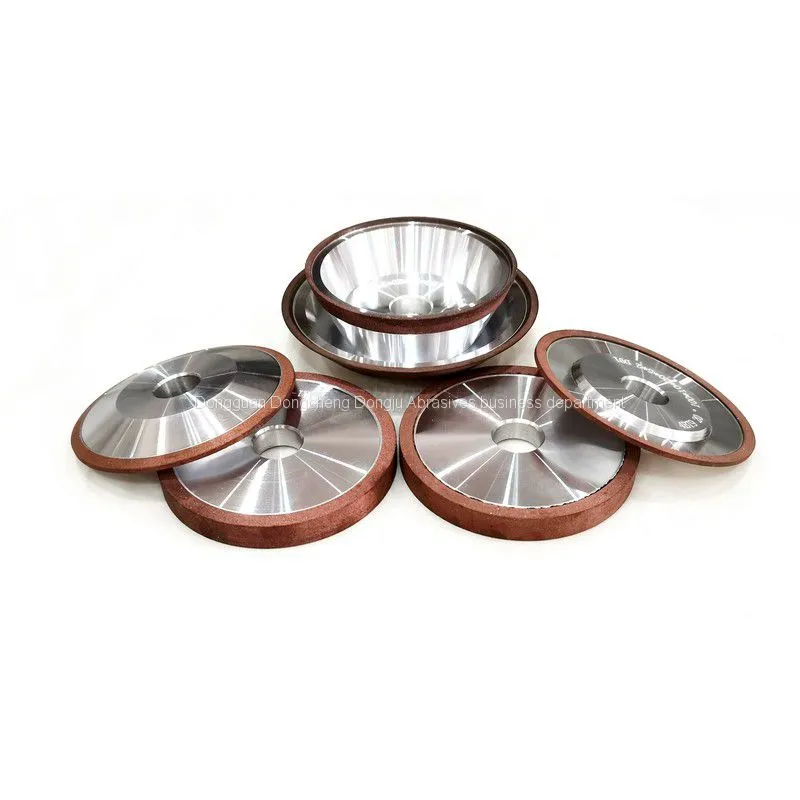

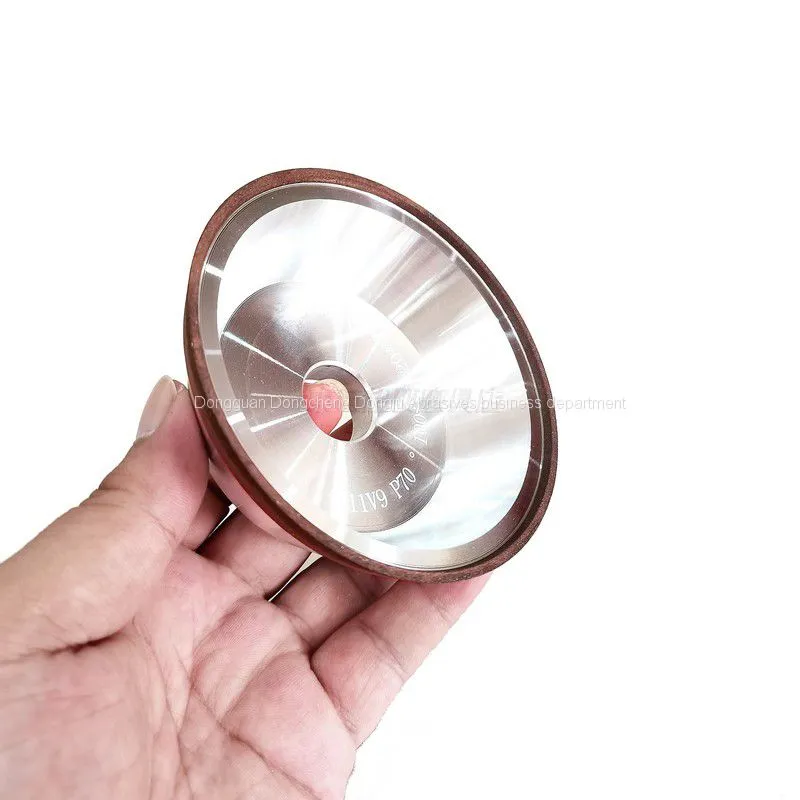

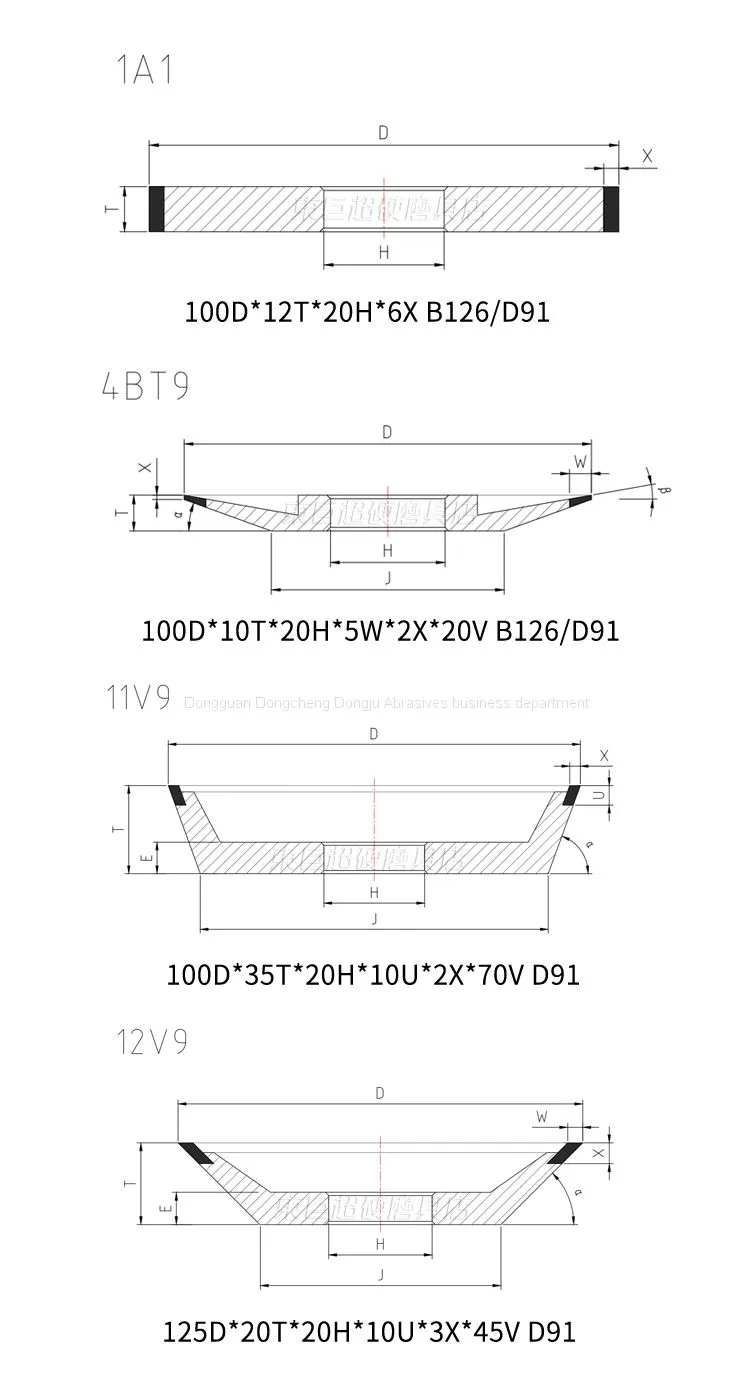

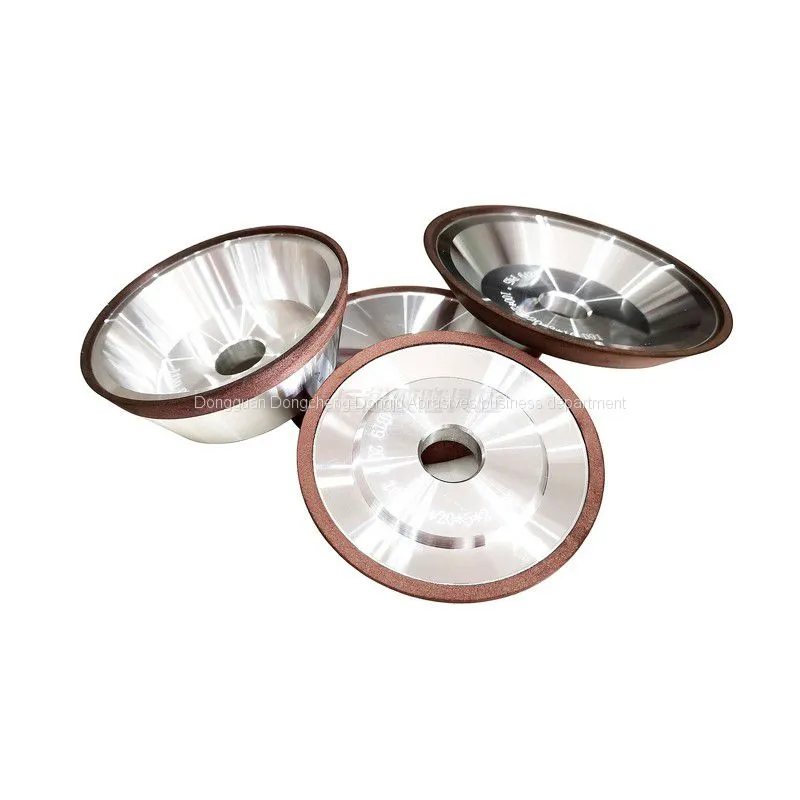

Five axis machine resin grinding wheels come in different specifications and shapes. Common five axis machine grinding wheel edge shapes include 1A1, 1V1, 3A1, 3V1, 14A1, 14V1, 11A2, 12A2, 11V2, 12V2, 11V9, 12V9, etc.
Characteristics of Five Axis Linkage Grinding Wheel
1. The grinding speed is fast, and the grinding wheel consumption is relatively slow;
2. Good self sharpening, low heat generation during grinding, less prone to clogging, reducing the occurrence of blackening during grinding;
3. The grinding wheel has a certain degree of elasticity, which is beneficial for improving the surface roughness of the workpiece. It is mainly used for precision grinding, semi precision grinding, knife grinding, polishing and other processes.
Application Scope of Five Axis Tool Grinder Grinding Wheel
The manufacturing process of CNC diamond grinding wheels requires strict manufacturing steps and quality control processes to ensure their high quality and performance.
Five axis machine diamond grinding wheels are commonly used for machining alloy metal cutting tools, mainly including milling cutters, drill bits, flat drills, step reamers, carving cutters, etc. They are used on CNC multi axis machines and tool grinders. Common CNC five axis grinders include Walter, Anka, Dingwei, Aikasen, Daijie, etc. Multi axis CNC grinders include Hasmag, tool grinders include EWAG, etc.
