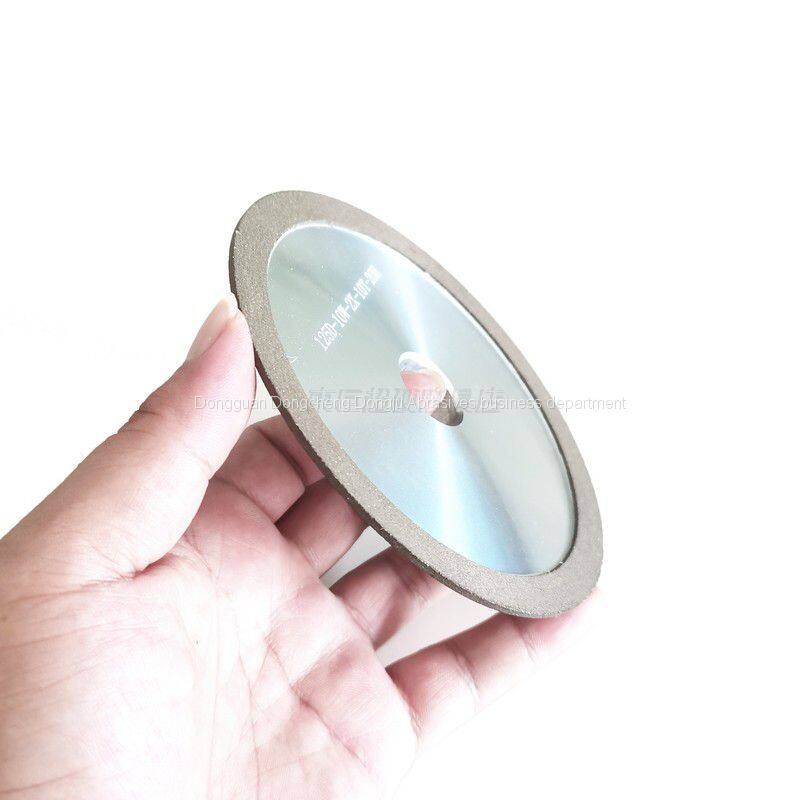

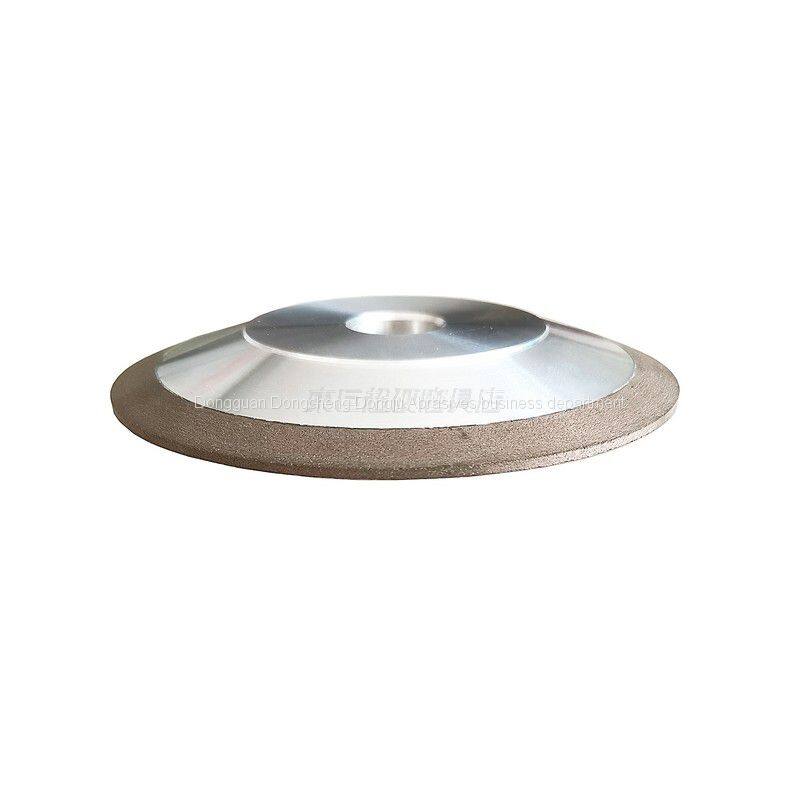

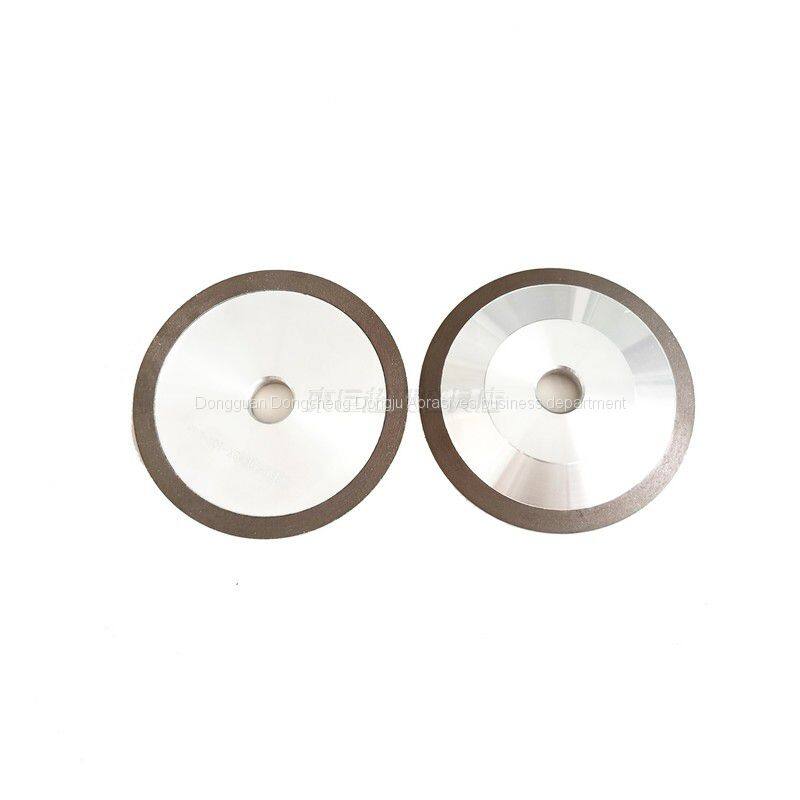

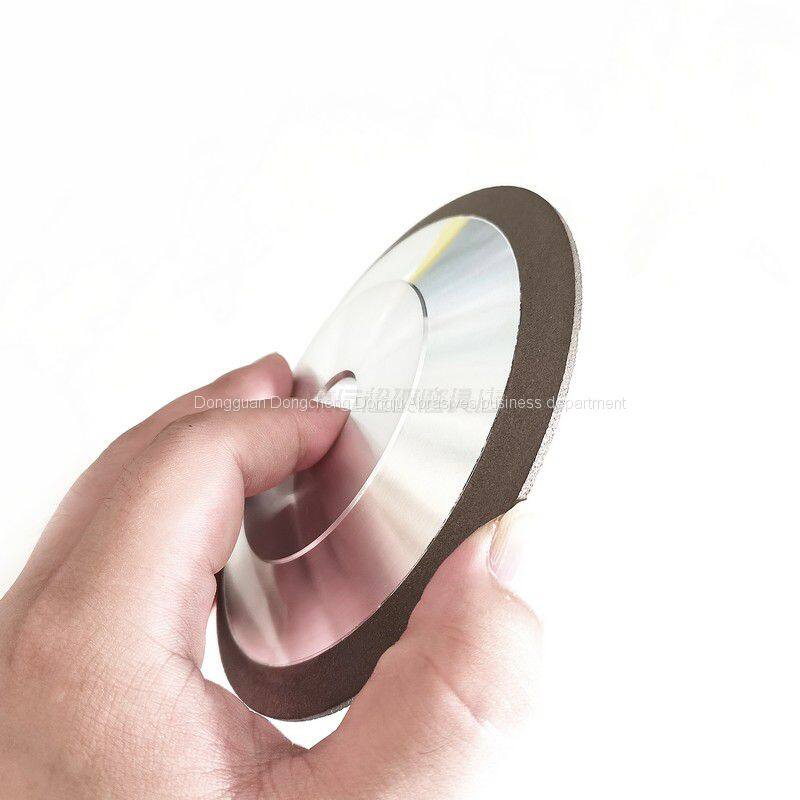

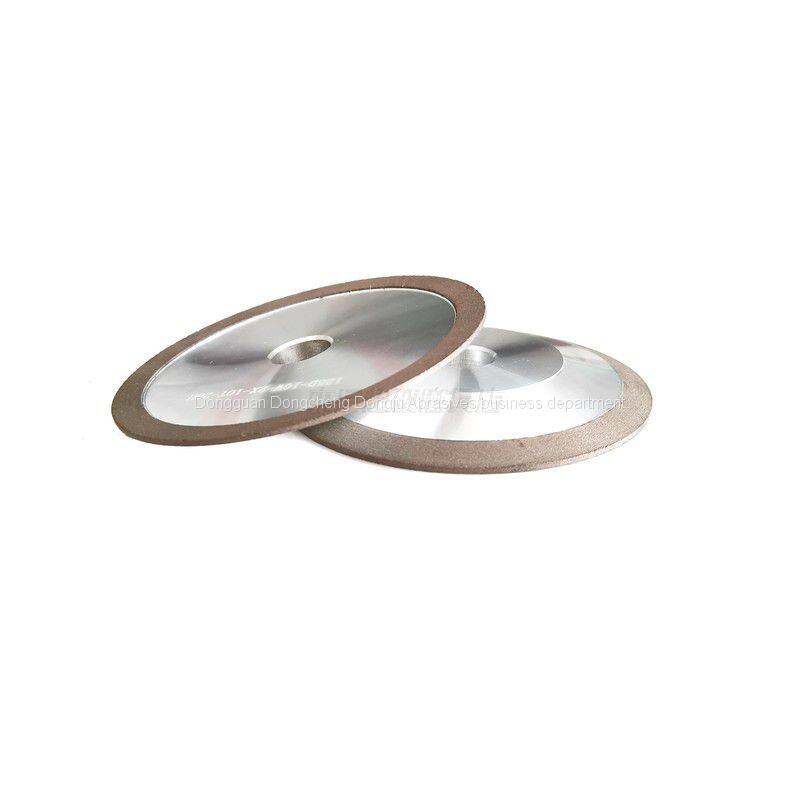

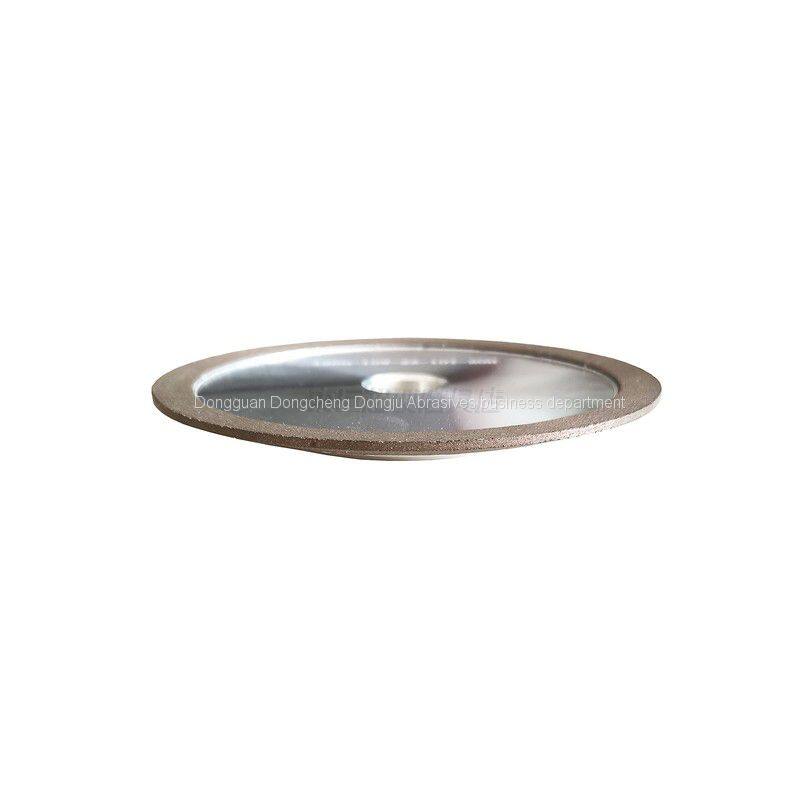

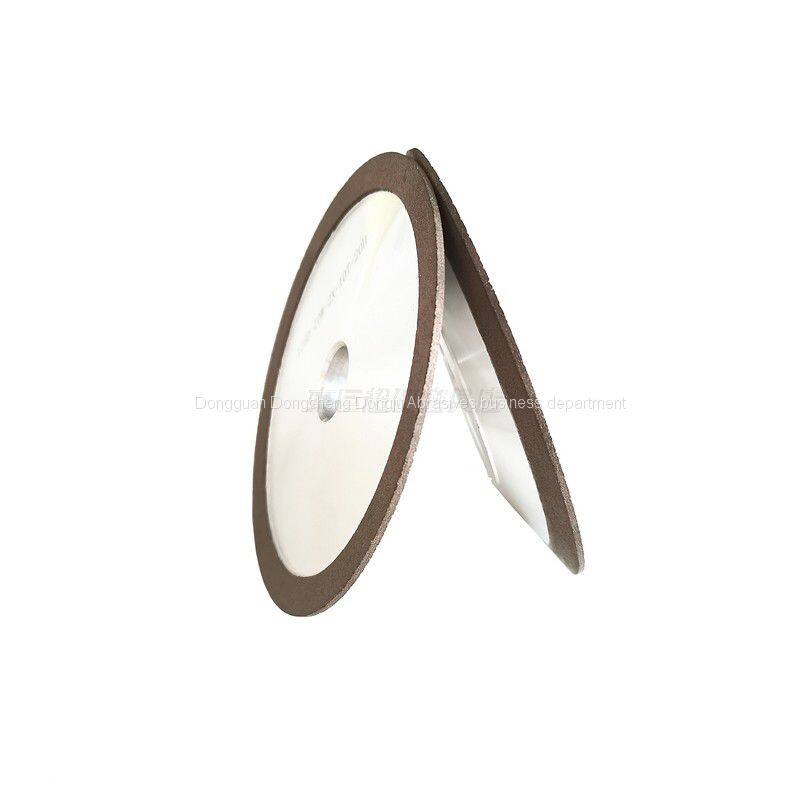

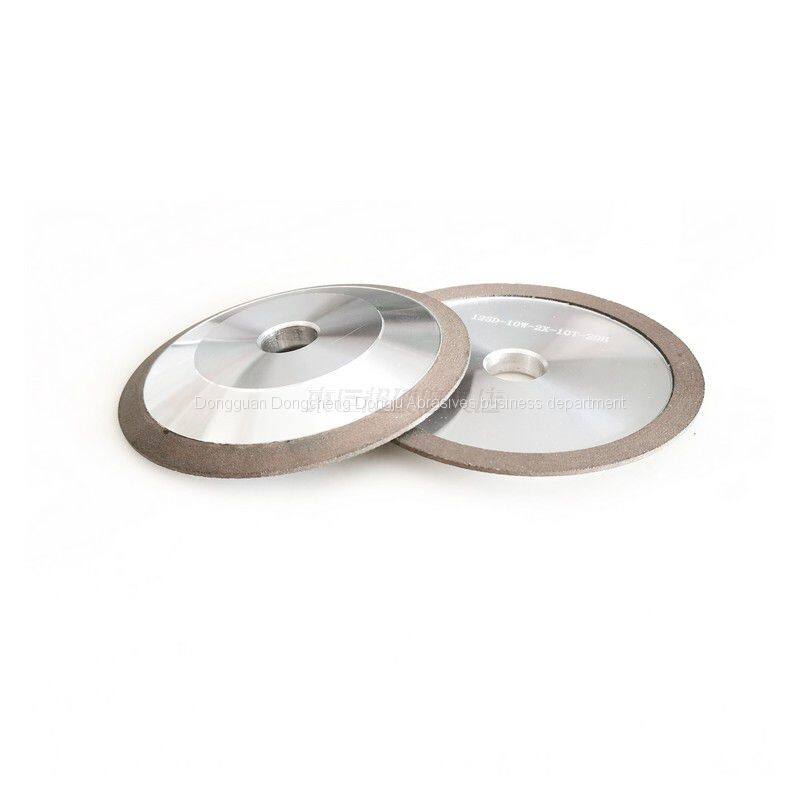

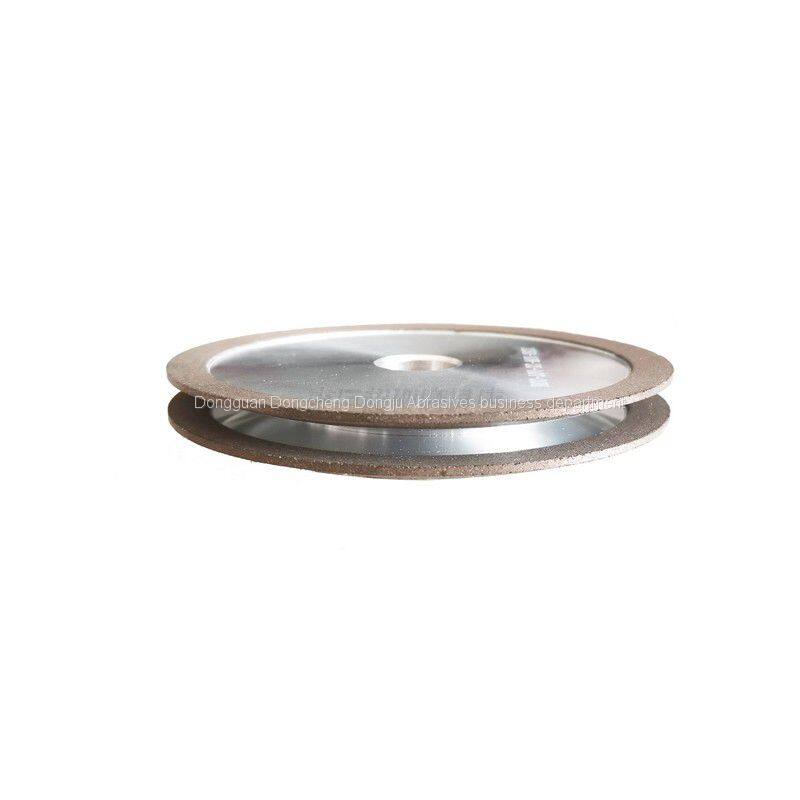

4BT9 cubic boron nitride grinding wheel Schlieberg machine tool high-speed steel hobbing blade grinding
- 562 Piece / Pieces per Month
- shenzhen
- T/T
- 7 days
- Customized 2500 mesh diamond resin grinding wheel with a diameter of 80mm, pure tungsten electrode precision grinding and polishing
- PH metal bonded diamond grinding wheels convex R30 diamond 80 mesh hard alloy blade forming grinding
- 250mm electroplated diamond circular saw blade cutting resin glass fiber polyurethane material cutting grinding wheel
- 45 steel electroplated diamond 300 mesh 60 degree diamond connection shaft diameter 20mm
- Customized electroforming grinding rod, Japanese casting process, diamond grinding tool, zirconia ceramic, sapphire deep hole drill
- Customized 6mm Electroplated Diamond Round File Metal Alloy Material Cutting and Grinding
Product Details
Brand Name: | DONGJU | Place of Origin: | China | Model Number: | CBN120B |
Size: | 125D*10T*20H*10W*5X*20V B151 | Shape: | Dish | Hardness: | S |
Viscosity: | 100% | Bonding Agent: | Resin | Abrasive: | Cubic Boron Nitride |
Product Description
Hobbing cutter is a cutting tool used for machining gears. Its working principle is to place the hobbing cutter on the gear and move it to roll and cut the tooth surface of the gear. Due to the high requirements of gear hobbing cutters, cubic boron nitride grinding wheels are required to ensure their machining accuracy and surface smoothness. Generally speaking, the selection of grinding wheel thickness depends on the material and geometric shape of the hobbing cutter. Usually, coarse grinding wheels are suitable for processing shear type materials, while fine grinding wheels are suitable for grinding materials. The selection of grinding wheel hardness should be based on the hardness of the grinding material. If the hardness of the grinding material is high, a grinding wheel with higher hardness should be used; If the grinding material is soft, a grinding wheel with lower hardness should be used. For high-speed steel gear hobbing cutters, it is recommended to use resin bonded cubic boron nitride sand wheels. The 4BT9 grinding wheel material has high hardness, strength, fast grinding speed, and does not cause excessive thermal deformation to the cutting tool. 4BT9 grinding wheel can not only improve machining quality and efficiency, but also extend the service life of gear hobbing cutters.
Brand: Dongju
Model: 4BT9
Category: Resin binder
Material: Aluminum alloy substrate
Diameter: 125mm
Width: 10mm
Wall thickness: 5mm
Inner diameter: 20mm
Ring width: 10mm
Angle: 20 °
Abrasive: cubic boron nitride
Particle size: 120 mesh
Customization: Yes
Imported or not: No
Origin: Dongguan
Scope of application: Gear processing
Weight: 450g

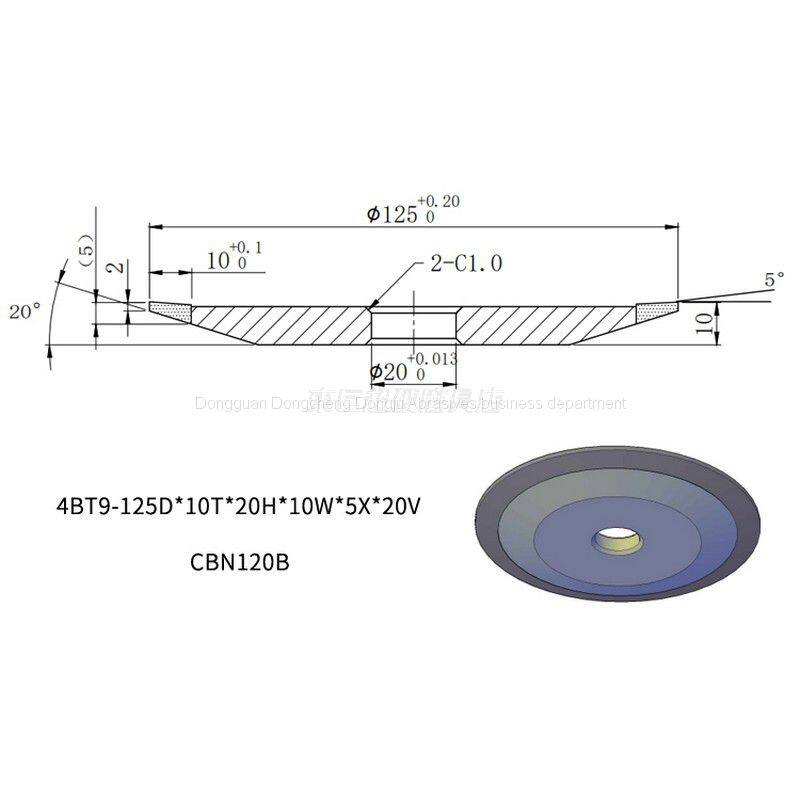

Specification: 125D * 10T * 20H * 10W * 5X * 20V B151
Functional use: High speed steel hobbing blade grinding
