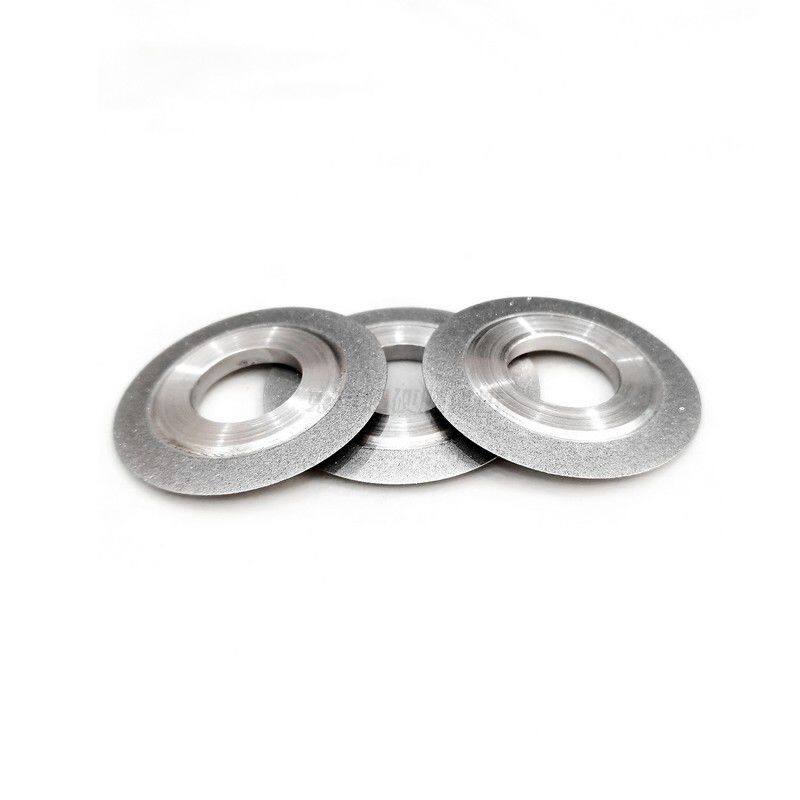

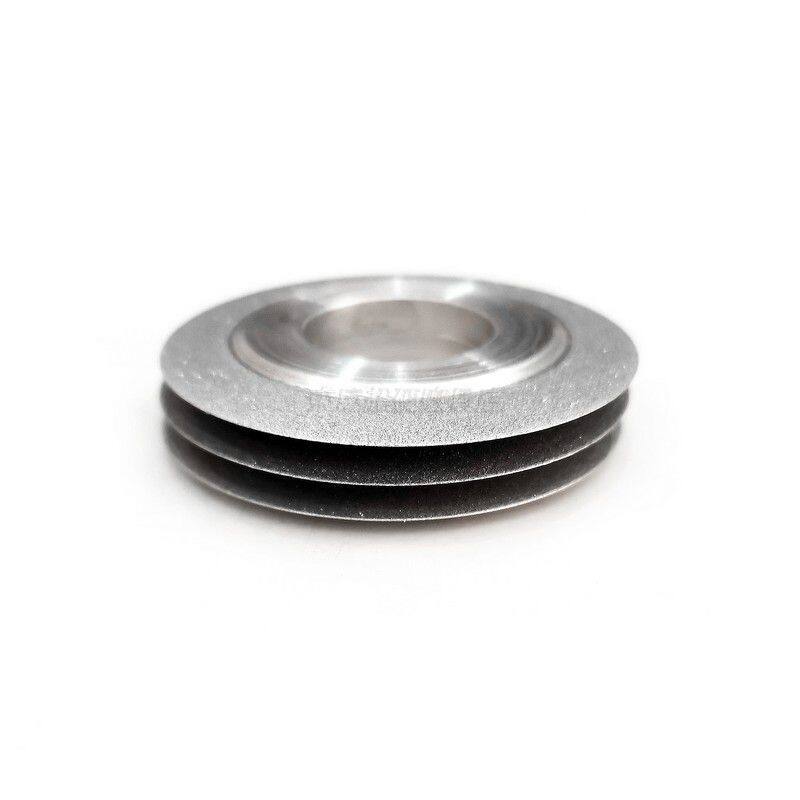

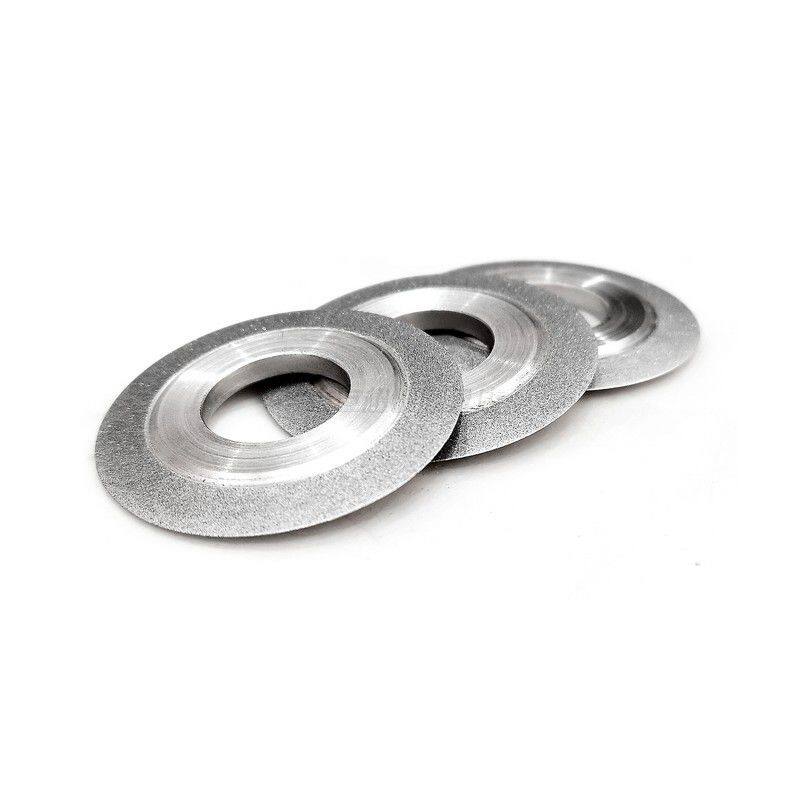

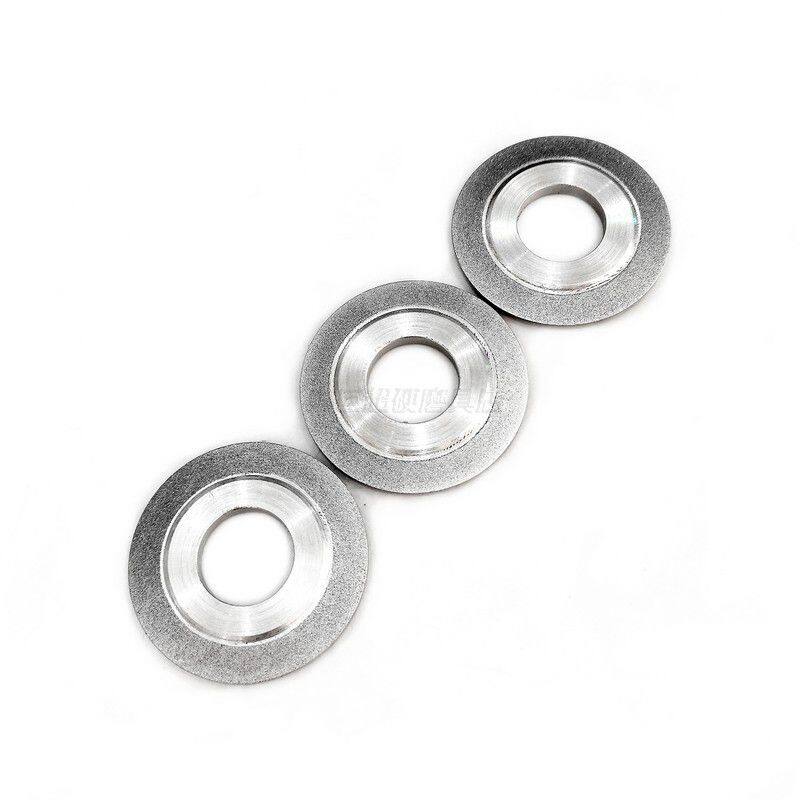

Precision Grinding of 400 Mesh Tungsten Steel Cutting Tools with Double Beveled Sharp Angle Grinding Wheel Electroplated Diamond Sand
- 262 Piece / Pieces per Month
- shenzhen
- T/T
- 10 days
- High precision electric spindle CBN grinding wheel grinding rod 20Cr carburizing quenching inner circular grinding machining
- 125mm resin diamond grinding disc green abrasive SDC2000 mesh metallographic grinding machine polishing
- Customized cup shaped electroplated grinding wheel for machining hard alloy knives with precision grinding of 1000 grit diamond sand
- Customized processing of carbon fiber with irregular shaped steel sand grinding head profile for rapid prototyping with good roughness
- DIACRYSTON CBN Wheels 75Dx5Wx1Xx12°x0.04Rx24H CBN400MD
- Mini cubic boron nitride resin slice outer diameter 30 ultra-thin thickness 0.8mm CBN1200 mesh
Product Details
Brand Name: | DONGJU | Place of Origin: | China | Model Number: | SDC400P |
Size: | 50D*4.0T*20H*2.5U*7X*20V | Shape: | Hypotenuse | Hardness: | S |
Viscosity: | 100% | Bonding Agent: | Other, Electroplated Bonded | Abrasive: | Diamond |
Product Description
Sharp angle electroplated grinding wheel, as the name suggests, is a type of electroplating technology that forms a hard and wear-resistant coating on the surface of the grinding wheel, giving it superhard and ultra wear-resistant properties. This type of grinding wheel has a unique structure, usually consisting of a substrate, binder, and coating. The matrix is the skeleton of the grinding wheel, usually made of high-speed steel performance materials, which have the characteristics of high strength, high rigidity, and lightweight. Adhesive plays a role in tightly bonding the substrate and coating, commonly used being nickel based metal. The coating is the core part of the pointed electroplating grinding wheel, which forms an extremely thin and extremely hard diamond coating on the surface of the substrate through electroplating technology, with excellent wear resistance and corrosion resistance. With the advancement of Industry 4.0 and intelligent manufacturing, the application of pointed electroplated grinding wheels will play a greater role in automated production lines.
Brand: Dongju
Model: 1EE1
Material: Diamond
Category: Electroplating binder
Specification: 50D * 4.0T * 20H * 2.5U * 7X * 20V
Diameter: 50mm
Width: 4mm
Wall thickness: 7mm
Inner diameter: 20mm

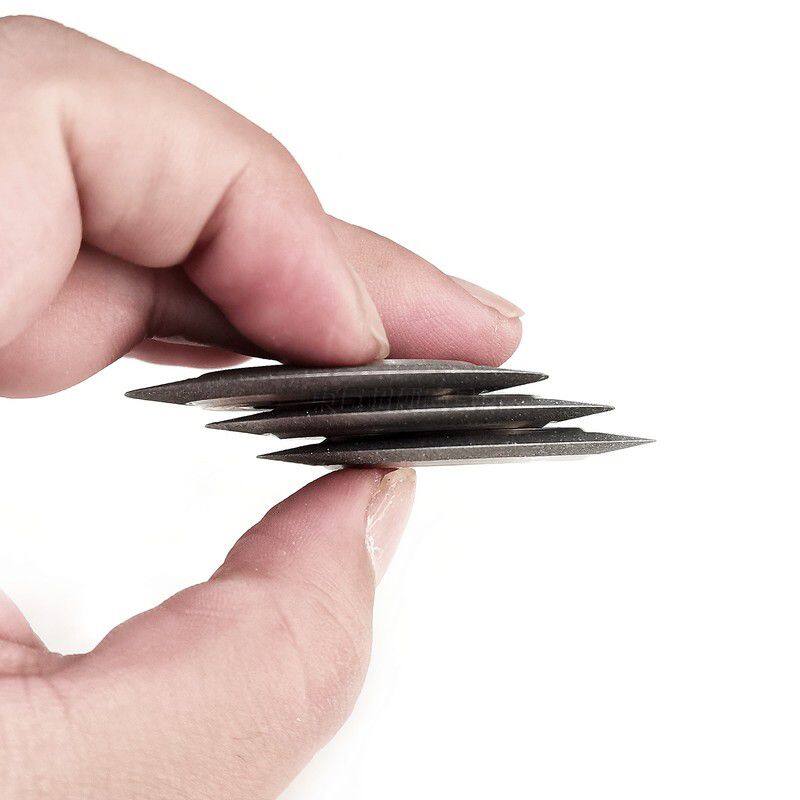

Angle: 20 °
Particle size: 400 mesh
Customized: Yes
Imported or not: No
Origin: Dongguan
Functional use: Forming and grinding of hard alloy tungsten steel cutting tools
Scope of application: Tool processing
Weight: 500g
Sharp angle electroplated grinding wheels are used in various grinding and cutting operations due to their superhard and ultra wear-resistant properties. In the field of grinding, pointed electroplated grinding wheels can be applied to the grinding of hard materials such as tungsten steel cutting tools, glass, ceramics, etc., improving grinding efficiency and quality. In the field of cutting, pointed electroplated grinding wheels can be used for cutting various metal materials, such as stainless steel, aluminum alloys, etc., with advantages such as fast cutting speed, flat cut, and small thermal impact. In addition, pointed electroplated grinding wheels can also be applied in the field of precision machining, such as high-precision grinding and polishing of optical components, semiconductor components, etc.
