Help CenterDC53 Die Steel Surface Grinding Rough Cubic Boron Nitride Resin Grinding Wheel CBN100 Mesh
Related Products
-
Industry 14A1 Flat Shaped Resin Bond Diamond Grinding Wheels For Magnetic CoresCNY 400 - 500MOQ: 5 Pieces -
PSX Resin Bonded Diamond Grinding Wheels With a 50 Degree Single Bevel Outer Diameter of 150mmCNY 400 - 480MOQ: 5 Pieces
-
4BT9 Cubic Boron Nitride Grinding Wheel Schlieberg Machine Tool High-speed Steel Hobbing Blade GrindingCNY 350 - 400MOQ: 5 Pieces
-
Customized 2500 Mesh Diamond Resin Grinding Wheel With a Diameter of 80mm, Pure Tungsten Electrode Precision Grinding and PolishingCNY 350 - 420MOQ: 5 Pieces
-
Diamond Resin Grinding Wheel Used in Walter Five Axis CNC Grinding Machine for Machining Milling Cutter BitsCNY 600 - 800MOQ: 5 Pieces
DC53 is a cold working die steel improved by Japan's Datong Special Steel on SKD11, which overcomes the weakness of insufficient hardness and toughness during high-temperature tempering. It is gradually replacing SKD11 in the current general field. DC53 has a hardness of 58-62HRC after heat hardening, making it a hard and ductile steel material It is mostly used for punching dies and cutters or Machine element that need wear resistance. Generally, grinding high hardness workpieces are prone to problems such as fast consumption of grinding wheels, high dressing frequency of grinding wheels, and heating and burning during grinding. Therefore, we should choose a bond with low grinding heat, high abrasive strength, and heat resistance in the selection of grinding wheels. Therefore, for the selection of grinding wheels for high hardness workpieces, it is recommended to choose high-strength CBN abrasive. The strength of cubic Boron nitride can effectively improve the surface roughness of workpieces and enhance the cutting force, At the same time, there is a resin binder with both heat resistance and self sharpening, with moderate strength, making CBN resin grinding wheels effortless and effortless to grind.

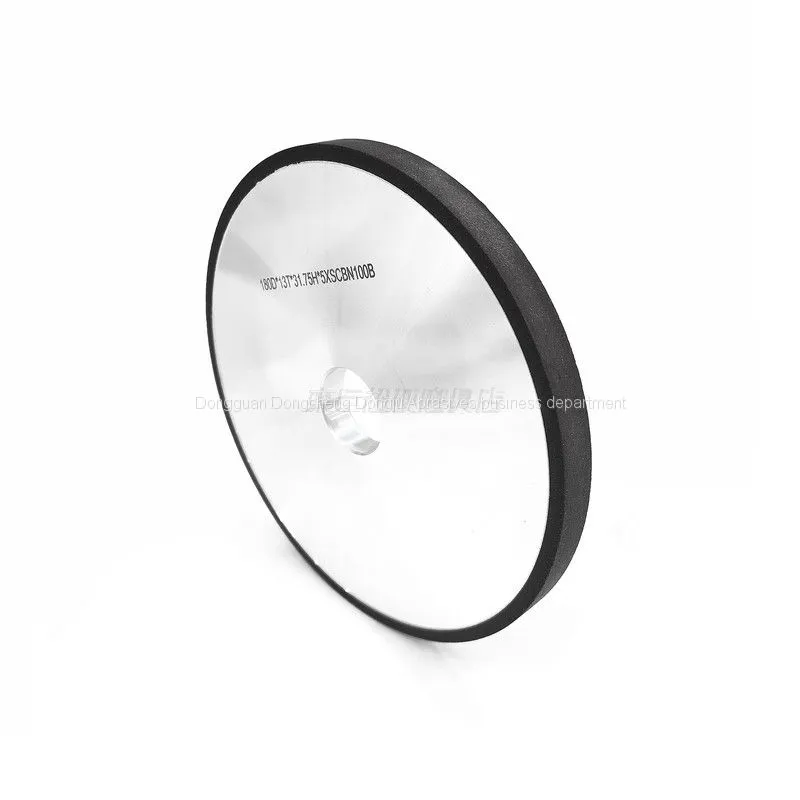

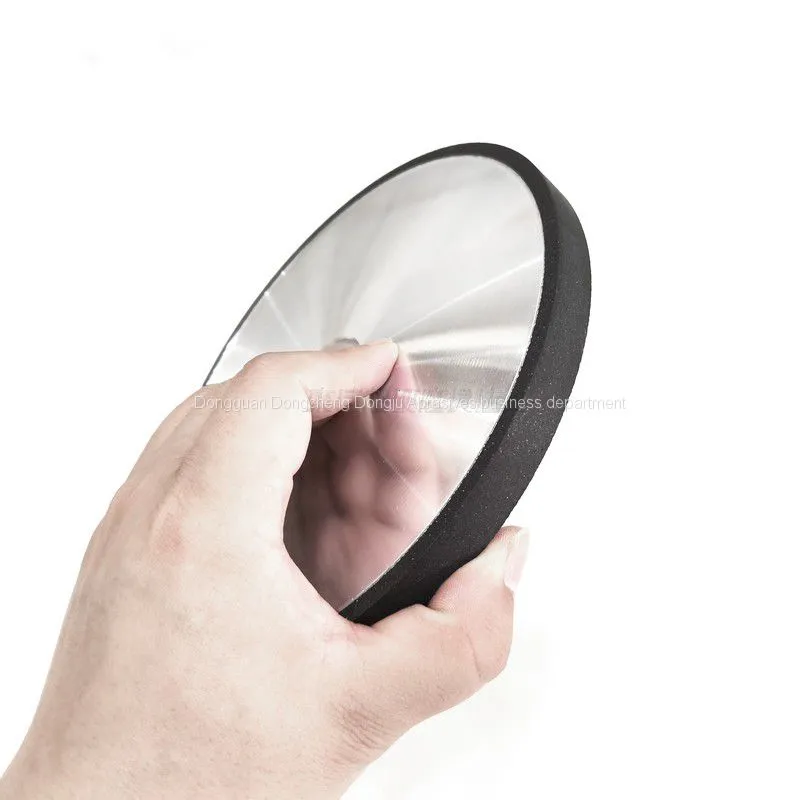

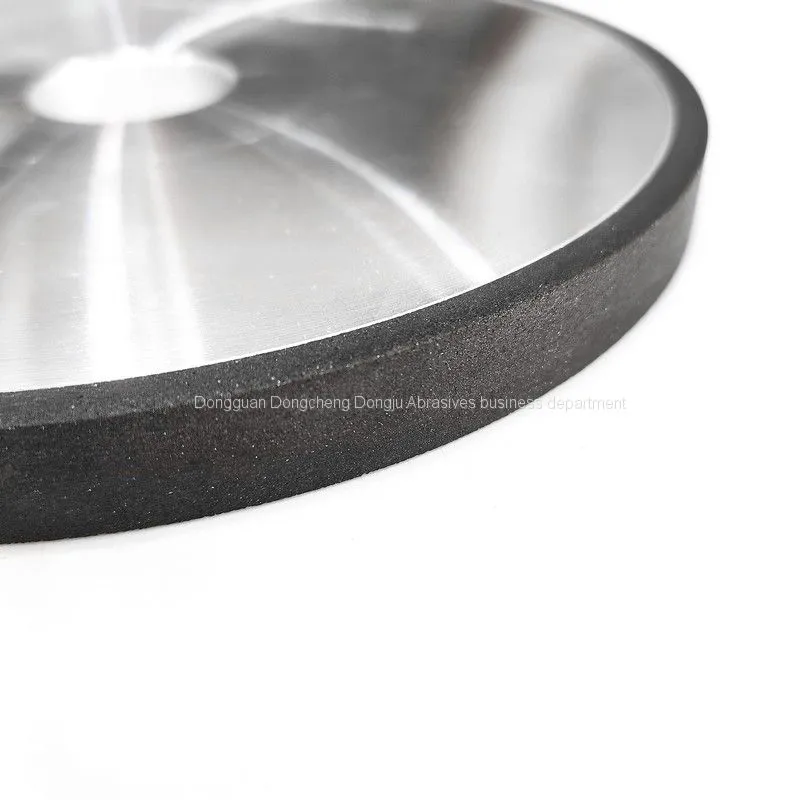

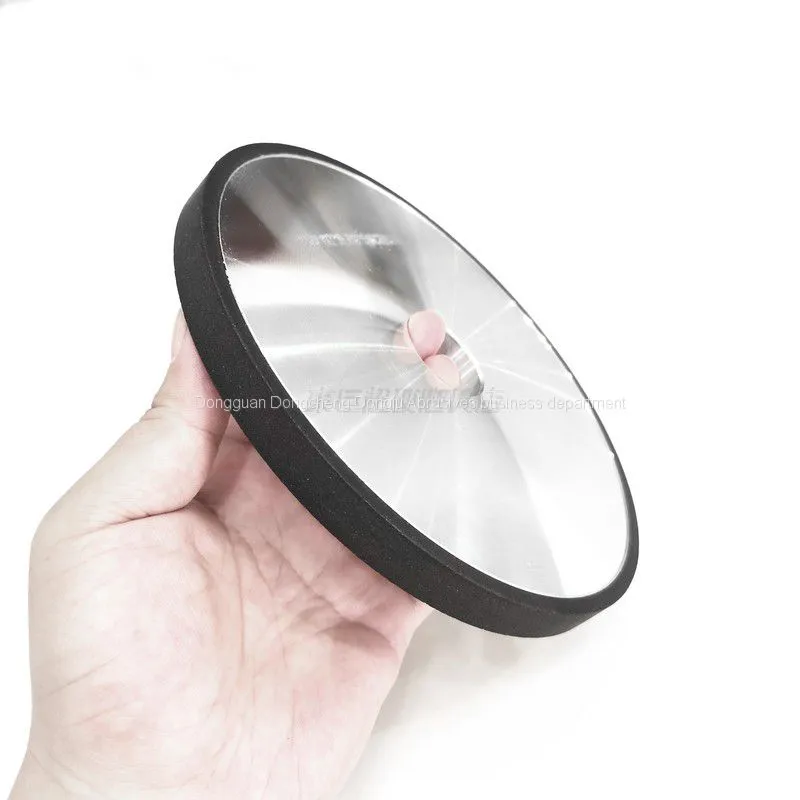

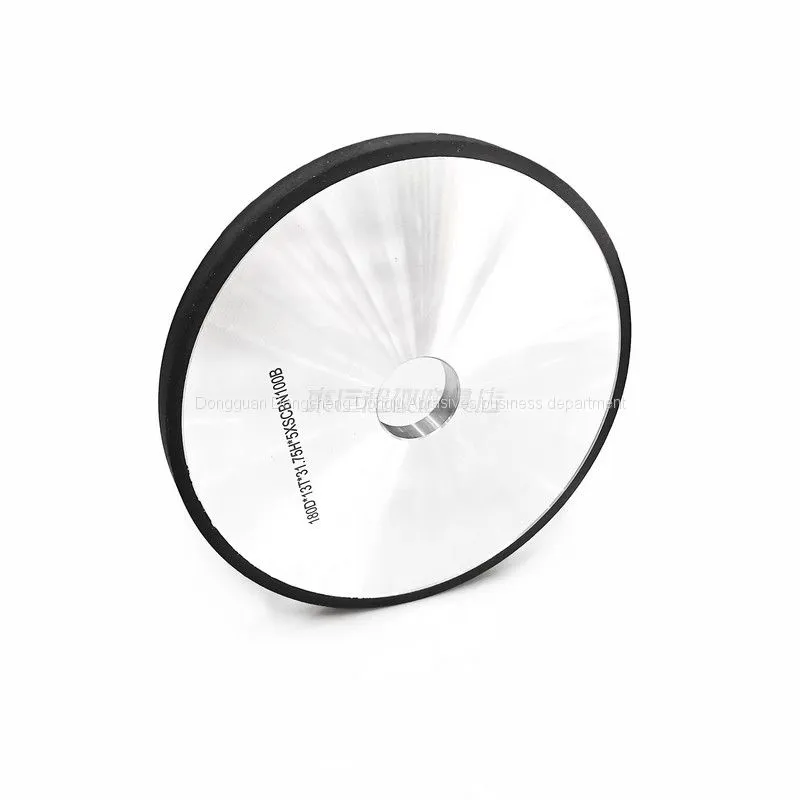

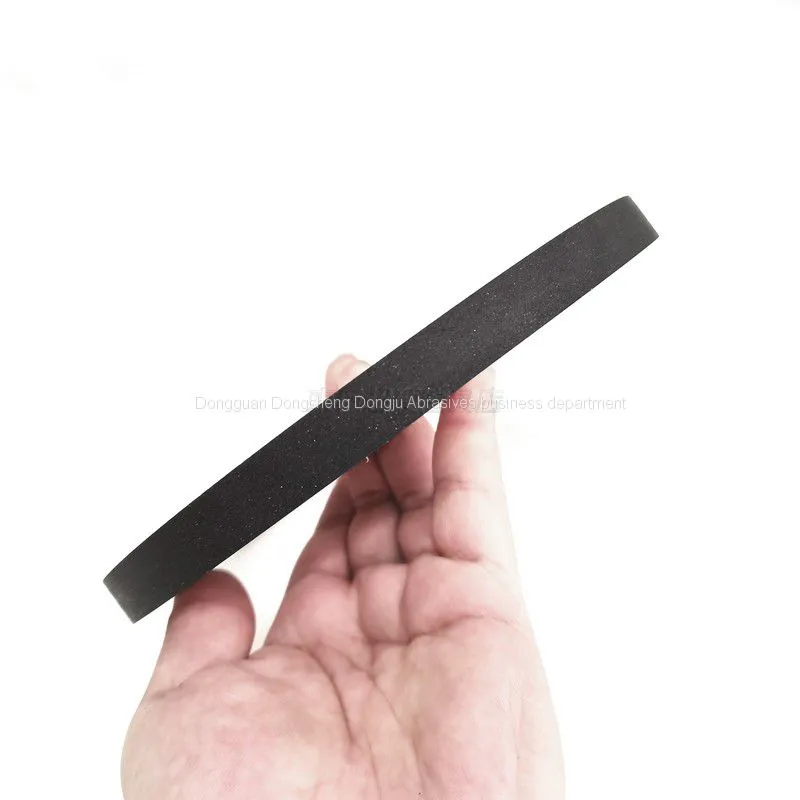

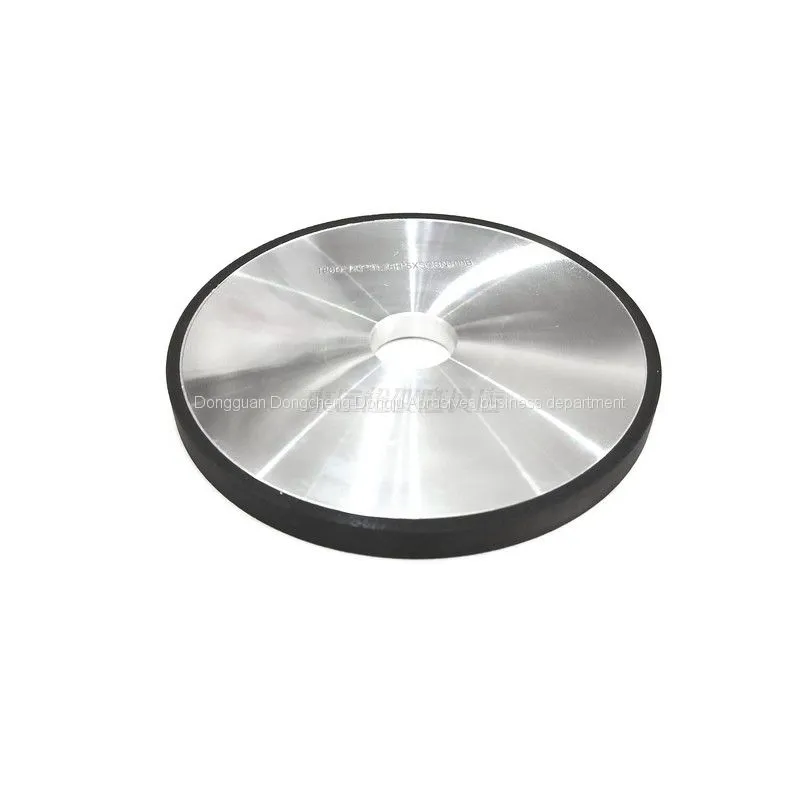

Brand: Dongju
Model: 1A1
Abrasive: cubic Boron nitride
Category: Resin binder
Base material: aluminum alloy
Weight: 1500g
Diameter: 180mm
Width: 13mm
Wall thickness: 5mm
Inner diameter: 31.75mm
Abrasive ring width: 5mm
Particle size: 100#

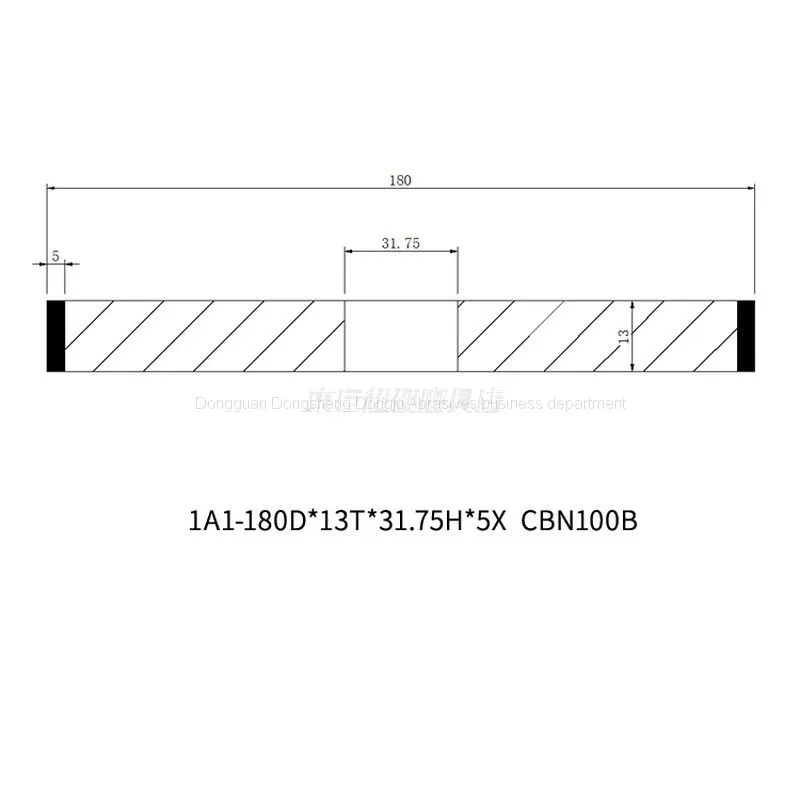

Specification: 180D * 13T * 31.75H * 5X CBN100B
Functional use: Grinding fine parts made of mold steel, heat-resistant steel, and high hardness alloy steel
Customization: Yes
Imported or not: No
Origin: Dongguan
Precautions: Do not grind hard alloy and non-metallic hard materials for cube Boron nitride
