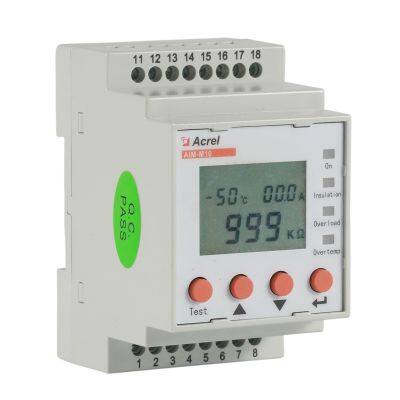

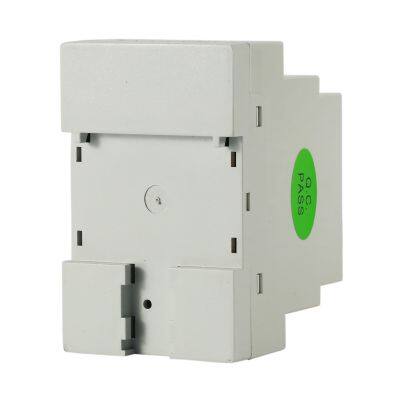

Acrel Medical IT Insulation Monitor AIM-M10 With Rich Display and Alarm Indication Functions Friendly Interface Easy Operation
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AIM-M100 Hospita IT Insulation Monitor Dedicated to Medical IT Systems Alarm in Time When Failure Occurs, Easy to OperateNegotiableMOQ: 1 Piece -
Acrel Hospital IT Insulation Monitor Has Rich Display and Alarm Indication Functions Friendly Interface and Easy OperationNegotiableMOQ: 1 Piece
-
Acrel AID10 Alarm and Display Instrument Installed Next to the Information Control Panel in the Operating or Intensive Care RoomNegotiableMOQ: 1 Piece
-
Acrel AID150 Medical Digital Centralized Alarm Insulation Display Instrument Indicator Device for Hospital Operating RoomNegotiableMOQ: 1 Piece
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load FactorNegotiableMOQ: 1 Piece
AIM-M10 medical intelligent insulationmonitoring instrument adopts advancedmicrocontroller technology, which has highintegration, compact size, convenient installationand integrates intelligence, digitalization andnetworking in one. lt is ideal selection forinsulation monitoring of isolation power systemin Class 2 medical locations such as operatingroom and intensive care unit.

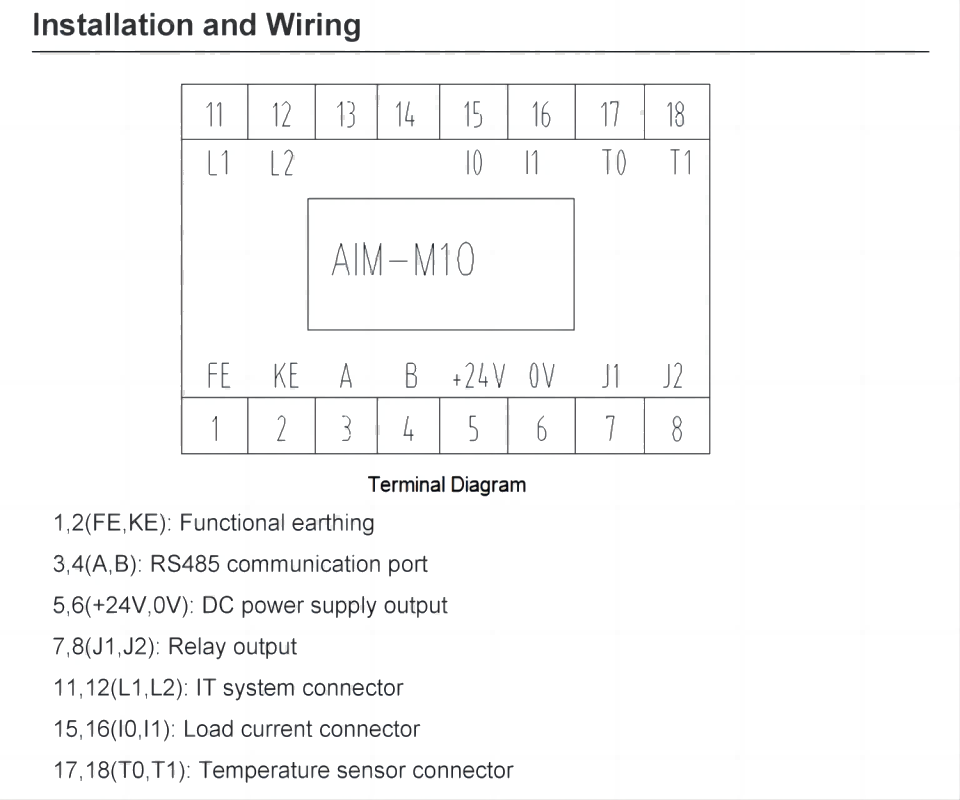

AIM-M10 is usually combined with AITRseries medical isolation transformerAKH-0.66P26 current transformer andAID10/150 centralized alarm display device
Parameters/Model | AIM-M10 | AIM-M100 | AIM-M200 | |
Auxiliary power | Voltage | AC220V(±10%) | DC24V(±25%) | |
Frequency | 50/60Hz | — | ||
Power consumption | <5VA | <8VA | <3VA | |
Insulation monitoring | Insulation resistance measurement range | 10~999kΩ | ||
Accuracy | 0~±10% | |||
Alarm value range | 50~999kΩ | |||
Response time | <2s | |||
Measuring voltage | <12V | |||
Measuring current | <50uA | |||
Current Monitoring | Measurement value | 2.1~50A | ||
Alarm value range | 5~50A | |||
Accuracy | 5% | |||
Display method | Value display | Percentage display | Value and percentage display | |
Temperature Monitoring | Sensor | PT100 | ||
Measuring range | -50~+200℃ | |||
Alarm value range | 0~+200℃ | |||
Power output | 24VDC | 2W | None | |
Alarm Output | Output | 1 relay | 2 relay(programmable) | 2 relay (not programmable) |
Contact Capacity | AC 250V/3A DC 30V/3A | |||
Communications | 1 RS485 , Modbus-RTU | 2 RS485 , Modbus-RTU | 1 RS485, Modbus-RTU | |
1 CAN, custom protocol | ||||
Environment | Operating temperature | -10~+50℃ | ||
Storage temperature | -20~+70℃ | |||
Relative humidity | 5%-95%,No condensation | |||
Altitude | ≤2500m | |||
Rated impulse voltage / pollution degree | 4KV/3 | |||
EMC & EMR | IEC61326-2-4 | |||
