Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load Factor
- T/T
You May Like
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load Factor
-
Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
-
Acrel AIM-T300 Insulation Monitoring Device Multiple Fault Indication Function Mainly Used in IT Power Distribution Systems in i
-
Acrel Industrial Isolated Monitoring Device AIM-T500 With Fault Alarm and Early Warning Functions SOE Event Recording
-
Acrel Residual Current Transformer AKH-0.66/L L-45 Rated Current 16-100A Applied to Residual Current Signal Collection
-
Acrel Residual Current Transformer AKH-0.66/L L-200 Rated Current 800-1500A Applied to Residual Current Signal Collection
Product Description

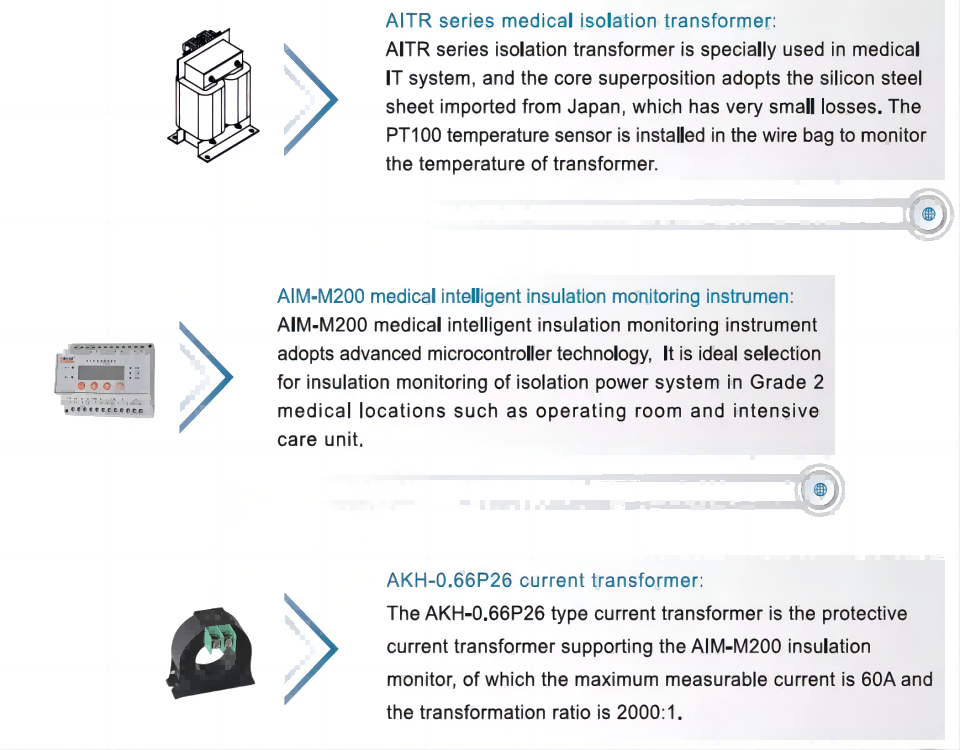

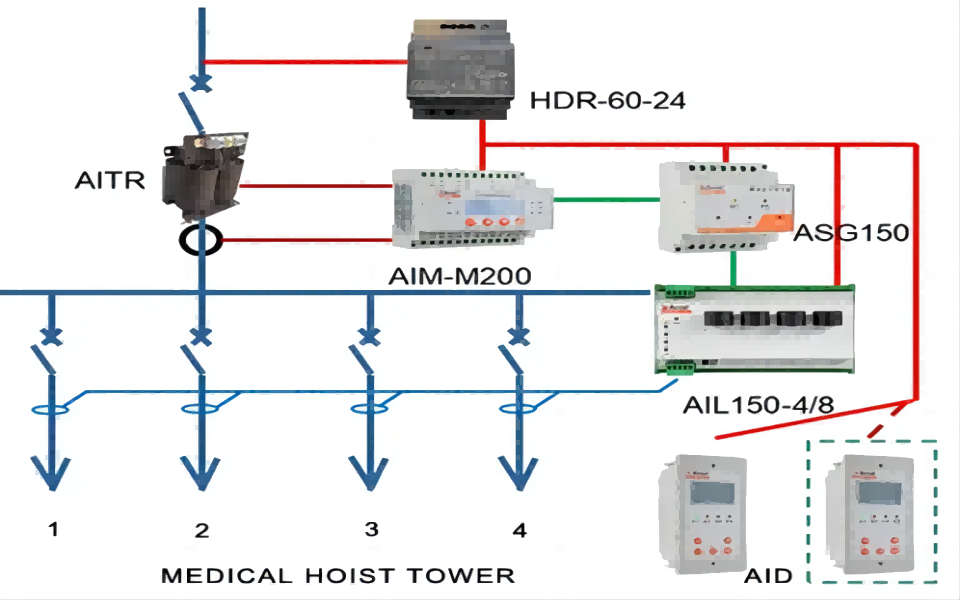

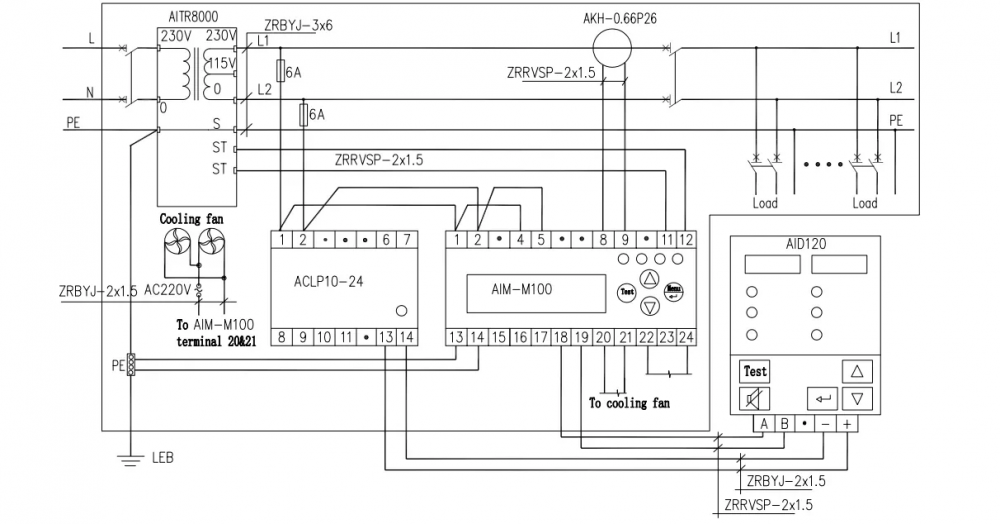

Medical IT systems are primarily used in critical medical 2 locations such as operating rooms, ICU/CCU intensive care units to provide safe, reliable, and continuous distribution of critical equipment in these locations. Medical insulation monitoring products are developed by Acrel according to the special requirements of insulation resistance of distribution system in medical 2 type places with many years of design experience in the power meter industry. It can be used for isolating power system in various operating rooms and intensive care units in medical places, realizing real-time monitoring of system insulation, load, isolation transformer temperature and other operating conditions, as well as remote monitoring. Products comply with the enterprise standard Q31/0114000129C013-2016 IT System Insulation Monitor provisions. Insulation monitoring products of medical IT system (5-piece set) include AITR series medical isolation transformer, AIM-M100 medical intelligent insulation monitor, AKH-0.66P26 current transformer, ACLP10-24 dc power module and AID series (AID120, AID150) external alarm and display instrument, etc.

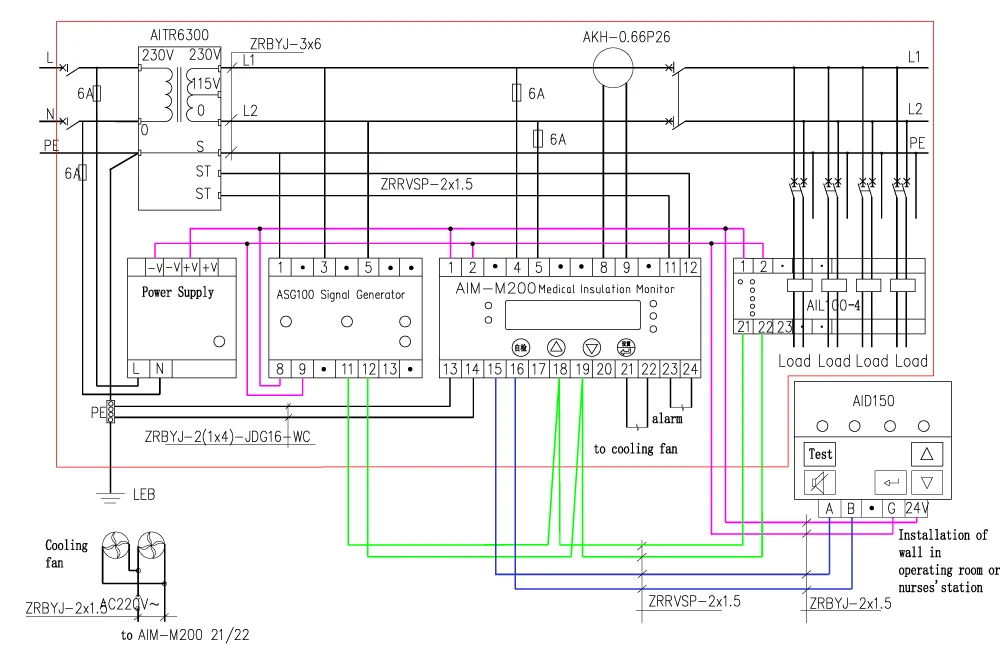

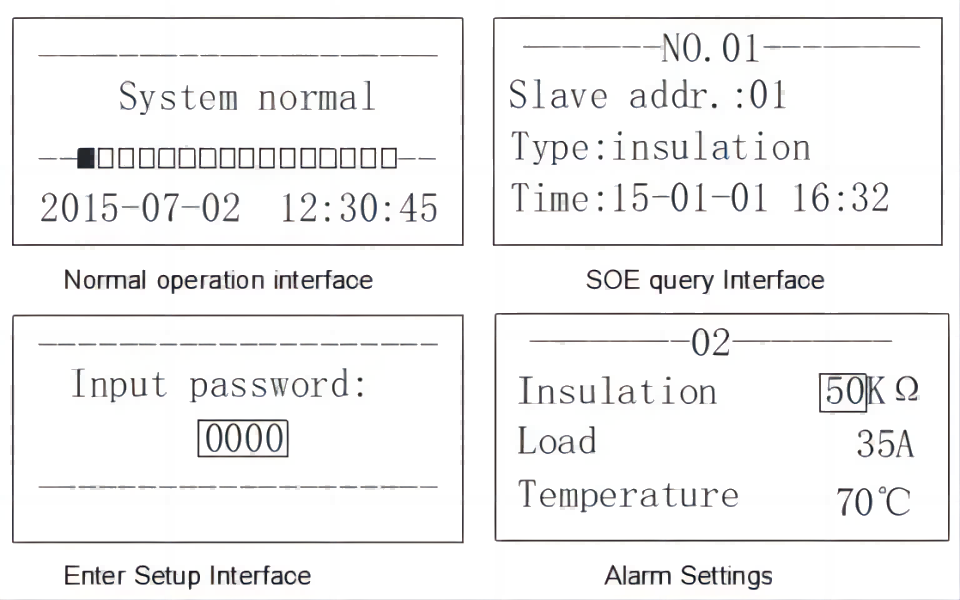

LCD display, RS485 bus, centralized monitoring of up to 16 SETS of AIM-M100 medical intelligent insulation monitor data, sound and light alarm can be remote. The AID150 can also monitor data from multiple AIM-R100 residual current monitors.
