Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel AID150 Medical Digital Centralized Alarm Insulation Display Instrument Indicator Device for Hospital Operating Room

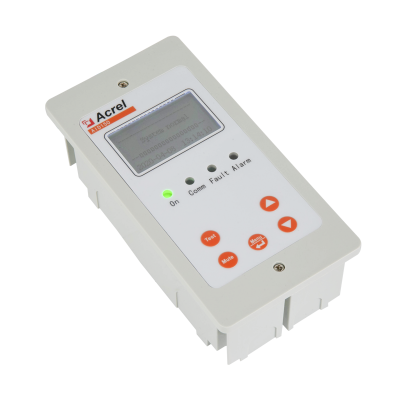

Acrel AID150 Medical Digital Centralized Alarm Insulation Display Instrument Indicator Device for Hospital Operating Room
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load FactorNegotiableMOQ: 1 Piece -
Acrel Alarm and Display Instrument AID120 With Real-time Display Function of Insulation Resistance and Transformer Load FactorNegotiableMOQ: 1 Piece
-
Acrel AIM-T300 Insulation Monitoring Device Multiple Fault Indication Function Mainly Used in IT Power Distribution Systems in iNegotiableMOQ: 1 Piece
-
Acrel Industrial Isolated Monitoring Device AIM-T500 With Fault Alarm and Early Warning Functions SOE Event RecordingNegotiableMOQ: 1 Piece
-
Acrel AIL150-4 Insulation Fault Locator Accurately Locate the Circuit Where the Insulation Fault is LocatedNegotiableMOQ: 1 Piece
AID series alarm and display device is a remote display and sound and light alarm device by using advanced fieldbus communications technology. The device can be installed on the operating room or ICU, the medical staff can easily know the status of medical isolated power systems, and the type of fault when the system fails.
-The insulation resistance alarm value, load current alarm value and transformer temperature alarm value of the system can be set remotely. -When the system appears insulation fault, overload, transformer temperature over limit and wiring fault, alarm and display instrument gives out the corresponding sound and light alarm, and has the function of eliminating sound alarm. -Using advanced fieldbus technology, the remote monitoring function can be realized by real-time data interaction with the insulation monitor.
Parameter/Model |
AID10 |
AID120 |
AID150 |
AID200 |
|
Auxiliary power |
Voltage |
DC 24V |
|||
Power consumption |
＜0.6W |
||||
Insulation resistance measurement range |
0-999kΩ |
/ |
|||
Insulation alarm value range |
50-999kΩ |
/ |
|||
Transformer load rate display |
Percentage display |
/ |
|||
Load current alarm settings |
14A、18A、22A、28A、35A、45A |
||||
Temperature alarm value range |
0~+200℃ |
||||
Alarm |
Sound and light alarm |
||||
Alarm type |
Insulation fault, overload, over-temperature, equipment failure |
||||
Communication |
RS485 interface, MODBUS-RTU protocol |
CAN interface, a custom protocol |
|||
Display method |
LED display |
128*32 LCD |
|||
