Acrel Industrial Isolated Monitoring Device AIM-T500 With Fault Alarm and Early Warning Functions SOE Event Recording
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T
You May Like
-
Acrel Residual Current Transformer AKH-0.66/L L-45 Rated Current 16-100A Applied to Residual Current Signal Collection
-
Acrel Residual Current Transformer AKH-0.66/L L-200 Rated Current 800-1500A Applied to Residual Current Signal Collection
-
Acrelmeasurement Current Transformer AKH-0.66/L L-80 Rated Current 100-250A Applied to Residual Current Signal Collection
-
Acrel Measuring Rated Current 250-400A Low Voltage Leakeage CT Residual Current Transformer AKH-0.66/L L-100
-
Acrel Leakage Current Transformer AKH-0.66/L L-150 Rated Current 400-800A Applied to Residual Current Signal Collection
-
ADL300-EY Three Phase Prepaid Electric Energy Meter With Rs485 4 Tariff Rates 35mm Din Rail 3*1(6)A/10(80)A Current Input
Product Description

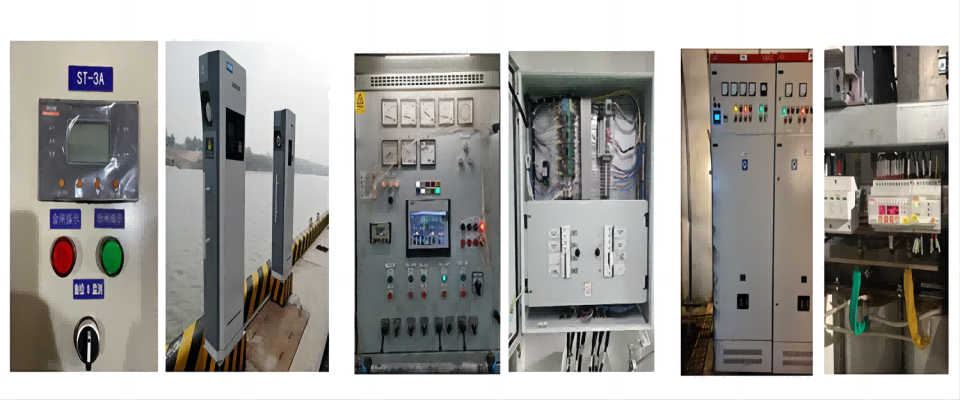

AIM-T500 insulation monitoring device is designed and developed by Acrel gathering the design experience of electric power meter industry for many years to monitor the insulation condition of low voltage IT distribution system (ungrounded system). The product adopts advanced micro controller technology, with high degree of integration, compact size and easy installation, and it integrates intelligence, digitalization and networking. The device, with many functions such as insulation fault warning, fault alarm, event recording and so on, can be used in the mines, glass factories, electric furnaces and test facilities, metallurgical plants, chemical plants, and exploded dangerous places, computer center, emergency power supply and other places to monitor the insulation status of IT system in real time. When insulation fault occurs, it will alarm and remind the staff to check the fault.
The products conform to the requirements of enterprise standard Q/VDCL-26-2017 IT System Insulation Monitor.
Items | Value | |
Accessory power supply | AC85~265V; DC100~300V；50/60Hz | |
Power dissipation | ＜8W | |
System voltage | AC0~690V; DC 0~800V; 40~460Hz | |
System application | IT system (online), Other system (offline) | |
Insulation monitoring | Measuring range | 1k~10MΩ |
Alarm range | 10k~10MΩ | |
Resistance accuracy | 1~10k,1k; 10k~10M, ±10% | |
System leakage capacitance | <500μF | |
Response time (Ce=1μF) | <5s | |
Internal parameters | Measuring voltage | <50V |
Measuring current | <270μA | |
Internal DC impedance | ≥180kΩ | |
Relay output | Error, Alarm, Warning | |
SOE | 20 records (fault type, fault value, fault time) | |
Alarm type | LCD, LED indicator | |
Communication | RS485, Modbus-RTU | |
Impulse voltage / Pollution Level | 8kV/Ⅲ | |
EMC/ Radiation | IEC61326-2-4 | |
Environment | Working temperature | -10 ~+65℃ |
Storage temperature | -20~+70℃ | |
Relative humidity | <95%, without condensation | |
Altitude | ≤2500m | |
